Item#

ETR-001D2  *Pre-order required

Description

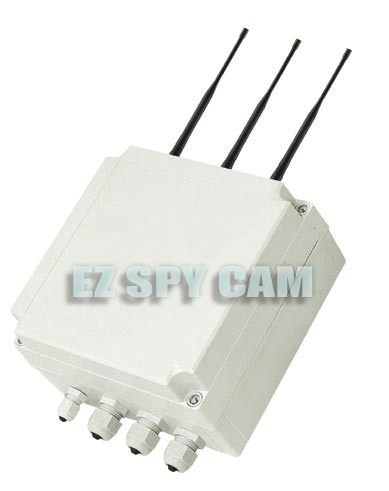

Super Long Range Mobile Dual Diversity 2.4GHz Wireless Video Link System

Operating Frequency:

Dual Diversity 2.40GHz - 2.48GHz @ 10MHz Bandwidth

Frequency Control:

Automatic Channel Selection

Protocol:

802.11 a / g

Modulation Format:

OFDM (BPSK, QPSK, 16QAM, 64QAM)

Security Authentication System:

Private SSID 64 Bit Encrypted Data Stream (WEP) Optional 128 Bit

Data Rate:

6 mbps - 54 mbps

Latency:

Less than 0.5 sec

Video Compression Format:

Hardware Based MPEG-4

Frame Rate:

30fps NTSC / 25fps PAL

Video Resolution:

720 x 480 NTSC / 720 x 576 PAL

Radiated Power:

450mW

Range:

2 miles @ 25ft Elevation

Antenna Type:

6 x 3dBi External Omni-Directional

E Plane Beam Width:

50 Degrees

H Plane Beam Width:

360 Degrees

Receiver Sensitivity:

54 mbps @ -72dBm to 6 mbps @ -90dBm

Video Connector:

BNC Male 75 OHMS @ 1 Volt Peak-to-Peak

Stereo Audio Connector:

BNC Male 600 OHMS @ 1 Volt Peak-to-Peak

Temperature Range:

-40°F to +160°F

Power Supply Included:

Switching 12VDC @ 2 Amps - CEC Class IV

Current Consumption:

0.8 Amps

Operating Voltage:

12 - 30 Volts AC or DC

Surge Protection:

ESD Surge / Lightning Protected up to 1,500 Watts

Enclosures:

Rugged IP-67 Rated All Weather Enclosure

Mounting Brackets Included:

Two Universal Wall / Pole Mount

Dimensions:

7.0" x 7.0" x 4.5" Each Enclosure

Construction:

Rugged IP-67 rated all-weather enclosure

Weight of each Tx / Rx Unit:

Apprx. 2.5lbs

Packaged Weight:

5kg or 11lbs

FCC / IC Approved:

License Free - Professional Installation

Warranty:

One Year Limited Warranty

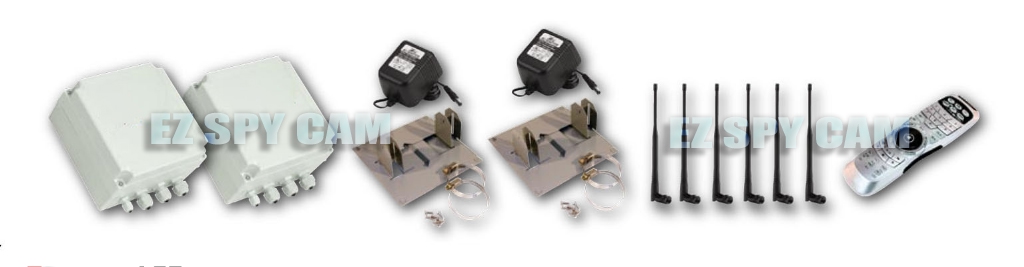

Parts Includes

ALL WEATHER TRANSMITTER, ALL WEATHER RECEIVER, 25’ POWER / VIDEO CABLE, SIX RUBBER DUCK ANTENNAS, THREE POWER SUPPLIES, TWO UNIVERSAL MOUNTING BRACKETS, REMOTE CONTROL, CORNER MOUNT VANDAL-PROOF CAMERA, OPERATING INSTRUCTIONS, ONE YEAR LIMITED WARRANTY
