50 mile Range 2.4GHZ Wireless Video Link System for Fixed Applications

This series of Fixed RT-Wave systems delivers license-free encrypted wireless digital video with a
range up to 50 Miles line-of-sight. Perfect for remote building-to-building links, overhead crane monitoring, etc.

Revolutionary pre-configured plug & play design / Transmits Real-Time DVD quality video
Digital immunity to signal interference / Lightning fast hardware based MPEG-4 encoder & decoder
No maintenance or inspections required / Deters vandalism, trespassing & other criminal behavior
No connections to the elevator mechanics or traveling cable / FCC & IC approved for license free use
Industry leading 5-tier input power management system / 64 Bit encrypted data stream (optional 128 bit)
Automatic system pairing and on screen status display / Easily identify employees, residents, and visitors

Interference Free, Pre-configured, Plug-n-Play, Convenient remote control for OSD Configuration



click to enlarge...



click to enlarge...

Our Price $500 off >

US$3,790.00

Regular Price >

US$4,290.00

General Specification

Item#

ETR-001F050  *Pre-order required

Description

50 mile Range 2.4GHz 450mW Wireless Fixed Video Link System
w/
2 x 15dBi External Directional Antennas

Operating Frequency:

Single Radio 2.40GHz - 2.48GHz @ 10MHz Bandwidth

Interference Control:

Hopping technology allows to change the bandwidth automatically when same bandwidth interferes

Frequency Control:

Automatic Channel Selection

Protocol:

802.11 a / g

Modulation Format:

OFDM (BPSK, QPSK, 16QAM, 64QAM)

Security Authentication System:

Private SSID 64 Bit Encrypted Data Stream (WEP) Optional 128 Bit

Data Rate:

6 mbps - 54 mbps

Latency:

Less than 0.5 sec

Video Compression Format:

Hardware Based MPEG-4

Frame Rate:

30fps NTSC / 25fps PAL

Video Resolution:

720 x 480 NTSC / 720 x 576 PAL

Radiated Power:

450mW

Range:

1 mile @ 15ft Elevation / 5 mile @ 25ft Elevation / 50 mile @ 420ft Elevation

Antenna Dimensions:

10" x 8"

E Plane Beam Width:

32 Degrees

H Plane Beam Width:

32 Degrees

Receiver Sensitivity:

54 mbps @ -72dBm to 6 mbps @ -90dBm

Video Connector:

BNC Male 75 OHMS @ 1 Volt Peak-to-Peak

Stereo Audio Connector:

BNC Male 600 OHMS @ 1 Volt Peak-to-Peak

Temperature Range:

-40F to +160F

Power Supply Included:

Switching 12VDC @ 2 Amps - CEC Class IV

Current Consumption:

0.8 Amps

Operating Voltage:

12 - 30 Volts AC or DC

Surge Protection:

ESD Surge / Lightning Protected up to 1,500 Watts

Enclosures:

Rugged IP-67 Rated All Weather Enclosure

Mounting Brackets Included:

Two Universal Wall / Pole Mount

Dimensions of TxRx Unit

7.0" x 7.0" x 4.5" Each Enclosure

Dimensions of Antenna

9.6"x8.5"x2.2" Each Antenna

Construction:

Rugged IP-67 rated all-weather enclosure

Weight of each Tx / Rx Unit:

Apprx. 2.5lbs

Packaged Weight:

20 lbs

FCC / IC Approved:

License Free - Professional Installation

Warranty:

One Year Limited Warranty

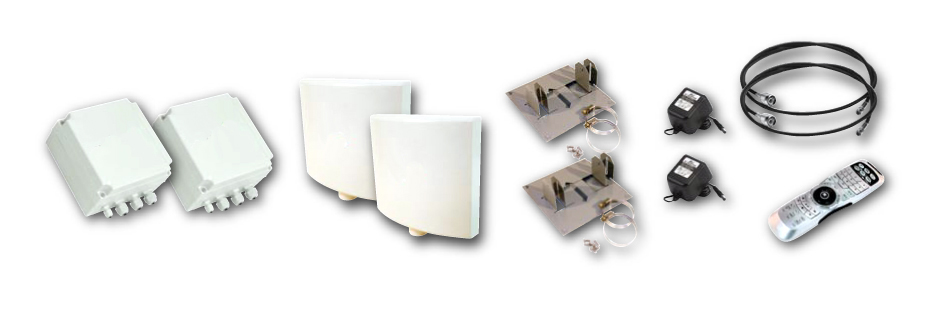

Parts Includes

ALL WEATHER TRANSMITTER & Receiver, Two POWER SUPPLIES, TWO UNIVERSAL MOUNTING BRACKETS, Two 15dB External Antennas, Two 6ft Low Loss Microwave Antenna Cables, REMOTE CONTROL,  OPERATING INSTRUCTIONS, ONE YEAR LIMITED WARRANTY
