Ocean Drop All-Purpose Underwater Video Camera w/ Ultra High Video Resolution

Ideal to view unreachable impossible-to-see total-dark and large viewing areas
OK for Saltwater Environments & Professional Marine Life Observation Video

Underwater Athletic Movement, Boat Inspection, Check anchor set, Marine Life observation
Bridge & Dam inspection, Tank inspection, Docks & pier surveillance, Whale Watch, Fish Search
Search & Rescue, Inspect & Monitor Swimming Pool, Swamps, river, & lake watch, Boat inspection
Underwater farm surveillance, Create videos of Underwater Actions, Check crab pots & lobster traps
Exploring shipwreck & submerged objects, Discover treasure, Cave search, Rain forest watch, Storm Watch

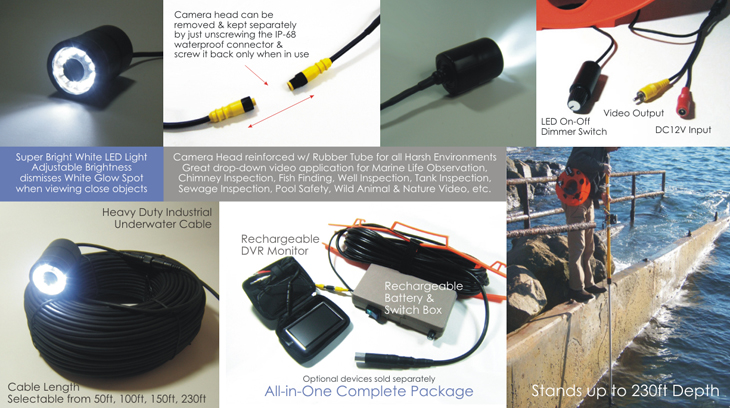

LED Brightness Control dismisses all white glow spots when viewing close objects

click to enlarge...

Easy detachable Camera Head from Cable offers you Convenient & Secure Mobility



Choose one from the dropdown option box below, then click "Add to Cart" button to check out

Unit
Price
"Review more details about optional devices listed at the bottom of this page"



Item#

EUC-1015  ---Stock to built-in house & ships out within 3~7 working days---

Description

Ocean Drop Underwater Video Camera on 50ft Cable

Item#

EUC-1030  ---Stock to built-in house & ships out within 3~7 working days---

Description

Ocean Drop Underwater Video Camera on 100ft Cable

Item#

EUC-1045   ---Stock to built-in house & ships out within 3~7 working days---

Description

Ocean Drop Underwater Video Camera on 150ft Cable

Item#

ENC-1015M4P1   ---Stock to built-in house & ships out within 3~7 working days---

Description

Ocean Drop Underwater Video Camera on 50ft Cable w/ Complete Option of Standard Video Recording Monitor & Rechargeable Battery Kit

Item#

ENC-1030M4P1   ---Stock to built-in house & ships out within 3~7 working days---

Description

Ocean Drop Underwater Video Camera on 100ft Cable w/ Complete Option of Standard Video Recording Monitor & Rechargeable Battery Kit

Item#

ENC-1045M4P1   ---Stock to built-in house & ships out within 3~7 working days---

Description

Ocean Drop Underwater Video Camera on 150ft Cable & w/ Complete Option of Standard Video Recording Monitor & Rechargeable Battery Kit

Specification:

Image Sensor

OEM 1/3" Color Sensor

Lens

Default 3.6mm Board Lens (FOV: - 92 Diagonally)

Other narrower or wider viewing angle lens is available upon a request w/ customization fee

Max. Depth

Maximum depth can be submerged vertically up to 230ft (70M)

Signal System

NTSC

Camera Compatibility

Compatible with any conventional TV, monitor, or DVR system that equipped with a composite video-in connector and requires a analog to digital converter when viewing through PC or laptop that is not equipped with a built-in TV or video capture card.

Power up the camera and plug the camera video cable into an available video-in connector on your TV, monitor, or DVR system, you will see the incoming live video instantly and only requires a proper connector if cable connectors do not fit together.

Luminance S/N Ratio

Over 50dB (AGC off)

Gamma Correction

r = 0.45

Electronic Shutter

1/60~1/100,000/Sec

Special Functions

Auto White Balance (AWB) / Auto Backlight Correction (BLC)

LED

12 Bright White LEDs "Brightness adjustable & Turned On-Off w/ Built-in Dimmer Switch"

LED Beam Distance

Appx. 50 ~ 60ft in the air and  total darkness when LEDs are turned on @ Max. level

Lens Foucs

Appx. 3 inches from the camera lens to infinity

Click the right photos to view Real Video Clips

Bridge Inspection Video...<<< Camera unit assembled on the ENC-135 telescopic pole video system and conducted the under bridge video inspection that recorded with EMT-600 portable DVR monitor

Attic Inspection Video...<<< Camera unit assembled on the ENC-135 telescopic pole video system and conducted the crawl attic video inspection that recorded with EMT-600 portable DVR monitor

click to play YouTube video clip...<<< Viewed the shore rocks that are 20~60ft away from the camera lens at night to show how the built-in white LED light sees objects in the dark and recorded with the EMT-600 handheld DVR monitor.

click to view real video clip...<<< Camera unit assembled on the ENC-135 telescopic pole video system and observed a school of Opaleye fish at dawn with EMT-600 portable DVR monitor attached on a pole.

click to view live video...<<< Camera unit assembled on the ENC-135 telescopic pole video system and conducted the rooftop video inspection that recorded with EMT-600 portable DVR monitor

Video Resolution

600 TVL (410K pixel)

Video Connector

RCA Plug

Power Consumption

120mA when LED off ~ 220mA w/ Max. LED Brightness

Minimum Illumination

0.1 LUX when LED off

Cable

Industrial Specification Poly Urethane Insulated

Cable Length

Selectable from 50ft ~ 500ft, or Customized Special Length on request

Camera Housing

Aluminum Anodized in Black w/ Rubber Coating Protected

Dimension / Weight

50 x L65mm (1.97 x 2.56) & 8.8oz (250g)

Operating Temp.

-10C ~ 50C (14F ~ 122F)

Storage Temp.

-20C ~ 60C

Housing IP Rate

IP-68 (Dust tight & Protected against continuous immersion in water, or specified by the user)

Warranty

One Year Full Warranty including Parts & Labor

Parts Includes

Underwater Camera w/ Selected Cable Length, AC/DC 12V Power Adapter, 2-way DC Power Splitter, Quick Starter Guide, Video Recording Monitor w/ Detachable Sunshade & Camera Rechargeable Battery Kit when ordered optionally

Details of Standard Optional Devices

* 16hr Capacity at LED Light-on in continuous use
*
Rechargeable NiMH DC 12V Battery Kit
* Auto Control Universal 7~12V Smart Charger included
* Click here to review more product details

* Standard Rechargeable Video Recording DVR Monitor
* 5" LCD Screen & 720 x 576 @ 30fps Video Recording Resolution
* All functions controlled manually pressing control buttons
* Long Battery Capacity Built-in 3.7V Rechargeable Battery
* 4GB Micro SD Card included and supports up to 32GB
* Click here to review
more product details

Details of Upgradeable Optional Devices   *** Request for Quote separately ***

* Touch Screen Remote Control Video Recording & Still Photo Shooting DVR Monitor
* 3.6" LCD Screen & 720
x480@16fps or 640480@30fps Video Recording Resolution
* Still Photo Shooting @ 640x480 pixels
* All functions controlled via Touch Screen menu or included Remote Control Unit
* Motion Activated or Manual recording & Date Time Stamp
* 8GB SD Card included & supports up to 32GB or Built-in 160GB Micro HDD for
   Extensive Long video recording.
* Click here to review
more product details

click to enlarge...

* Detachable IP-68 & NEMA 6P In-line Waterproof Cable Connector
* Easily plugged in and out & screwed to tighten and separate
* For an application where requires installing the cable through narrow cramped space &
   the camera head at the end
* For an application where your system installed in the public accessible area & not safe to
   leave the expensive camera head unattended
* For an application where your system involved with the constant rough mobile
   environment & requires the camera head to protected separately in order to prevent a
   mechanical damage
