Flex-Head Penny Size Pipeline Inspection Camera w/ White or IR LED Light

Ideal to view unreachable impossible-to-see total-dark inside Narrow pipe & Crawlspace

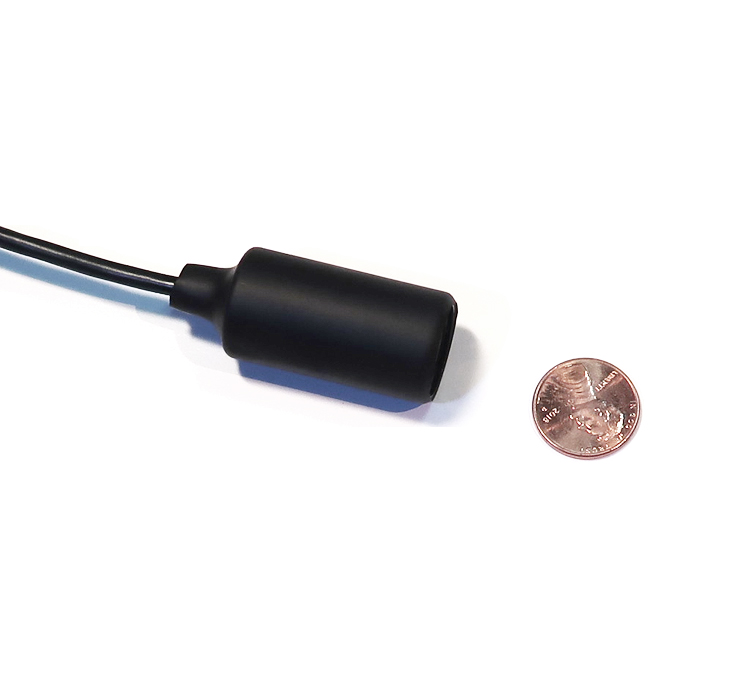

Industrial inspection & Micro slim camera head sizes only 20mm in diameter

Underwater Athletic Movement, Boat Inspection, Check anchor set, Marine Life observation
Bridge & Dam inspection, Tank inspection, Docks & pier surveillance, Whale Watch, Fish Search
Search & Rescue, Inspect & Monitor Swimming Pool, Swamps, river, & lake watch, Boat inspection
Underwater farm surveillance, Create videos of Underwater Actions, Check crab pots & lobster traps
Exploring shipwreck & submerged objects, Discover treasure, Cave search, Rain forest watch, Storm Watch

Best for viewing inside Bent Pipeline even in 90 degree turned Pipe in 1.5" diameter

pipe inspection underwater camera

Thin Cable for Drop-down & Thick Cable for Push-in Sideward Application

Latest Anti-reflection Technology stops all Haze, Washed-out, & Halo effects of LED Light



Choose one from the dropdown option box below, then click "Add to Cart" button to check out

Unit
Price



Item#

EUC-2015M-SW  ---Stock to built-in house & ships out within 3~10 working days---

Description

Flexi-Head Penny Size Pipeline Inspection Camera w/ White LED on 50ft Thin Cable

Item#

EUC-2015M-TW  ---Stock to built-in house & ships out within 3~10 working days---

Description

Flexi-Head Penny Size Pipeline Inspection Camera w/ White LED on 50ft Thick Cable

Item#

EUC-2015M-S9R  ---Stock to built-in house & ships out within 3~10 working days---

Description

Flexi-Head Penny Size Pipeline Inspection Camera w/ 940nm IR LED on 50ft Thin Cable

Item#

EUC-2015M-T9R  ---Stock to built-in house & ships out within 3~10 working days---

Description

Flexi-Head Penny Size Pipeline Inspection Camera w/ 940nm IR LED on 50ft Thick Cable



Specification:  *Subject to change without prior notice

Image Sensor

1/4" CMOS Color

Video Resolution

High 520 TVL

Effective Pixels

728(H) x 576(V) pixels

Lens

0.5mm Micro Board Lend (FOV 90 Diagonally at F1.2)

Vertical Depth

Maximum depth can be submerged vertically up to 230ft

Origin

Assembled in USA & Shipped from USA

Signal System

NTSC (* PAL only available w/ an order quantity over 5 units)

*Most of recent HD monitors & DVR are automatically switches and compatible with both NTSC & PAL system, but it would be more affordable for using a NTSC-to-PAL converter or Analog CCTV Video to VGA converter still necessary to covert between PAL & NTSC video in order to use w/ your old monitor.

Camera Compatibility

Compatible with any conventional TV, monitor, or DVR system that equipped with a composite video-in connector and requires a analog to digital converter when viewing through PC or laptop that is not equipped with a built-in TV or video capture card.

Power up the camera and plug the camera video cable into an available video-in connector on your TV, monitor, or DVR system, you will see the incoming live video instantly and only requires a proper connector if cable connectors do not fit together.

Luminance S/N Ratio

Over 48dB (AGC off)

Gamma Correction

r = 0.45

Electronic Shutter

1/60~1/100,000/Sec

Special Functions

Smart Anti-reflection, E-Day Night, DWDR, AWB, AGC

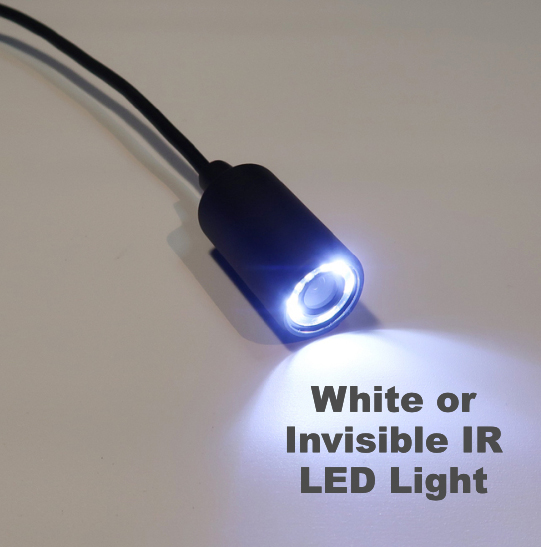

LED Light

* Invisible 940NM or 950NM IR-LED: Shows no red glow on the tip of IR LED when it turned on and the IR light beam is also   completely invisible to human eyes. It is the best for the complete undetected video surveillance and viewing object in close range in the dark.

*
Strong 850NM IR-LED: Shows red glow on the tip of LED when it's on, but the emitting IR-light beam is invisible to human eye and it produces a longer emitting power than the invisible 950NM IR-LED. It is suitable for the undetected surveillance video and viewing objects that are in long range in the dark.

*

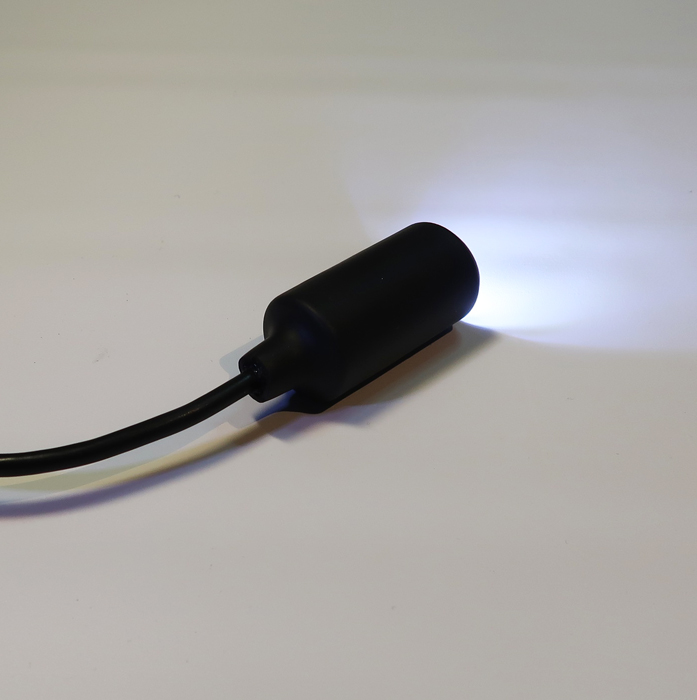

White LED:
The white light beam is seen by human eyes exactly same as what you see from a conventional LED flashlight and it it the best when objects are viewed in color at night as they seen in daylight.

LED Beam Travel Distance in Air

* White LED - Appx. 15ft

* 850NM Strong Infrared LED - Appx. 12ft

* 940NM No Red Glow Infrared LED - Appx. 10ft

Light Control

Auto On-Off w/ IR LED & Manual On-Off w/ White LED
* Brightness adjust dimmer switch is available upon a request w/ Customization fee

Lens Focus

Appx. 3 inches from the camera lens to infinity

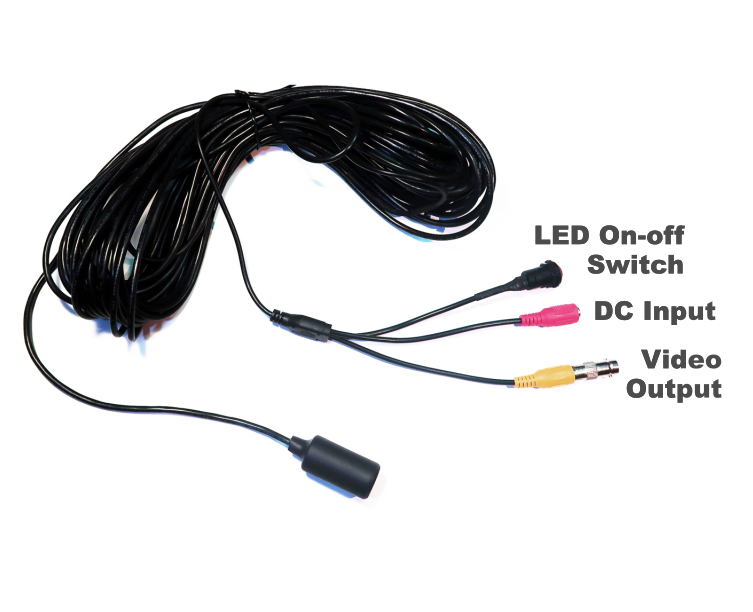

Video Connector

BNC Jack

Power Consumption

DC 12V 100mA @ LED on / DC 5V 260mA @ LED on

Power Input

DC 4V ~ 24V

Minimum Illumination

0.1 LUX @ LED off

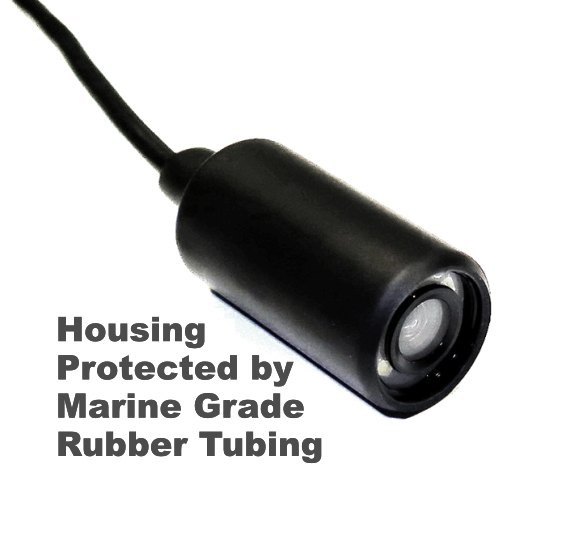

Camera Housing

Aluminum Anodized in Black w/ Heavy Duty Rubber Tube Shielded

Operating Temp.

-10C ~ 50C (14F ~ 122F)

Storage Temp.

-20C ~ 60C

Housing IP Rate

IP-68 (Dust tight & Protected against continuous immersion in water, or specified by the user)

Weight / Dimension

13g (Camera Head only)

Dimension

Camera only --- L78mm x 31mm

Cable

* Dropdown Flexible Thin Cable - Apprx. 4mm

* Push-in Flexible Thick Cable - Apprx.
10mm

Cable Length

Selectable from 50ft, 100ft, 150ft, 250ft, 500ft, or Customized Special Length on request

Warranty

One Year Full Warranty including Parts & Labor

Parts Includes

Underwater Camera w/ Selected Cable Length, AC/DC Power Adapter, Quick Starter Guide, Video Recording Monitor w/ Detachable Sunshade & Camera Rechargeable Battery Kit when ordered optionally.

Optional Devices...

* 24hr Capacity at LED Light-on in continuous use
*
Rechargeable DC 12V Battery Kit
* Auto Control Universal 7~12V Smart Charger included
* Click here to review more product details

* Standard Rechargeable Video Recording DVR Monitor
* 5" LCD Screen & 720 x 576 @ 30fps Video Recording Resolution
* All functions controlled manually pressing control buttons
* Long Battery Capacity Built-in 3.7V Rechargeable Battery
* 4GB Micro SD Card included and supports up to 32GB
* Click here to review
more product details

* Touch Screen Remote Control Video Recording & Still Photo Shooting DVR Monitor
* 3.6" LCD Screen & 720
x480@16fps or 640480@30fps Video Recording Resolution
* Still Photo Shooting @ 640x480 pixels
* All functions controlled via Touch Screen menu or included Remote Control Unit
* Motion Activated or Manual recording & Date Time Stamp
* 8GB SD Card included & supports up to 32GB or Built-in 160GB Micro HDD for
   Extensive Long video recording.
* Click here to review
more product details

* Watertight, Dustproof, Shockproof, Crushproof, Indestructible Equipment Case.
*
Made for professionals or individuals w/ cameras that must have failure proof protection.
* Fit all your equipment including cameras, batteries, lenses, and cables.
* Highly resistant to chemical and built to perform in the most severe conditions.
* Click here to review more product details

click to enlarge...

* Detachable IP-68 & NEMA 6P In-line Waterproof Cable Connector
* Easily plugged in and out & screwed to tighten and separate
* For an application where requires installing the cable through narrow cramped space &
   the camera head at the end
* For an application where your system installed in the public accessible area & not safe to
   leave the expensive camera head unattended
* For an application where your system involved with the constant rough mobile
   environment & requires the camera head to protected separately in order to prevent a
   mechanical damage
