Submarine Deep Ocean Panning Underwater Cam w/ 1,000ft Depth Rate & 2 Camera System

Ideal for Deep Sea Discovery & Ocean Marine Life Documentary Video
OK for Saltwater & Chemical Pool /  Deep Ocean Video in Total Darkness

Underwater Athletic Movement, Boat Inspection, Check anchor set, Marine Life observation
Bridge & Dam inspection, Tank inspection, Docks & pier surveillance, Whale Watch, Fish Search
Search & Rescue, Inspect & Monitor Swimming Pool, Swamps, river, & lake watch, Boat inspection
Underwater farm surveillance, Create videos of Underwater Actions, Check crab pots & lobster traps
Exploring shipwreck & submerged objects, Discover treasure, Cave search, Rain forest watch, Storm Watch

Corrode Free Heavy Duty Camera Housing armored for all harsh environments

1000ft Depth Rate Deep Ocean Video System --- click to enlarge ---

1000ft Depth Rate Deep Sea Video System --- click to enlarge ---

Mil Spec 1000ft Depth Rate Deep Ocean Video System --- click to enlarge ---

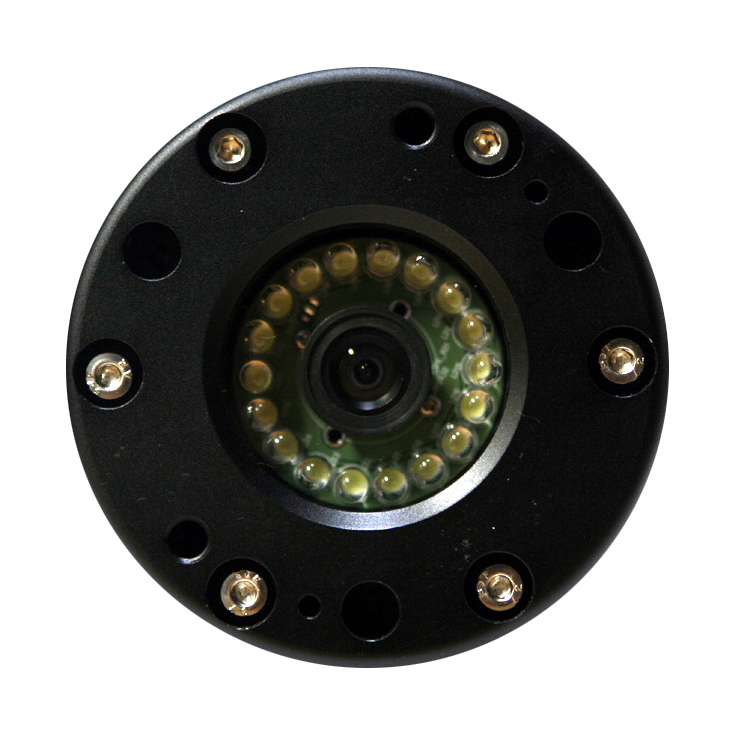

Bottom Camera      Monitoring Control Station
click to enlarge...

click to enlarge...

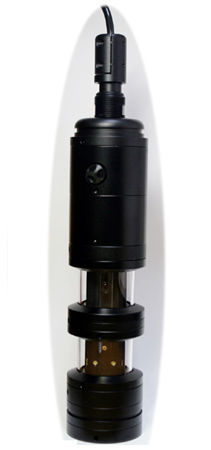

    Panning Side Camera

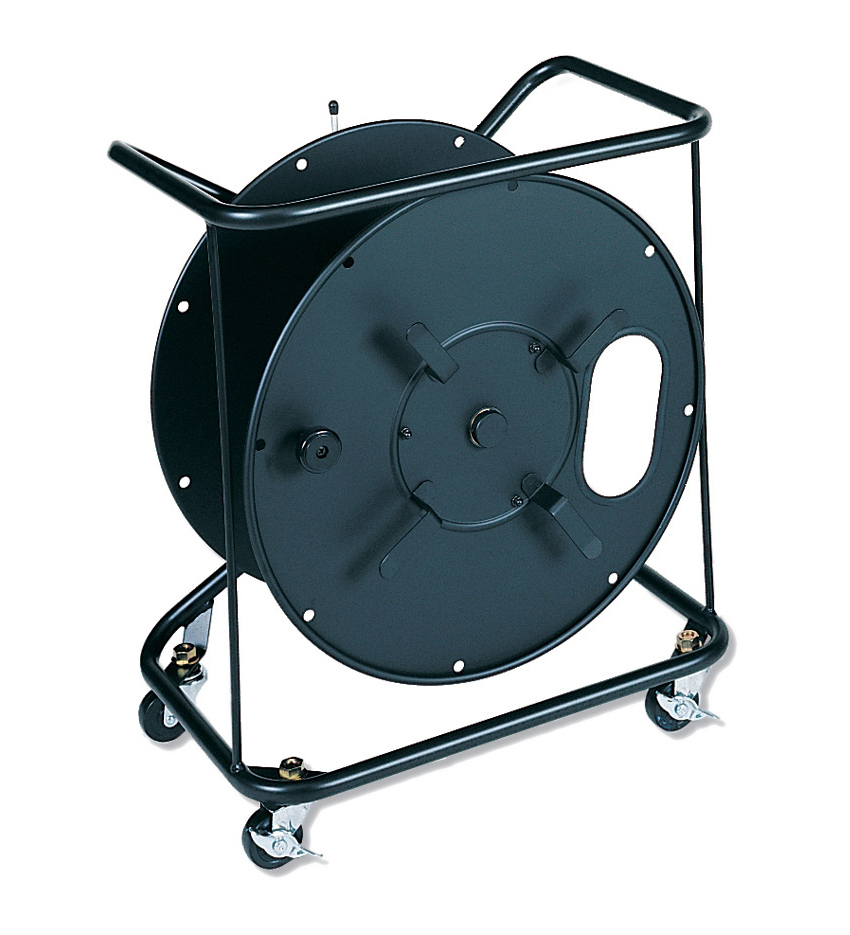

         Motorized Cable Reel                   Hand Winding Cable Reel



Choose one from the dropdown option box below, then click "Add to Cart" button to check out

Unit
Price



Item#

EUC-9300  --- Preorder to built in house & ships out within 7 ~ 8 WKS ---

Description

Deep Ocean Underwater Video Camera on 1,000ft Cable w/ Complete Control Station in Pelican Case w/ No Cable Reel

Item#

EUC-9300HC  --- Preorder to built in house & ships out within 7 ~ 8 WKS ---

Description

Deep Ocean Underwater Video Camera on 1,000ft Cable w/ Complete Control Station in Pelican Case w/ Hand Winding Cable Reel

Item#

EUC-9300MC  --- Preorder to built in house & ships out within 7 ~ 8 WKS ---

Description

Deep Ocean Underwater Video Camera on 1,000ft Cable w/ Complete Control Station in Pelican Case w/ Motor Winding Cable Reel

Specification of Cameras: *Subject to change without prior notice

Image Sensor

1/3" Color Sony HAD ll CCD

Video Resolution

560 TVL

Video Connector

Mil. spec connector that screw plugged onto the connector jack of the control panel

Video Output:

1.0 Vp-p (Sync. Negative) Termination 75+10%

Lens

4.3mm Board Lens (FOV - 78 Diagonally)

Lens Focus

* Side Camera - Remote focusable 10mm ~ infinity
* Bottom Camera - Fixed focus 30cm ~ infinity

Signal System

NTSC (Default) or PAL (Optional)

*Most of recent HD monitors & DVR are automatically switches and compatible with both NTSC & PAL system, but it would be more affordable for using a NTSC-to-PAL converter or Analog CCTV Video to VGA converter still necessary to covert between PAL & NTSC video in order to use w/ your old monitor.

Sync. Type

Internal

Scanning System

2:1 Interlace

Gamma Characteristic

Y= 0.45typ

S/N Ratio

48dB over at AGC off

Electronic Shutter

1/60 (1/50) ~ 1/100,000/Sec

Panning

360 Endless (Side Camera only)

Monitoring Features

Depth meter, Temperature sensor, Direction indicator

Controllable Features

Camera Toggle, Lamp Intensity, Rotate Speed, Manual Rotate and Auto Rotate Select, Display Mode, Focus +/-, etc.

Depth Rate

Up to 1,000ft vertically

Minimum Illumination

0.01 LUX at LED off

LED Type

* Side Camera - 3 each of 3watt 120 lumen Super Bright White LED
* Bottom Camera - 18 each of 5mm Super Bright White LED

LED Control

Brightness adjustable from Control station

Dimension

* Camera head - 88mm x L388mm
* Control Station - 407mm x 330mm x 175mm (Pelican Case 1450)

Weight

* Camera head - 3.8Kg
* Control Station - Apprx. 6.5kg

Power Supply

LiFePO4 5.7A Rechargeable Battery from Control Station or AC/DC 12V Adaptor

Power Consumption

* Camera - Min. 0.9A ~ Max. 1.8A DC12V
* Control Station - Min. 0.4A ~ Max. 1.5A DC12V

Operating
Temperature

-10C ~ 50C (32F ~ 104F) ; Humidity - 10%RH ~ 96%RH

Camera Housing

* Default - Hard Anodized Aluminum 6061T
* Optional - Stainless Steel 316L at additional cost of US$500
* Two separate Pyrex glass chambers for LED & Camera

Housing IP Rate

IP-68 (Dust tight & Protected against continuous immersion in water, or specified by the user)

Cable

* 8.5mm Dia. Polyurethane Outer Jacket with Kevlar Strength
* Extraction Strength >120 kgf
* Tensile Strength >200 kgf

Cable Reel

Optional to select either Hand wining reel or Motorized reel

Display

Splash-proof 8" LCD w/ Special coating to view under Bright sunlight & 800x400 pixels Wide Screen

DVR

* Stores on a Micro SD card supports up to 32GB
* Real-time Playback & Recording
* Recording resolution - 704x480 pixels at 12fps & 352x240 pixels at 30fps

GPS

* Optional to built inside Control Station at additional cost of US$300

Warranty

One Year Full Warranty including Parts & Labor

Parts Includes

Camera on 1,000ft Cable, Monitoring Control Station w/ DVR Monitor, Rechargeable Battery, Control Panel built in Pelican Case,  AC/DC 12V Power Adapter, Battery Charger, Tripod, Camera Bag, 2 Fins, Sun-visor, Operation Manual, Cable Reel when ordered optionally
