Our Price $50 off >

US$648.00

Regular Price >

US$698.00

Item#

EVC-500

Description

Super Long Range Telephoto Color Zoom Camera w/ Wired Remote Control

Camera Housing

IP66 Weatherproof Black Metal

Image Sensor

Sony 1/4" Super HAD Color CCD

Lens

27x Optical Zoom plus 216x Digital Zoom

Viewing Angles

Click the left image to play the video clip sample.

Day Visibility

3 inches from the camera to infinity.

Video Resolution

480 TVL (410K pixel)

Video Out

1Vp-p Composite Video 75 ohms

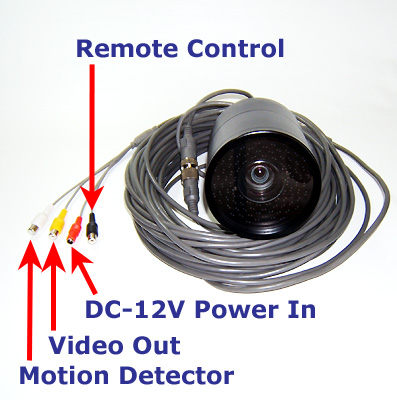

Cable Connector

Video-out RCA Jack (Yellow)
Motion Detector-in RCA Jack (White)
DC-12V Power-in Plug (Red)
Remote Control RCA Jack (Black)

Minimum Illumination

0.01 LUX

Signal System

NTSC for USA, Canada, Asian countries etc...
(*Optional: PAL for Eastern Europe & France, etc...)

Electronic Shutter

1/60 ~ 1/100,000/Sec

Luminance S/N Ratio

Over 48dB

Special Feature

Auto Gain Control (AGC) / Auto Backlight Compensation
Mirror Image; Power On/Off; Tele-Zoom (Up) & Far-Zoom (Down); On-screen Menu Display; Initial Reset; x1 / x2 Toggle; x2 & x4; Day & Night Filter Changing to Auto or Manual; 3 Presets, etc...

Weight / Dimension

2.2LBS (1kg) / Ø2.99”xL6.67” (Ø76xL170mm)

Overheat Protection

Built-in Cooling Fan & 70°C Thermal Protection Sensor

Operating
Temperature

32ºF ~ 131ºF ; Humidity - 10%RH ~ 80%RH

Warranty

One Year Full Warranty including Parts & Labor

Special Instruction

*This camera never should be submerged and exposed under heavy storm or harsh raining environment for long period.

Camera

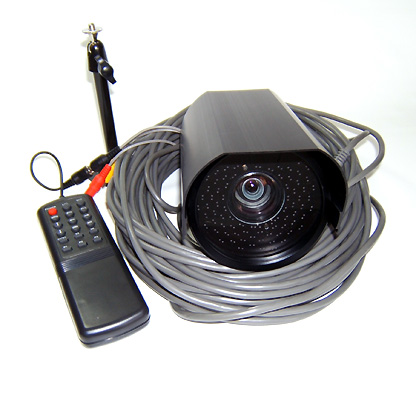

Set Includes

Metal Mounting Bracket Set; Wired Remote Control w/60ft Weatherproof Urethane Cable; Removable Sunshield; AC/DC 12V–1.5A Power Supply; Installation Guide; Spec Sheet
