4-in-One All-angle 360 Viewable Video Surveillance CCTV Dome Camera

Ideal to view large stores, conference rooms, ball rooms, and banquet halls, etc.
Indoor Use / Individually Adjustable Viewing Angle

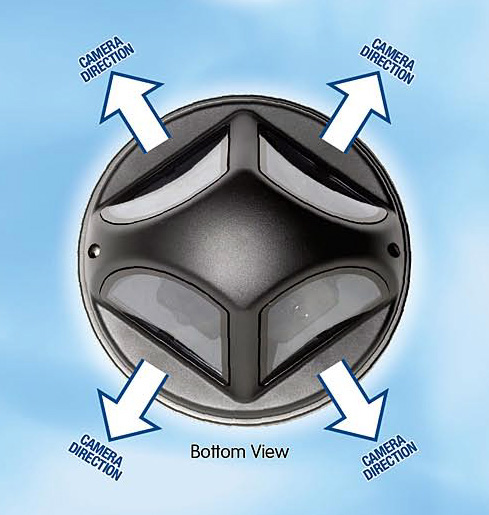

4 of Individually adjustable cameras covers 360 with no blind spot
Day and Night Function / Low Light Sensitive of 0.4 (Color) / 0.03 Lux (B&W)
1/3 Sony Super HAD Color CCD sensor with NEXT Process Chip / Ultra high resolution 560 TVL
Daynight Function / Auto Tracing White Balance (ATW) / Back Light Correction (BLC) / Auto Gain Control (AGC)
12V DC power w/ Low power consumption of 250mA each / Video iris control or Electronic Shutter Control (ESC)



click to enlarge...                          click to enlarge...



"Discontinued"


Item#

EVC-600

Description

4-in-One All-angle 360 Viewable Video Surveillance Quad Dome Camera



Camera Housing

Indoor Housing

Image Pick-up Device

1/3 SONY SUPER HAD CCD

TV System

NTSC

No. of Pixels

811(H) x 508(V)

Scanning System

2:1 Interlace

Sync System

Internal Sync

Resolution

560 TV Lines

Minimum Illumination

0.4 (Color) / 0.03 Lux (B&W)

S/N Ratio

More Than 50dB

Gamma Characteristic

0.45

Video Output

CVBS1/CVBS2:1.0Vp-p75Ω

Electronic Shutter Time

NTSC=1/60 - 1/100,000 Sec / PAL=1/50 - 1/100,000 Sec

Special Features

Daynight Function / Auto Tracing White Balance (ATW) / Back Light Compensation (BLC) / Auto Gain Control (AGC)

Power Supply

DC 12V

Power Consumption

250mA X 4

Lens

3.6mm Board Lens

Operation Temperature

-10C (14F) ~ +50C (122F) /  RH 95% Max.

Storage Temperature

-20 (-4F0 ~ +60C (140F) / RH 95% Max.

Dimension

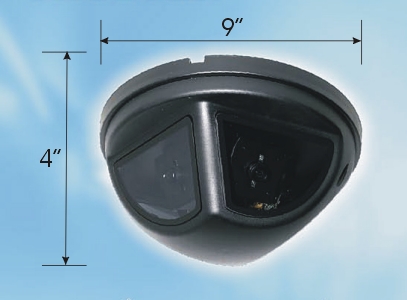

9" Diameter x 4" Height

Weight

1.5LBS (680g)

Special Note

*This camera never should be installed outdoor and exposed under heavy storm or harsh raining environment, unless it is encased or insulated completely with waterproof materials.

Camera
Set Includes

Camera unit, AC/DC 12V Power Adapter, Instruction
