Item#
|
EVC-700
|
|
Description
|
2-in-One
180°

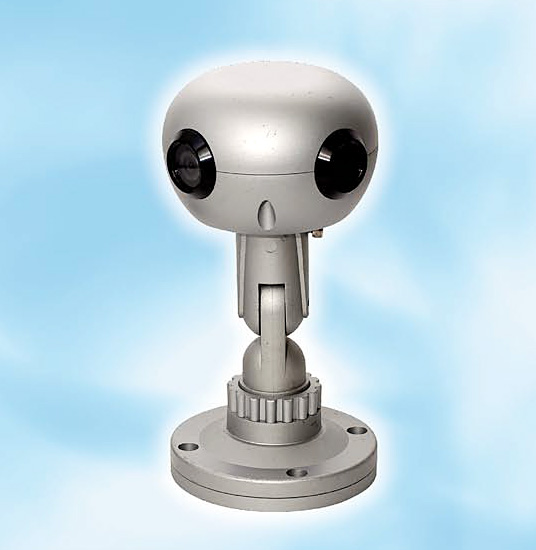

Viewable Video Surveillance Weatherproof Camera
|
|
|
|
Camera
Housing
|
Outdoor
Metal Housing
|
|
Pick-up Device
|
1/3”
SONY SUPER HAD CCD
/ EX-VIEW CCD
|
|
TV
System
|
NTSC
|
|
No.
of Pixels
|
510(H)
x 492(V)
|
|
Scanning
System
|
2:1
Interlace
|
|
Sync
System
|
Internal
Sync
|
|
Resolution
|
380TVL
in Color / 420TVL in B&W
|
|
Minimum
Illumination
|
0.1 Lux
|
|
S/N
Ratio
|
More
Than 50dB
|
|
Gamma
Characteristic
|
0.45
|
|
Video
Output
|
CVBS1/CVBS2:1.0Vp-p75Ω
|
|
Electronic
Shutter Time
|
NTSC=1/60
- 1/100,000 Sec / PAL=1/50 - 1/100,000 Sec
|
|
Special
Features
|
Daynight
Function / Auto Tracing White Balance (ATW) / Back Light Compensation
(BLC) / Auto Gain Control (AGC)
|
|
Power
Supply
|
DC
12V
|
|
Power
Consumption
|
250mA
x 2
|
|
Cable
Outlet
|
2x
BNC Video + 2x DC 12V
|
|
Lens
|
3.8mm
Board Lens
|
|
Operation
Temperature
|
-10°C
(14°F) ~ +50° C (122°F) / RH 95% Max.
|
|
Storage
Temperature
|
-20°
(-4°F0 ~ +60° C (140°F) / RH 95% Max.
|
|
Dimension
|
3.86"
(98mm) Diameter x 7.76" Height + 5.24" (133mm) Diameter
(Bracket Base)
|
|
Weight
|
2.65LBS
(1.2Kg)
|
|
Special
Instruction
|
*This
camera never should be submerged and
exposed under heavy storm or
harsh raining environment for
long period.
|
|
Camera
Set Includes
|
Camera
unit, AC/DC 12V Power Adapter, Instruction
|
