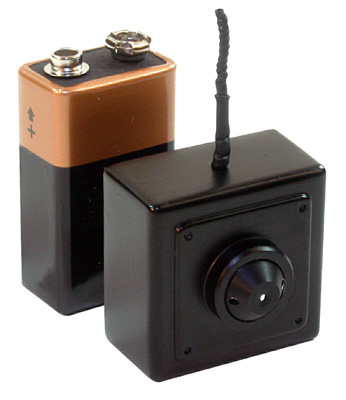

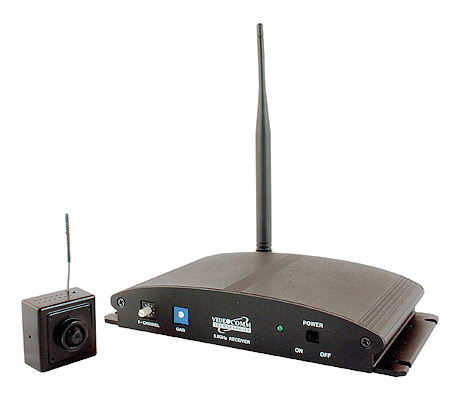

 5.8GHz 8CH Conical Pinhole Camera w/ 1,000ft Transmitter & Receiver Kit

5.8GHz indoor wireless camera series offers an economical solution for real-time, high resolution wireless video applications, that is not susceptible to interference from 2.4GHz 802.11 b/g data devices.
Perfect for covert surveillance including Police Raid, Cash counter surveillance, Office, & Nursery. etc...

95% Interference Free from Home or Office Radio Frequency Appliances vs. 2.4GHz



click to enlarge...                     click to enlarge...





Our Price $50 off >

US$499.00

Regular Price >

US$549.00

General Specification

Item# EWC-001
Description 5.8GHz 8-Ch Covert Pinhole Wireless Video Camera System
Operating Frequency 5.725GHz - 5.875GHz
Channels 8 User Selectable Channels
Radiated Power 50 mV / m @ 3m
Operating Distance  Up to 1000 Feet (Line of Sight) / Up to 300 feet (Indoors)
Video Format NTSC
Antenna Type Fixed Omni Directional
Image Sensor Color 1/3" Sony CCD

Lens

3.7mm Super Multi-layer Conical Pinhole Lens (FOV: 90º Diagonally)

Viewing Angles

click to enlarge...
Refer the left pic of the viewing angle comparison to know how large area the applicable lens can see and click the following link to review the FOV comparison of all applicable lenses.
http://www.EZspyCam.com/R-img-FOV-variation.htm

Resolution 420 TV Lines
Mini. Illumination 1.0 LUX
Temperature Range -22F to + 140F
Weather Proof No
Operating Voltage 9 - 14 Volts DC, Polarity Protected
Power Supply Included
Current Consumption Less than 150mA @ 12VDC
Dimensions 1.1" x 1.3" x 1.3" with lens
Weight 80g or 2.8oz
Approved FCC / IC / CE

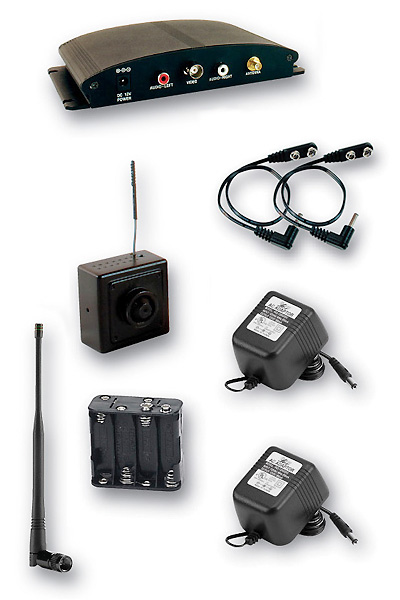

Includes
click to enlarge...Metal Mounting Bracket, 9V DC Power Supply, 9V DC Snap Cable, AA Battery Pack Holder, 12V-500mA AC/DC Power Adaptor (x2), 3dBi Receiver Duck Antenna, BNC Male to RCA Female Converter, Printed Owner’s Manual)

Radio Frequency Interferences...

As we all know publically, sharing radio frequencies that are considered part of the public band. We do not have entitlement and must accept interference if it exists.

Followings are home electronic devices that are most likely produce interferences and it would the best to prevent interferences if your wireless video device is installed at least 5 ~ 10ft away from them.

Example: Other 2.4GHz or 5.8GHz video transmitters in the area, 802.11b/g wireless data network, LAN or WAN, Cordless Phones, Data transceivers, wireless bar code readers, blue tooth devices, and Microwave ovens, etc.

*To download the step-by-step instruction manual or detailed spec sheet, please request it via following email, support@EZspyCam.com along with your order ID# or Invoice#.
* Click the following link or paste it to you web browser to review Frequency Comparison Chart. http://www.EZspyCam.com/Download/Freq_Perform_Comparison.pdf

*Click the following link or paste to your web browser to review Samples of Installation Plan.
http://www.EZspyCam.com/Download/Wireless-Samples-Inst-Plans.pdf
1-Year warranty will not cover if the equipment malfunctions that caused by improper installation.
