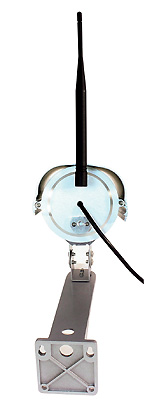

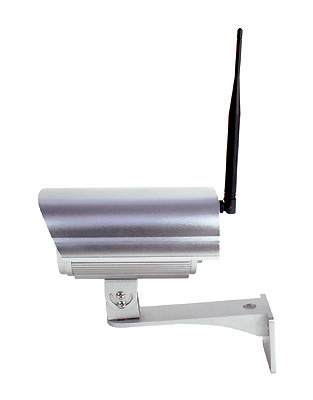

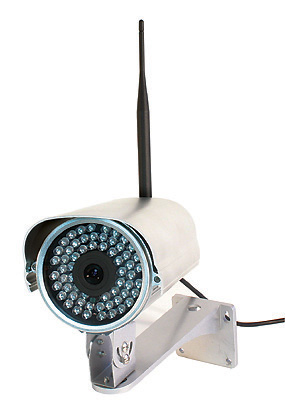

 5.8GHz 8CH Interference Free Wireless Day Night IR Camera w/ 100ft Night Visibility

5.8GHz indoor wireless camera series offers an economical solution for real-time, high resolution wireless video applications, that is not susceptible to interference from 2.4GHz 802.11 b/g data devices.
Perfect for
Home security, Business surveillance, Home alone Pet watch, School Security, Child Monitoring.

95% Interference Free from Home or Office Radio Frequency Appliances vs. 2.4GHz



click to enlarge...          click to enlarge...                    click to enlarge...



Our Price $70 off >

US$699.00

Regular Price >

US$769.00

General Specification

Item# EWC-005   *Pre-order required...
Description: 5.8Ghz 8-CH Wireless Day Night IR Camera / 100ft Night Visibility
Video Format: NTSC
Camera Type: 1/3" Color Day / Night Sony CCD
Resolution: 520 Lines
Lens: Board Lens 8mm @F2.0
Construction: All Weather IP-66 Aluminum Design
Temperature Range: -30F to 170F
Weather Proof: Yes
Power Supply: Included ~ 12VDC Polarity Protected
Current Consumption: 600mA @ 12VDC IR ON
Dimensions: 17" x 4" x 3.7"
Weight: 1,000g or 2.2lbs
IR Range Up to 100 Feet with 60 IR LEDS
Mounting Brackets Included - Universal Wall / Ceiling Bracket

Viewing Angles

click to enlarge...
Refer the left pic of the viewing angle comparison to know how large area the applicable lens can see and click the following link to review the FOV comparison of all applicable lenses.
http://www.EZspyCam.com/R-img-FOV-variation.htm

Approved FCC / IC / CE
Includes click to enlarge...Universal Wall & Ceiling Bracket, 12V-AC/DC Power Adaptor, 3dBi Omni Directional Rubber Duck Antenna, Printed Owner’s Manual

Radio Frequency Interferences...

As we all know publically, sharing radio frequencies that are considered part of the public band. We do not have entitlement and must accept interference if it exists.

Followings are home electronic devices that are most likely produce interferences and it would the best to prevent interferences if your wireless video device is installed at least 5 ~ 10ft away from them.

Example: Other 2.4GHz or 5.8GHz video transmitters in the area, 802.11b/g wireless data network, LAN or WAN, Cordless Phones, Data transceivers, wireless bar code readers, blue tooth devices, and Microwave ovens, etc.

*To download the step-by-step instruction manual, please request it via following email, support@EZspyCam.com along with your order ID# or Invoice#.
* Click the following link or paste it to you web browser to review Frequency Comparison Chart. http://www.EZspyCam.com/Download/Freq_Perform_Comparison.pdf

*Click the following link or paste to your web browser to review Samples of Installation Plan.
http://www.EZspyCam.com/Download/Wireless-Samples-Inst-Plans.pdf
1-Year warranty will not cover if the equipment malfunctions that caused by improper installation.
