Portable 2.4GHz USB Wireless Video Spy Gadget – Turn your PC to DVR & Monitoring System

Introducing Portable "Truly Wireless" Color Spy Video System. Measuring about the size of a quarter,
concealing this camera is not a problem. The transmitter uses the 2400MHz (2.4GHz)
"switch + phase" circuitry to minimize interferences from other 2.4 GHz home electronic appliances.


Digital circuitry ensures no lost video from external wireless devices
and Transmission range up to 600ft in open areas and 300ft through walls.

Plug into USB ports and instantly turn your PC into the surveillance monitoring & recording device



click to enlarge...click to enlarge...
click to enlarge...click to enlarge...click to enlarge...





Our Price $50 off >

US$199.99

Regular Price >

US$249.00

Unit
Price

Item# - Description

EWM-004-01 - Portable 2.4Ghz USB Wireless Spy Video System w/ One Camera

Item# - Description

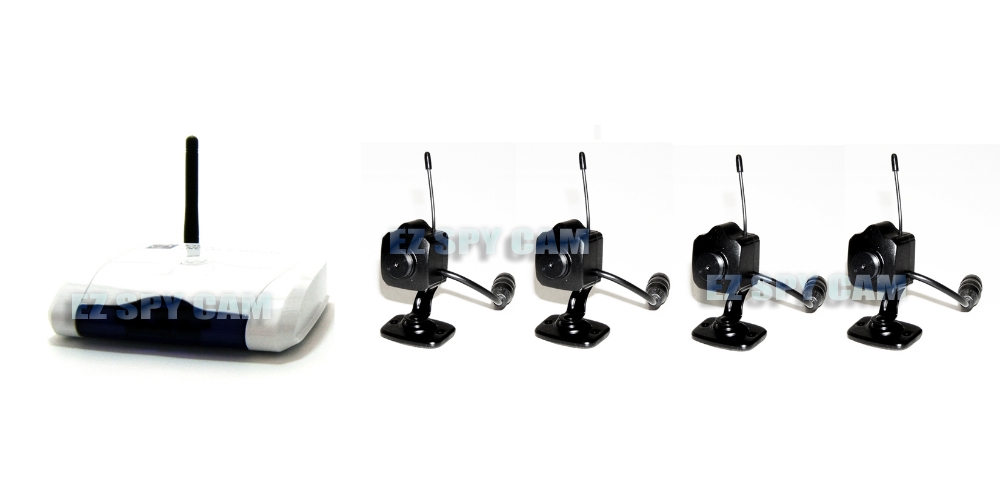

EWM-004-04 - Portable 2.4Ghz USB Wireless Spy Video System w/ 4 Cameras

Features

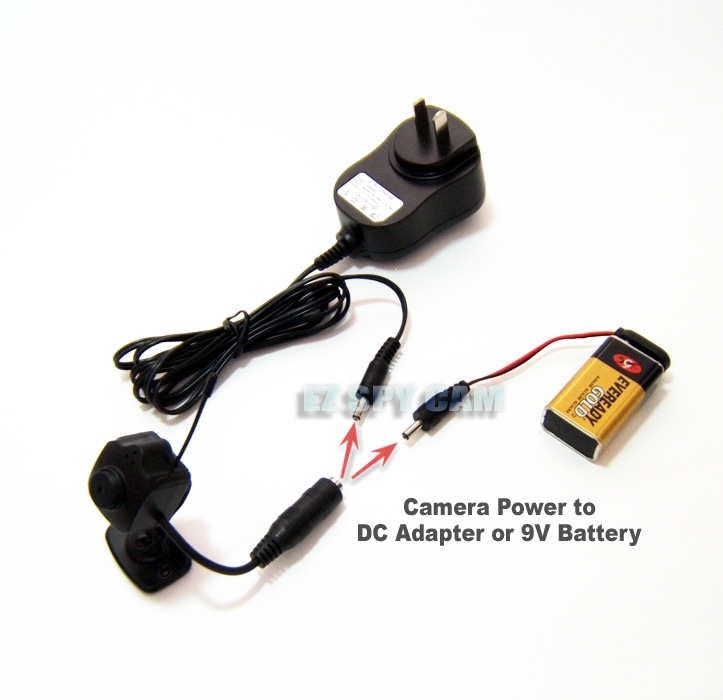

  • Camera power - Single 9 Volt Battery to use 2.5~ 5hrs (Defend on Battery Type) or AC/DC Adapter for Continuous Use.

  • Built-in new generation OmniVision color sensor that is very impressive and upgraded the CMOS color video quality to next generation level.

  • Quarter size of the tiny camera & Palm size Light weight receiver to carry around in your pocket .

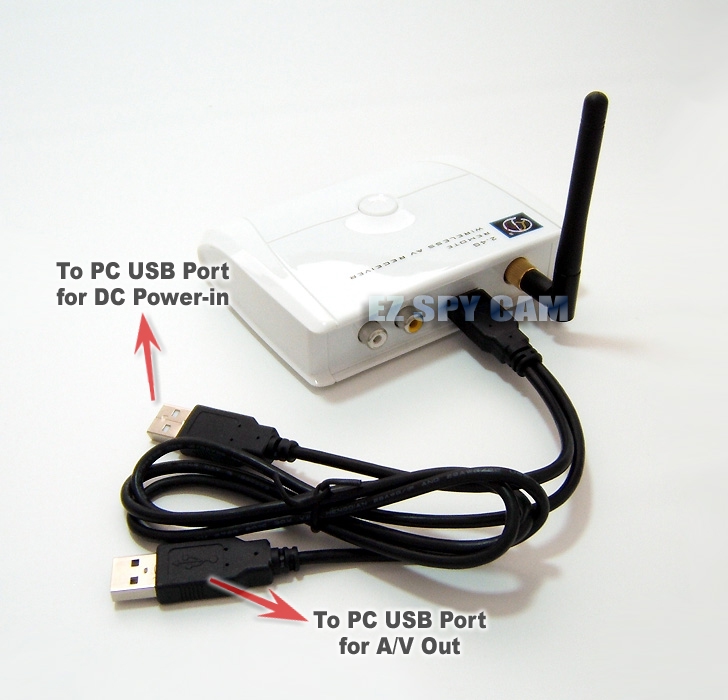

  • Plug into USB ports and turn your PC into the surveillance video monitoring & recording device instantly.

  • Great application for Nanny Cam, Automobile Security, RC Video, Hidden Video Surveillance, Covert Surveillance

Hardware Specification

  • Image Sensor: Full Color 380 Line OmniVision
  • Communication System: NTSC
  • Viewing Angle:  80 Degree
  • Camera Lens: 3.7mm Pinhole Lens
  • Min. illumination:  2.0 Lux

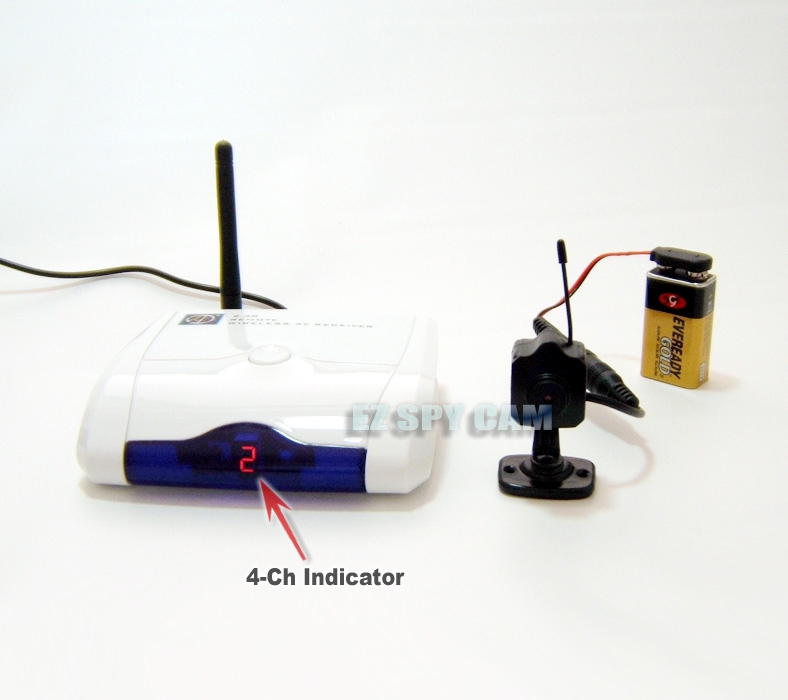

  • Receiving Frequency: 4-CH (One at a time) 2.414 / 2.432 / 2.450 / 2.468GHz
  • Receiving Sensitivity:  85dBm
  • Wireless Range : 600 ft (line of sight) / 300 ft (through walls)
  • Intermediate Frequency: 480MHz
  • USB 2.0
  • Video Output: 1Vp-p
  • Audio Output: 2.5Vp-p (maximum)
  • Video Display Rate: 30fps @ 640x480 pixel resolution
  • Camera Power:  Single 9 Volt Battery to use 2.5~ 5hrs (Defend on Battery Type) or AC/DC Adapter for Continuous Use
  • Receiver Power: USB Power Adapter or AC/DC USB Power Adapter
  • Camera Size:  W24 x H30 x D25mm (0.95” x 1.18” x 0.98”) /
  • Camera Weight w/ Mount Bracket : 28g (1oz)
  • Receiver Size: W120 x H30 x D98 (4.72” x  1.18” x 3.86”)
  • Receiver Weigh: 5oz (142g)

Minimum System Requirements of PC

  • Operation System: Window XP / Direct X – 9x or up

  • CPU: Intel Pentium III (800 Mhz) or up / AMD Athlon or up

  • Memory: 512MB or above / HDD: more than 1GB

  • CD ROM Driver / Two USB Ports / Audio Driver

PC Recording & Monitoring Software Specification

  • Recording Format: ASF (320 x 240 pixels) or AVI (640 x 480 pixels)

  • Video Quality: Adjustable in High, Medium, or Low only available when recording in ASF format

  • TV System: NTSC or PAL selectable

  • Picture Capturing Feature

Parts Included...*Specifications, parts, design may can be modified without prior notice.

2.4GHz Wireless Video Transmitter Camera(s), 2.4GHz 4-CH Wireless Video Receiver w/ Built-in USB Adapter, USB Video & USB Power Cable for PC Hook Up, Video Cable for Receiver To VCR or TV Hook Up, 9V Battery Clip(s) for Camera(s), AC/DC USB Power adapter(s) for Camera(s), AC/DC Power adapter for Receiver, Owner’s Manual

Radio Frequency Interferences...

As we all know publically, sharing radio frequencies that are considered part of the public band. We do not have entitlement and must accept interference if it exists.

Followings are home electronic devices that are most likely produce interferences and it would the best to prevent interferences if your wireless video device is installed at least 5 ~ 10ft away from them.

Example: Other 2.4GHz or 5.8GHz video transmitters in the area, 802.11b/g wireless data network, LAN or WAN, Cordless Phones, Data transceivers, wireless bar code readers, blue tooth devices, and Microwave ovens, etc.

*To download the step-by-step instruction manual, please request it via following email, support@EZspyCam.com along with your order ID# or Invoice#.

* Click the following link or paste it to you web browser to review Frequency Comparison Chart. http://www.EZspyCam.com/Download/Freq_Perform_Comparison.pdf

*Click the following link or paste to your web browser to review Samples of Installation Plan.
http://www.EZspyCam.com/Download/Wireless-Samples-Inst-Plans.pdf
1-Year warranty will not cover if the equipment malfunctions that caused by improper installation.
