Wireless Web Video Surveillance System w/ Real-time Web Video, Record, Digital Pan & Zoom

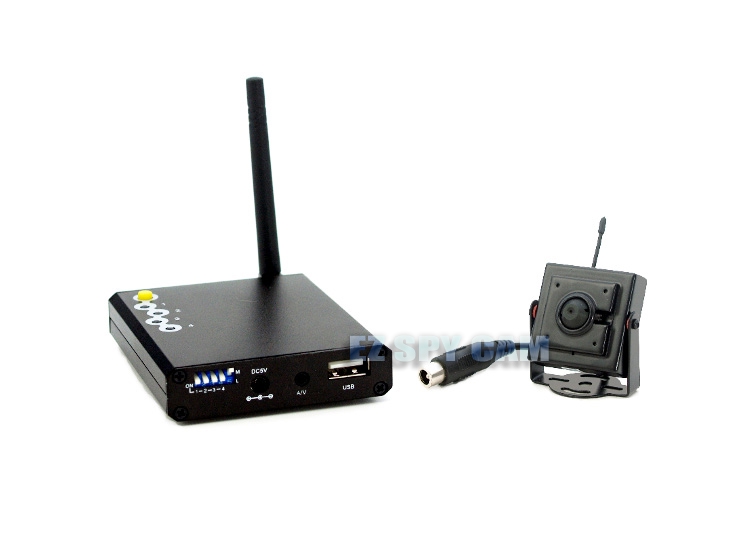

The Mini Versatile Covert Surveillance System offers features only imagined by other wireless camera systems.

Not only is it a powerful (300 ft. range) 2.4Ghz wireless high resolution color CCD pinhole camera, but the tiny,
metal case, 4-channel receiver and included software allows for direct USB connection to your computer for monitoring, motion activated recording or scheduled recordings. The receiver is even powered via the USB connection.
Sony 1/4 CCD, 420 LOR camera and conical pinhole lens product a super clear image. (FCC approved) Now Includes professional security software for real-time remote internet viewing, digital pan and zoom, and playback of recorder video
.



click to enlarge...click to enlarge...





Our Price $50 off >

US$299.00

Regular Price >

US$349.00

"Out of Stock"

Item# - Description

EWM-005-01 - Wireless Web Video Surveillance System w/ One Camera

Item# - Description

EWM-005-04 - Wireless Web Video Surveillance System w/ 4 Cameras

Features

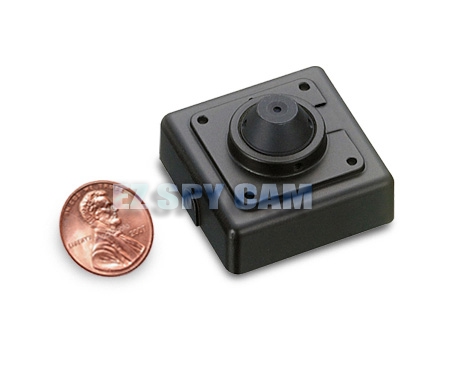

  • Hi Resolution Covert Pinhole CCD Camera (420 LOR) in Tiny Metal Case
  • 4 Ch 2.4GHz USB Powered Receiver w/ 300 ft. range in LOS (Line of Sight)
  • RCA outputs for direct view via VCR, DVR, or TV monitor
  • Motion Activated Recording (when used with PC connection via USB)
  • Security software for real-time remote internet viewing, digital pan and zoom, and playback of recorder video

Hardware Specification

  • Imaging Sensor: 1/4-inch CCD
  • Total Pixels: 512(h) X 492(V)
  • Horizontal Resolution: 420 TVL
  • View Angle: 60 Degree
  • Minimum Illumination: 1.0Lux / F1.2
  • Gain Control: Automatic
  • Frequency: ISM 2,400~2,4834MHz
  • Transmission Power: 2 mW
  • Modulation Mode: FM
  • Bandwidth: 18 MHz
  • Power Supply: +12V DC
  • Consumption Current: 120(Max) mA
  • Operating Humidity: 85% RH
  • Dimensions: 1 1/4 X 1 1/4 x 7/8"
  • Weight: 70g
  • Unobstructed Effective Range : 300ft
  • Channel Frequency: CH1=2414MHz;CH2=2432MHz;CH3=2450MHz;CH4=2468MH

Minimum System Requirements of PC

  • Operation System: Window XP / Direct X 9x or up

  • CPU: Intel Pentium III (800 Mhz) or up / AMD Athlon or up

  • Memory: 512MB or above / HDD: more than 1GB

  • CD ROM Driver / Two USB Ports / Audio Driver

Parts Included...*Specifications, parts, design may can be modified without prior notice.

(1 or 4) Wireless Camera, (1 or 4) 12V AC/DC Power Adaptor for Camera, Wireless Networking USB Receiver, (1) 12V AC/DC Power Adaptor for Networking USB Receiver, PC Recording Software CD, A/V Out (RCA) Cable, USB 2.0 Cable, Manual

Radio Frequency Interferences...

As we all know publically, sharing radio frequencies that are considered part of the public band. We do not have entitlement and must accept interference if it exists.

Followings are home electronic devices that are most likely produce interferences and it would the best to prevent interferences if your wireless video device is installed at least 5 ~ 10ft away from them.

Example: Other 2.4GHz or 5.8GHz video transmitters in the area, 802.11b/g wireless data network, LAN or WAN, Cordless Phones, Data transceivers, wireless bar code readers, blue tooth devices, and Microwave ovens, etc.

*To download the step-by-step instruction manual, please request it via following email, support@EZspyCam.com along with your order ID# or Invoice#.

* Click the following link or paste it to you web browser to review Frequency Comparison Chart. http://www.EZspyCam.com/Download/Freq_Perform_Comparison.pdf

*Click the following link or paste to your web browser to review Samples of Installation Plan.
http://www.EZspyCam.com/Download/Wireless-Samples-Inst-Plans.pdf
1-Year warranty will not cover if the equipment malfunctions that caused by improper installation.
