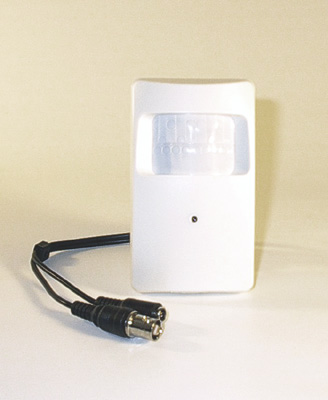

Installation Guide of Motion Sensor Covert Camera





Click pictures to view the enlarged version...


click to enlarge...

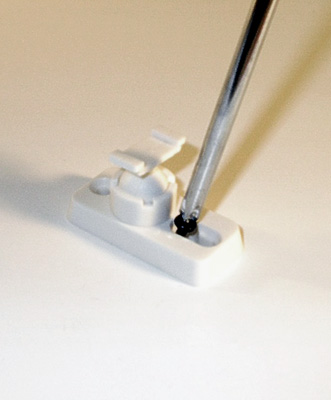

1. Choose your camera location and install the camera mounting bracket firmly.


click to enlarge...

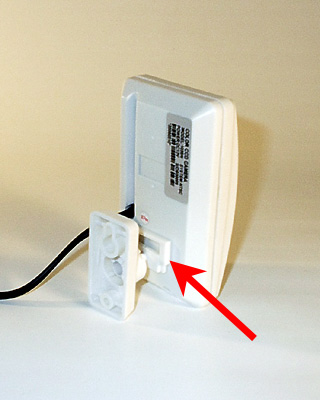

2. Slide in the camera back to the mounted bracket.


click to enlarge...

3. Connect the cable ends as BNC Plug to Video and Power Jack to Power.


click to enlarge...

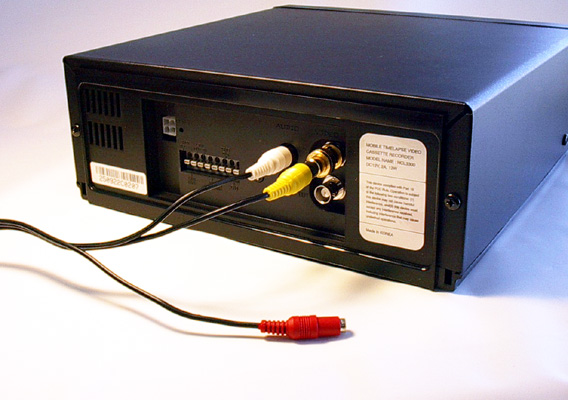

4Connect the other end of the cable as Yellow to Video-in & White to Audio-in (if available) on the back of the recording device or outcome display monitor (if connecting directly to the monitor), then Red to the included 12V power transformer or your own 12V power source.


5. Connect the other end of the cable to the outcome display monitor either directly from the camera or recording device (if the camera is connected via) as the connection procedure explained on 5 and power up all equipments that connected the system.


click to enlarge...

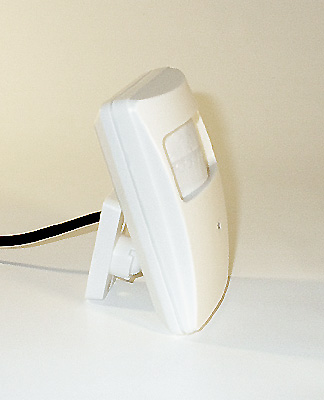

7. Go to the camera location and and adjust viewing angle of the camera looking at the connected monitor.


8. When the monitor location is out of viewable range from the camera,  one more person to be needed to assist on correcting the camera-viewing angle while the other person is adjusting the actual camera angle at the camera location.


click to enlarge...

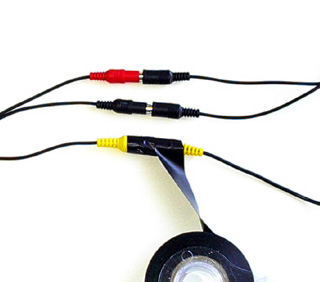

9. Make sure to wrap around all cable connections securely with the electrical tape when it is intended to leave outdoor for long time.
