Video Amplifier & HD-SDI Signal Converter
|
|
|

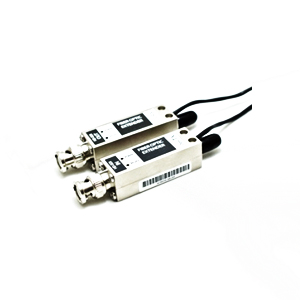

| EH-CVFOV-6M
-
6-mile Range HD-SDI Fiber Optic Active
Balun Pair
|
|
|
-
Fiber
Optic 3G-SDI Digital Video Transport System
-
Designed
to transport SMPTE-424M 3G-SDI, SMPTE-292M HD-SDI, SMPTE-259M SDI over
long distance through either single-mode or multi-mode fiber with the
same model
-
Video
Input: 1CH / 3G-SDI, HD-SDI (BNC)
-
Input
Resolution: SMPTE-424M 3G-SDI, SMPTE-292M HD-SDI, SMPTE-259M SDI
-
Video
Output: 1CH / 3G-SDI, HD-SDI (BNC)
-
Output
Resolution: SMPTE-424M 3G-SDI, SMPTE-292M HD-SDI, SMPTE-259M SDI
-
Distance
for 3G-SDI: About 6 Miles
-
Dimension:
76" x .76"x 2"
-
Power:
5V DC 1.5A +/- 10%
-

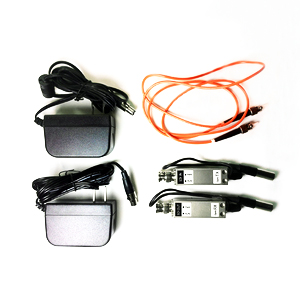

Two
AC/DC5V Power Adapters included
-
Cable
Tester included
-
Power
Consumption: Max 1W
-
Operation
Temperature: -4F~158F
-
Operation
Humidity: 0 to 95% RH, non-condensing
-
Origin:
Made in Korea
|
|

|
|
Our
Price $50
off >
|
US$899.00
|
Regular
Price >
|
US$949.00
|
|
|
|
|
|
|
|

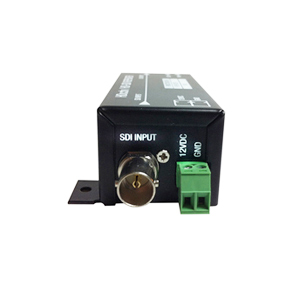

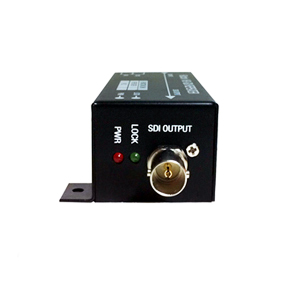

| EH-RP11
- HD-SDI Repeater Pair of 1CH BNC input to 1CH output, 200~250m
Transmission Range, DC12V
|
|
|
-
Video
Signal: HD CCTV
-
1CH
HD CCTV / HD-SDI Signal Input (BNC Connector)
-
Input
Resolution: 1920x1080p(60/59.94/50/30/29.97/25)Hz , 1920x1080i(60/59.94/50)Hz
, 1280x720p(60/59.94/50)Hz
-
1CH
HD CCTV / HD-SDI Output (BNC Connector)
-
Output
Resolution: 1920x1080p (60/59.94/50/30/29.97/25)Hz, 1920x1080i
(60/59.94/50)Hz, 1280x720p (60/59.94/50)Hz
-
Power:
12V DC 1A +/-
10%
-
Power
Consumption: Max 1W
-
Operation
Temperature: 14F~140F
-
Operation
Humidity: 30%~80% RH
-
Origin:
Made in
Korea
|
|

|
|
Our
Price $30
off >
|
US$229.00
|
Regular
Price >
|
US$259.00
|
|
|
|
|
|
|
|

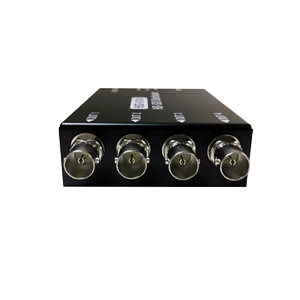

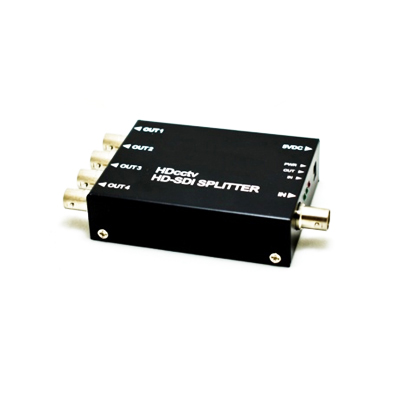

| EH-RP14 -
HD-SDI Repeater Pair of 1CH BNC input to
4CH output, 200~250m
Transmission Range
|
|
|
-
Video
Signal: HD CCTV
-
1CH
HD CCTV / HD-SDI Signal Input (BNC Connector)
-
Input
Resolution: 1920x1080p(60/59.94/50/30/29.97/25)Hz , 1920x1080i(60/59.94/50)Hz
, 1280x720p(60/59.94/50)Hz
-
4CH
HD CCTV / HD-SDI Output (BNC Connectors)
-
Output
Resolution: 1920x1080p (60/59.94/50/30/29.97/25)Hz, 1920x1080i
(60/59.94/50)Hz, 1280x720p (60/59.94/50)Hz
-
Power:
5V DC 1A +/-
10%
-
2x
AC/DC Power Adapters included
-
Power
Consumption: Max 1W
-
Operation
Temperature: 14F~140F
-
Operation
Humidity: 30%~80% RH
-
Origin:
Made in
Korea
|
|

|
|
Our
Price $40
off >
|
US$294.00
|
Regular
Price >
|
US$334.00
|
|
|
|
|
|
|
|
Special
Instruction
|
|
Our
regular converters and connectors are not designed to submerge in any form of the
water and expose under the heavy moisture environment.
|
|
Seal where all connections with
the
waterproof sealant & electrical
tape
for
100% moisture free when it needs to be exposed
under the
heavy moisture environment for long period.
|
|
|
|
|
|
