3-in-ONE Video / Audio / Power Cable

Quick and Easy with Pre-made CCTV Installation Cable

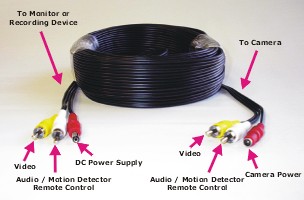

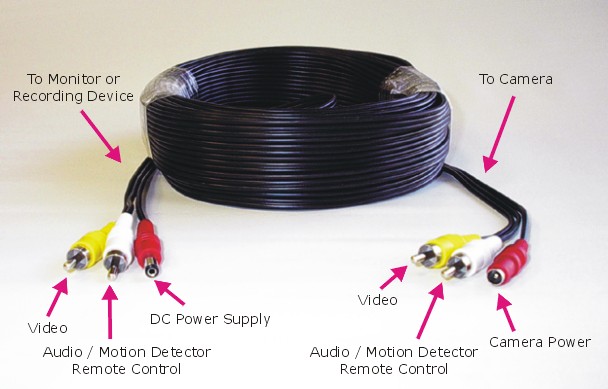

click to enlarge... 3-in-one CCTV installation video audio power cable



Sale Price $5 off >

US$29.90

Regular Price >

US$34.90

"Discontinued"

Item#

ECB-002-065R

Description

65ft (20M) 3-in-One Video / Audio / Power CCTV Extension Cable

Item#

ECB-002-131R

Description

131ft (40M) 3-in-One Video / Audio / Power CCTV Extension Cable

Special Instruction

This cable is not designed to use in any form of the water and exposed under the heavy moisture environment.

The power line of this cable is designed to connect with the power transformer that draws up to DC-24V and never should be connected with any power source directly from the regular house or industrial AC outlet.

This particular cable can be connected one to another and so feel free to extend it up to the maximum extendible distance shown on the following video and power transmission limits.
*Camera power draws less than 12V-150mA (Video - up to 500ft & Power - up to 580ft)
*Camera power draws less than 12V-500mA (Video - up to 400ft & Power - up to 265ft)
*Camera power draws more than 12V-600mA (Video - up to 100ft & Power - up to 65ft)

If cameras to be connected farther than operational distances listed above, need to use a special high current power cable that offers a lower resistance over long wire runs for transmitting the power up to 2,000ft and a video balun for transmitting video up to 1,000ft with color and 2,000ft with B&W.

If cameras to be connected farther than operational distances listed above, need to use a special high current power cable that offers a lower resistance over long wire runs for transmitting the power up to 2,000ft and a video balun for transmitting video up to 1,000ft with color and 2,000ft with B&W.

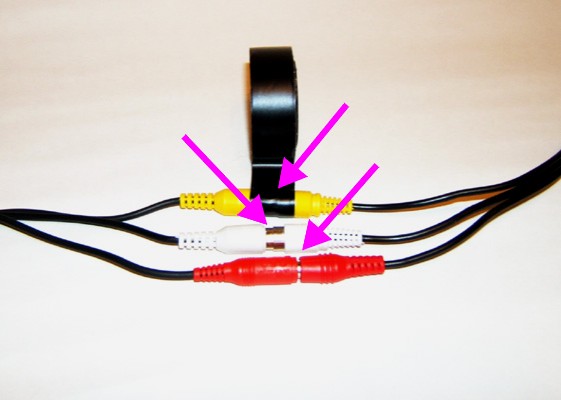

*Seal where all connections with the electrical tape as it shown on the right photo for 100% moisture free when it needsclick to enlarge... to be exposed under the heavy moisture environment for long period.
