Specification
|
|
All wires
insulated with Poly-vinyl jacket
|
|
All cable

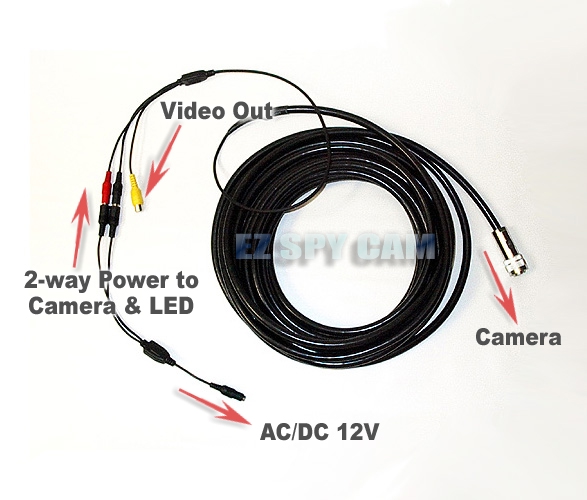

sets include a 2-way power splitter attached on
|
|
Shielding
with Aluminum Foil to stop RF Interference
|
|
Built-in
2-DC Jacks (one uses for Camera and other one for LED power) + One
Video RCA Jack
|
|
Available
cable lengths: 33ft
(10M) / 98ft (30M) / 328ft (100M) / 656ft (200M)
|
|
Cable
diameter - 8mm(0.315") / Receptacle outer diameter - 20mm
(0.79")
|
|
Special
Instruction
|
|
*This
cable is specially designed to use in any form
of the water and also designed to expose to heavy moisture
environment for long period.
|
|
*The
EZspyCam underwater
cable cannot be connected and extended one to
another; one-piece
cable must be connected directly from the camera.
|
|
*The
power line of this
cable is designed to connect with the power
transformer that draws up to DC-24V and
never should be connected with
any
power source directly
from the regular house or industrial AC outlet.
|
|
*The
EZspyCam underwater cable only should be used to
connect with underwater cameras of EZspyCam. Otherwise the
warranty will not cover when the cable malfunctions that
caused by using the customer's own or other brand underwater camera.
|
|
|
*Click
the following link or paste to your web browser to
make sure to review Installation Guide of the
underwater camera and cable.
http://www.EZspyCam.com/IG-UnderwaterCam.htm
1-Year warranty will not cover
if the
camera or cable malfunctions that
caused by improper
installation.
|
|
|
*Click
the following link or paste it to you web browser to make sure to review
a
proper way
to purchase the right underwater camera set of EZspyCam.
http://www.EZspyCam.com/PG-UnderwaterCam.htm
|
|
|

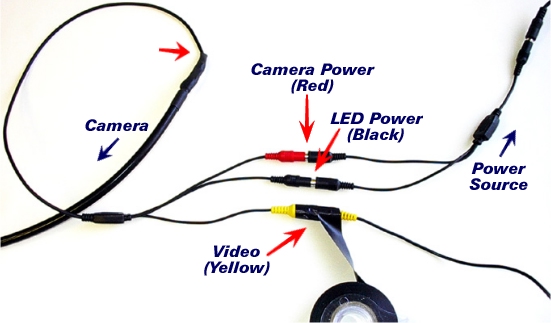

* Seal where all
arrow-pointed connections shown
on the left photo with the
electrical
tape
for
100% moisture free when it is left outside
near the wet area and
never
submerge this connecting portion that around 2ft
from
the cable ending.
|
|
|

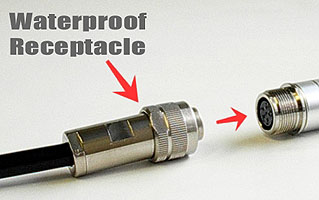

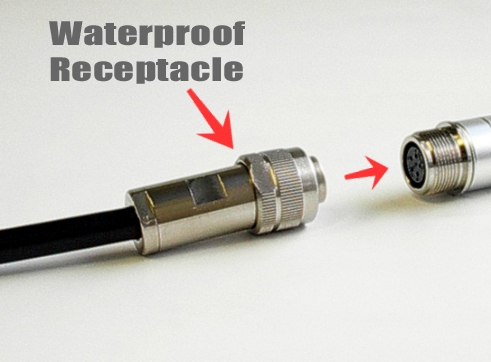

*The
special waterproof receptacle shown on the left photo that affixed on
the cable ending and the camera itself never should be submerged
by itself without connecting them together completely as it
instructed.
|
|
