Fixed Board Lens / Auto Iris Varifocal Lens / Manual Iris Varifocal Lens

Upgrade your CCTV surveillance w/ Superior quality Precision Camera Lens

• Diagonal Angle of View: 160° on 1/3” Format Sensor

• Diagonal Angle of View: 116° on 1/4" Format Sensor

• Focal Length: 2.1mm

• Aperture: F2.0

• Dimension: Ø15 x L13mm

• Superior Quality: Made in Korea

• Diagonal Angle of View: 150° on 1/3” Format Sensor

• Diagonal Angle of View: 110° on 1/4" Format Sensor

• Focal Length: 2.5mm

• Aperture: F2.0

• Dimension: Ø16 x L15mm

• Superior Quality: Made in Korea

• Diagonal Angle of View: 130° on 1/3” Format Sensor

• Diagonal Angle of View: 95.8° on 1/4" Format Sensor

• Focal Length: 2.97mm

• Aperture: F2.0

• Dimension: Ø14.8 x L15mm

• Superior Quality: Made in Korea

• Diagonal Angle of View: 92° on 1/3” Format Sensor

• Diagonal Angle of View: 73° on 1/4" Format Sensor

• Focal Length: 3.6mm

• Aperture: F2.0

• Dimension: Ø14.7 x L15.2mm

• Superior Quality: Made in Korea

• Diagonal Angle of View: 86° on 1/3” Format Sensor

• Diagonal Angle of View: 64° on 1/4" Format Sensor

• Focal Length: 4.0mm

• Aperture: F1.8

• Dimension: Ø14 x L13.67mm

• Superior Quality: Made in Korea

• Diagonal Angle of View: 53° on 1/3” Format Sensor

• Diagonal Angle of View: 38° on 1/4" Format Sensor

• Focal Length: 6.0mm

• Aperture: F2.0

• Dimension: Ø14 x L13.67mm

• Superior Quality: Made in Korea

• Diagonal Angle of View: 40° on 1/3” Format Sensor

• Diagonal Angle of View: 30° on 1/4" Format Sensor

• Focal Length: 8.0mm

• Aperture: F2.0

• Dimension: Ø14 x L14mm

• Superior Quality: Made in Korea

• Diagonal Angle of View: 28° on 1/3” Format Sensor

• Diagonal Angle of View: 19° on 1/4" Format Sensor

• Focal Length: 12mm

• Aperture: F2.0

• Dimension: Ø14 x L11.3mm

• Superior Quality: Made in Korea

• Diagonal Angle of View: 19° on 1/3” Format Sensor

• Diagonal Angle of View: 15° on 1/4" Format Sensor

• Focal Length: 16mm

• Aperture: F2.5

• Dimension: Ø14 x L14.4mm

• Superior Quality: Made in Korea

• Diagonal Angle of View: 13.8° on 1/3” Format Sensor

• Diagonal Angle of View: 16.9° on 1/2" Format Sensor

• Focal Length: 25mm

• Aperture: F2.5

• Dimension: Ø25 x L23.5mm

• Superior Quality: Made in Korea

• Diagonal Angle of View: 90° on 1/3” Format Sensor

• Diagonal Angle of View: 63.5° on 1/4" Format Sensor

• Focal Length: 3.7mm

• Aperture: 2.0

• Dimension: Ø12 x L7.3mm

• Superior Quality: Made in Korea

• Diagonal Angle of View: 90° on 1/3” Format Sensor

• Diagonal Angle of View: 63.5° on 1/4" Format Sensor

• Focal Length: 3.7mm

• Aperture: 2.0

• Dimension: Ø12 x L7.3mm

• Superior Quality: Made in Korea

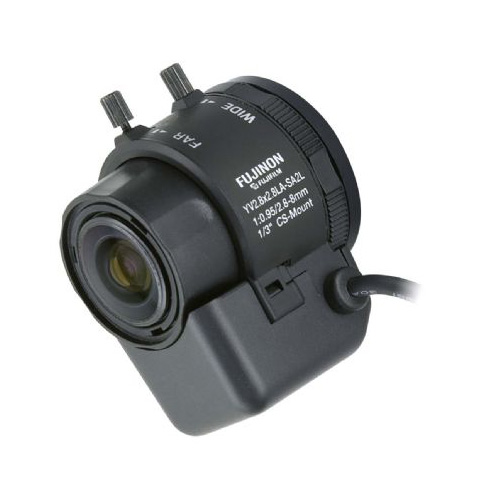

• Application: 1/3” Format Color Camera

• Focal Length: 2.8mm ~ 8mm

• Maximum Relative Aperture: 1 : 0.95

• Iris Range : F0.95 ~ T360 (Equivalent to F360)

• Image Size: 6mm (4.8mm x 3.6mm)

• Focus Range : ∞ ~ 0.3m (From Front of Lens)

• Horizontal Field Angle: Wide (99” 52’) Tele (35” 14’)

• Vertical Field Angle: Wide (73” 17’) Tele (26” 24’)

• Diagonal Field Angle: Wide (128” 58’) Tele (44” 07’)

• Mount: CS

• Weight: Approx. 50g

#ELS-VA0550 - Auto Iris 5~50mm Varifocal Telephoto Lens

The ELS-VA0550 lens provides a high zoom angle using a precise crafted vari-focal 5mm to 50mm, which gives you a great flexibility for your security installations. With the added feature of a DC auto-iris, this lens can automatically adjust to the perfect setting for your lighting conditions. The ELS-VA0550 provides a F1.3 bright aperture to help you to get a better and cleaner picture quality.

• Application: 1/3” Format Color Camera

• Focal Length: 5mm ~ 50mm

• Horizontal field angle of 51~5 degree

• Wide aperture of F1.3, optimizing the performance at low lighting intensity

• High accuracy aspherical lens adopted, achieving the high quality image

• Built-in ND filter of T360, supporting high sensitivity cameras

• Mount: CS

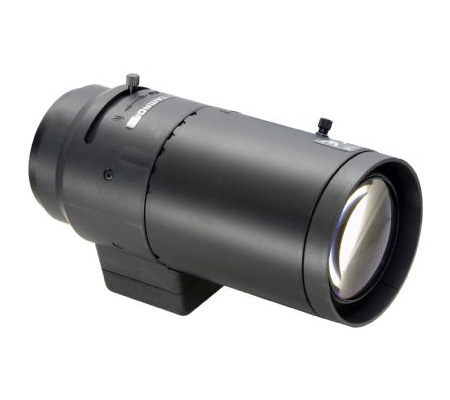

#ELS-VA20100 - Auto Iris 20~100mm Varifocal Tele-zoom Lens

The ELS-VA20100 lens provides an ultimate telephoto angle. By using a precise crafted vari-focal 20.0mm to 100.0mm, which gives great flexibility for your security installations. With Auto-iris, this lens can be adjusted to the perfect setting for your lighting conditions. The ELS-VA20100 provides a F1.6 bright aperture to help you to get a better and cleaner picture quality.

• Application: 1/3” Format Color Camera

• Focal Length: 20-100mm

• Iris Range : F/1.6-360

• Iris Operation: Auto-Iris (DC)

• Mount: CS

• 1/4” Angle of View (wide/telephoto): 10.2°x 7.6°/2.1°x1.6°

• Focusing Range: 1.0m ~ INF

• Back Focus (in air): 22.292mm (Wide) ~ 18.298mm (Tele)

• Operating Temperature: -20° ~ +60°C
