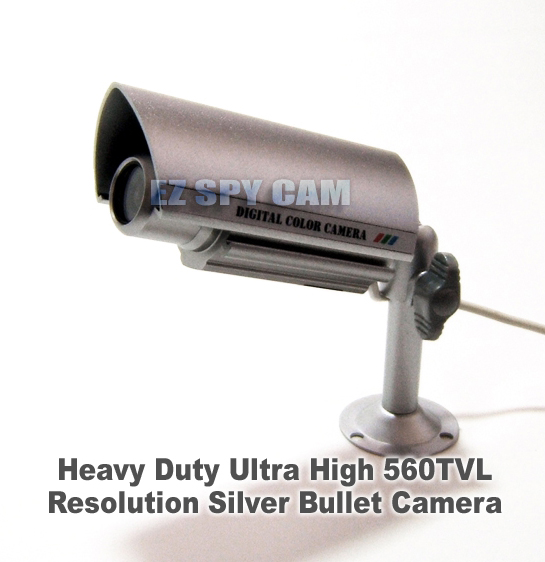

 Heavy Duty Ultra High 560TVL  Resolution Silver Bullet Color Camera

Ideal for Crystal Clear Face & License Plate Verification
Indoor & Outdoor Use
Home security, Business surveillance, Home alone Pet watch, School Security
Child Monitoring, Wild Animal video, Zoo keeping, Bird net watch, Garden watch, Natural Life observation
Cash counter surveillance, Baby Watch, Office Surveillance, Infants safety, Property security, Animal Watch
Backyard Watch, Outdoor security, Hidden surveillance, Spy video, Live video, Video surveillance, Nanny Cam

 A-must-have Replacement for Old Generation Blurry CCTV Video Cameras



click to enlarge...              click to enlarge...

click to enlarge...click to enlarge...click to enlarge...



Sale Price $50 off >

US$149.00

Regular Price >

US$199.00

Item#

EBC-300

Description

Heavy Duty Ultra High 560TVL Resolution Silver Bullet Camera

Camera Housing

Weatherproof IP-65 Rigid Aluminum Alloy

Image Sensor

Sony 1/3" Super HAD Color CCD

Signal System

NTSC

Viewing Angles

click to enlarge...
Refer the left pic of the viewing angle comparison to know how large area the applicable lens can see and click the following link to review the FOV comparison of all applicable lenses.
http://www.EZspyCam.com/R-img-FOV-variation.htm

Day Visibility

click to play...3 inches from the camera to infinity.

Click the left image to play the video clip sample.

Also click the following link or paste it to your web browser to re view all available night vision image samples.
http://www.EZspyCam.com/R-img-daynightvision.htm

Video Connector

BNC Jack

Picture elements

811(H) x 508(V) 410K pixels

Effective Pixels

768(H) x 494(V) 380K pixels

Sensing Area

3.65(H) x 2.74(V) mm

Scanning System

2:1 Interlace / 525 Lines / 60 Fields / 30 Frames

Day & Night

Yes

Horizontal Resolution

560 (H) TV Line (Color) / 580 (H) TV Line (B/W)

S/N Ratio

More than 48dB

Video Output

1.0Vp-p, 75 Ω

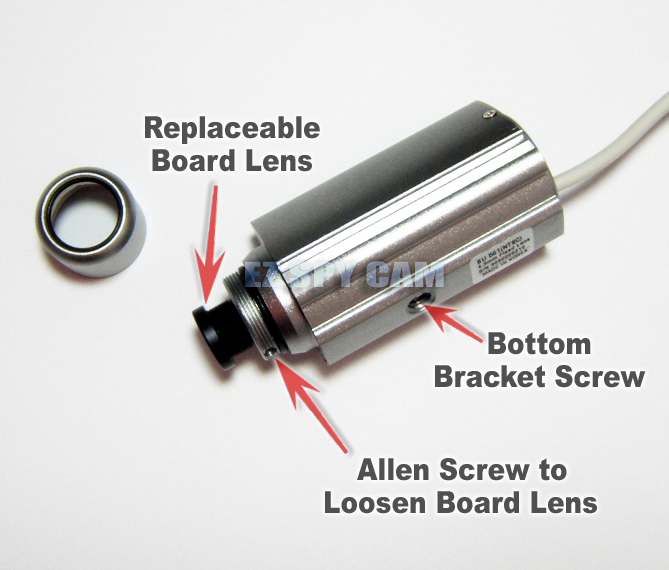

Lens

4.3mm fixed board lens

Minimum Illumination

0.4 Lux (Color) / 0.03 Lux (B&W)

Shutter Speed

1/60 ~ 1/100,000 Sec. (NTSC)

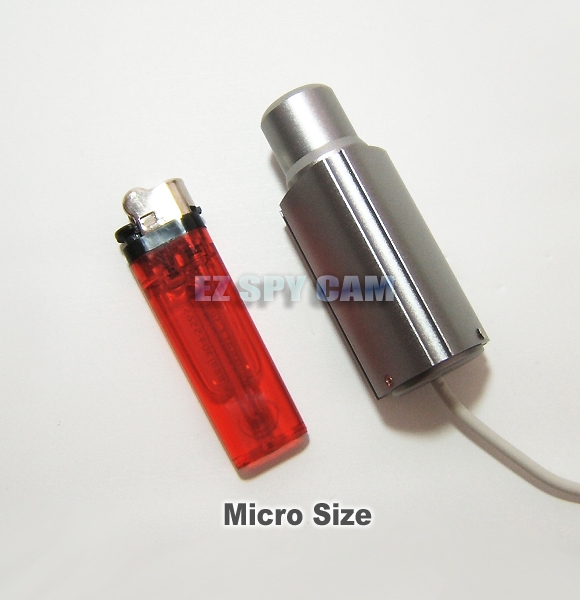

Dimensions

1.5(H) x 1.25(W) x 3.25(L) -Camera only

Gamma Characteristic

0.45

Weight

4.5 oz - Camera + Sunshield

Operational Temperature

-10C ~ 50C (14F~122F) RH 95% Max

Storage Temperature

-20C ~ 60C (14F~122F) RH 95% Max

Power

12V DC / 10%

Power Consumption

150mA

Special Feature

Auto White Balance (AWB) / Auto Gain Control (AGC) / Day Night Funtion

Warranty

One Year Full Warranty including Parts & Labor

Camera
Set Includes

AC/DC 12V Power Supply; Installation Guide; Spec Sheet

Special Instruction

*This camera never should be submerged and exposed under heavy storm or harsh raining environment for long period.
