Telephoto Zoom Submersible Telescopic Pole Video System w/ Long Range LED Light

Ideal for Inspecting Long Range Large Areas where requires Precision Video Inspection
Great for Saltwater & Chemical Pool /  Telephoto Video w/ x22 Optical x32 Digital Zoom Lens

Underwater Athletic Movement, Boat Inspection, Check anchor set, Marine Life observation
Bridge & Dam inspection, Tank inspection, Docks & pier surveillance, Whale Watch, Fish Search
Search & Rescue, Inspect & Monitor Swimming Pool, Swamps, river, & lake watch, Boat inspection
Underwater farm surveillance, Create videos of Underwater Actions, Check crab pots & lobster traps
Exploring shipwreck & submerged objects, Discover treasure, Cave search, Rain forest watch, Storm Watch

Best to view objects in Long distance Total darkness & where requires Micro Zoom-in video
telephote zoom pole video system remote control pole camera

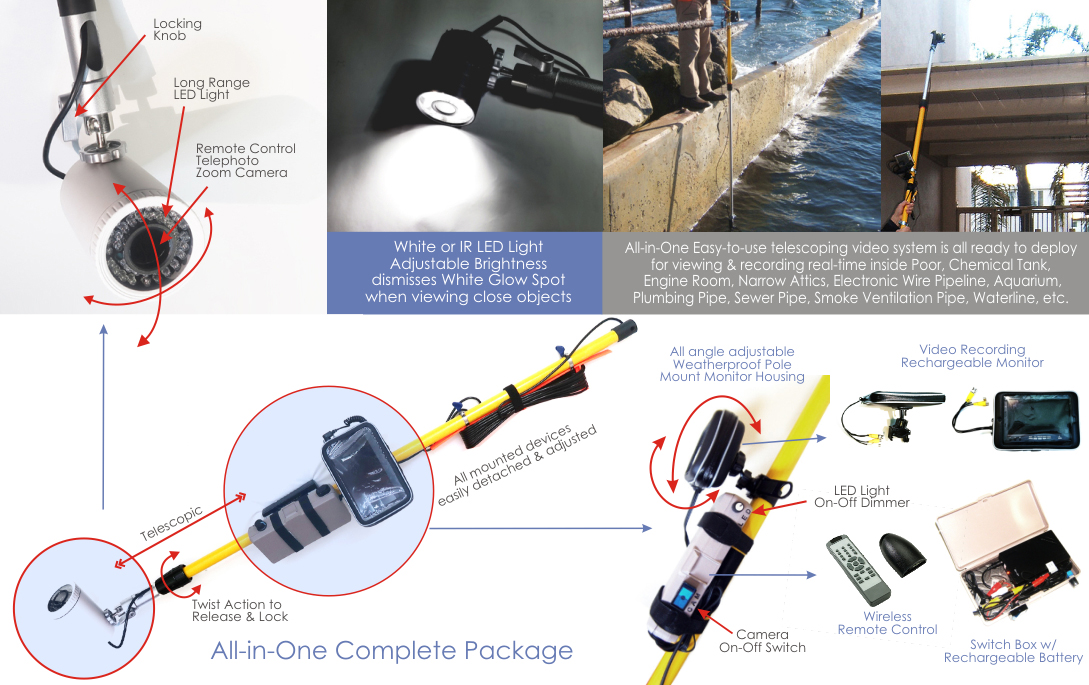

Easy Disassembling Camera Head & Cable from Pole offers you Convenient Versatility
raid cam, chimney inspection video, toxic tank inspection, bird nest watch, burrow inspection, wahel watch, fish finding camera





Choose one from the dropdown option box below, then click "Add to Cart" button to check out

Unit
Price
"Review more details about assembled devices listed at the bottom of this page"



Item#

ENC-130RA ---Preorder to built in house & ships out within 5~15 working days---

Description

Remote Control Submersible Telephoto Zoom Pole Video System w/ Total Invisible 950nm IR LED Light & HD Video Recording Monitor & Battery Kit on 4~8ft Telescopic Pole

Item#

ENC-130RB ---Preorder to built in house & ships out within 5~15 working days---

Description

Remote Control Submersible Telephoto Zoom Pole Video System w/ Total Invisible 950nm IR LED Light & HD Video Recording Monitor & Battery Kit on 6~12ft Telescopic Pole

Item#

ENC-130RC ---Preorder to built in house & ships out within 5~15 working days---

Description

Remote Control Submersible Telephoto Zoom Pole Video System w/ Total Invisible 950nm IR LED Light & HD Video Recording Monitor & Battery Kit on 8~23ft Telescopic Pole

Item#

ENC-130SA ---Preorder to built in house & ships out within 5~15 working days---

Description

Remote Control Submersible Telephoto Zoom Pole Video System w/ Super Bright 850nm IR LED Light & HD Video Recording Monitor & Battery Kit on 4~8ft Telescopic Pole

Item#

ENC-130SB ---Preorder to built in house & ships out within 5~15 working days---

Description

Remote Control Submersible Telephoto Zoom Pole Video System w/ Super Bright 850nm IR LED Light & HD Video Recording Monitor & Battery Kit on 6~12ft Telescopic Pole

Item#

ENC-130SC ---Preorder to built in house & ships out within 5~15 working days---

Description

Remote Control Submersible Telephoto Zoom Pole Video System w/ Super Bright 850nm IR LED Light & HD Video Recording Monitor & Battery Kit on 8~23ft Telescopic Pole

Specification:   *Subject to change without prior notice

Image Sensor

Megapixel Color Image Sensor

Video Resolution

1080p Full HD or above

Effective Pixels

1984(H) x 1105(V)

Minimum Illumination

0.001 LUX in Color (Daytime) / 0.0004 LUX in B&W (Night)

Video Signal Type

Default: HD-AHD (Optional: EX-SDI, HD-CVI, HD-TVI, or Analog)
*All these HD types show almost identical HD video quality and one among those will be chosen by our production team defending on the best availability by the time an order is processed and a compatible DVR information to be specified on the included instruction guide.
*When you already have your own HD DVR system, please get a confirmation from our production team if you can have a compatible HD signal type of your ordering HD camera.

Exposure

Auto (CCD iris) or Manual (Switchable)

Signal System

NTSC for USA, Canada, Asian countries etc...
(*Optional: PAL for Eastern Europe & France, etc...)

Electronic Shutter

NTSC=1/60~1/100,000/Sec (28 Steps) ; PAL=1/50~1/100,000/Sec (28 Steps)

Sync. System

Interlock

Luminance S/N Ratio

Over 48dB

Lens

x22 Optical & x10 Digital Zoom Lens or higher

Focal Length

f = 3.9mm ~ 85.8mm

Aperture Ratio

F1.8 (Wide) ~ F3.7 (Tele)

Focus

Auto or Manual (Focusable: Appx. 1 inch from the camera lens to infinity)

LED Light

* Invisible 940NM or 950NM IR-LED: Shows no red glow on the tip of IR LED when it turned on and the IR light beam is also   completely invisible to human eyes. It is the best for the complete undetected video surveillance and viewing object in close range in the dark.

*
Strong 850NM IR-LED: Shows red glow on the tip of LED when it's on, but the emitting IR-light beam is invisible to human eye and it produces a longer emitting power than the invisible 950NM IR-LED. It is suitable for the undetected surveillance video and viewing objects that are in long range in the dark.

LED Beam Travel Distance in Air

* 850NM Strong Infrared LED - Appx. 120ft

* 940NM No Red Glow Infrared LED - Appx. 100ft

Light Control

* White LED --- Brightness adjustable & Turned On-Off manually w/ Built-in Dimmer Switch

* IR LED --- Automatically turned on-off controlled w/ Built-in CdS sensor & alos turned on-off manually w/ Built-in dimmer switch

Remote Control Interface

RS-485 w/ PELCO-D Protocol via Wireless Remote Control

Dropdown Clearance

Requires least 3.25" in diameter

Dimension

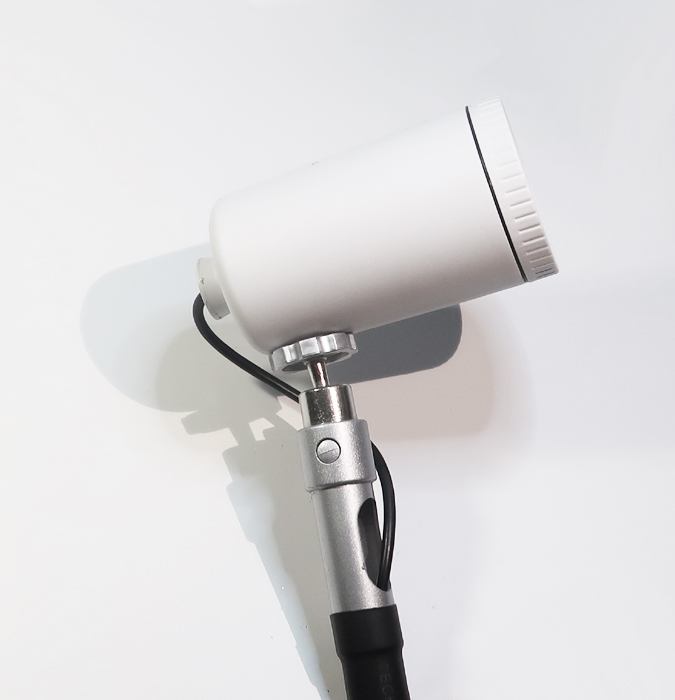

remote control telephoto zoom telescopic pole camera systemΦ3" + Φ2.78 x L5.5" (Camera Head only)

Weight

1LBS (Camera Head Only)

Power Consumption

DC12V±2V/ Less than 4W

Operating Temp.

-10ºC ~ 50ºC (14ºF ~ 122ºF)

Storage Temp.

-20ºC ~ 60ºC

Housing IP Rate

IP-68 (Dust tight & Protected against continuous immersion in water, or specified by the user)

Camera Housing

Aluminum Anodized w/ UV Resistance High Tempered Paint Coat

Max. Depth

Maximum depth can be submerged vertically up to 1,000ft

Warranty

One Year Full Warranty including Parts & Labor

Parts Includes

Camera on 30ft Cable w/ Remote Control & All other devices pre-assembled on a Pole &  All available accessories, Operation manual

Replacement Devices

* RS-485 Wireless Remote Control Unit
* RS-485 signal converter to Wiress signal
* Universal AC/DC 12V Power Supply included
*
Click here to review more product details & purchase

click to enlarge...

* Rechargeable Li-ion DC 12V Battery w/ Universal AC/DC Charger
* Encased w/ On-off switchable case
* Overcharge & Over-discharge protected circuit
*
Click here to review more product details & purchase

* Hybrid 1024 X 600 Pixel  7" LCD Screen
*
Video Recording Pixels:1691920* 1080p
* Stores images on a Micro SD card supported up to 128GB
* All functions controlled via OSD menu
* Click here to review
more product details & purchase

* Telescopic pole requires only a screw driver to assemble or disassemble
   the camera and cable from the pole
* Components consist of Water Resistant Fiberglass Pole, Die cast Metal Thread, &
   Anodized Aluminum Sliders
*
The camera holding bracket features 13-postion and 270 degree adjustable angle.
*
Click here to review more product details & purchase
