 Premium S-Booby Telescopic Pole Video System w/ Long Range LED Light

Ideal to view unreachable impossible-to-see total-dark and large viewing areas
OK for Saltwater Environments & High Quality Professional Video

Underwater Athletic Movement, Boat Inspection, Check anchor set, Marine Life observation
Bridge & Dam inspection, Tank inspection, Docks & pier surveillance, Whale Watch, Fish Search
Search & Rescue, Inspect & Monitor Swimming Pool, Swamps, river, & lake watch, Boat inspection
Underwater farm surveillance, Create videos of Underwater Actions, Check crab pots & lobster traps
Exploring shipwreck & submerged objects, Discover treasure, Cave search, Rain forest watch, Storm Watch

Undetected video observation with No-red-glow total invisible 940nm IR LED light
Extra LED Light offers Superior video crarity in the dark where Camera LED doesn't cover all
telescopic pole video system underwater pole inspection video

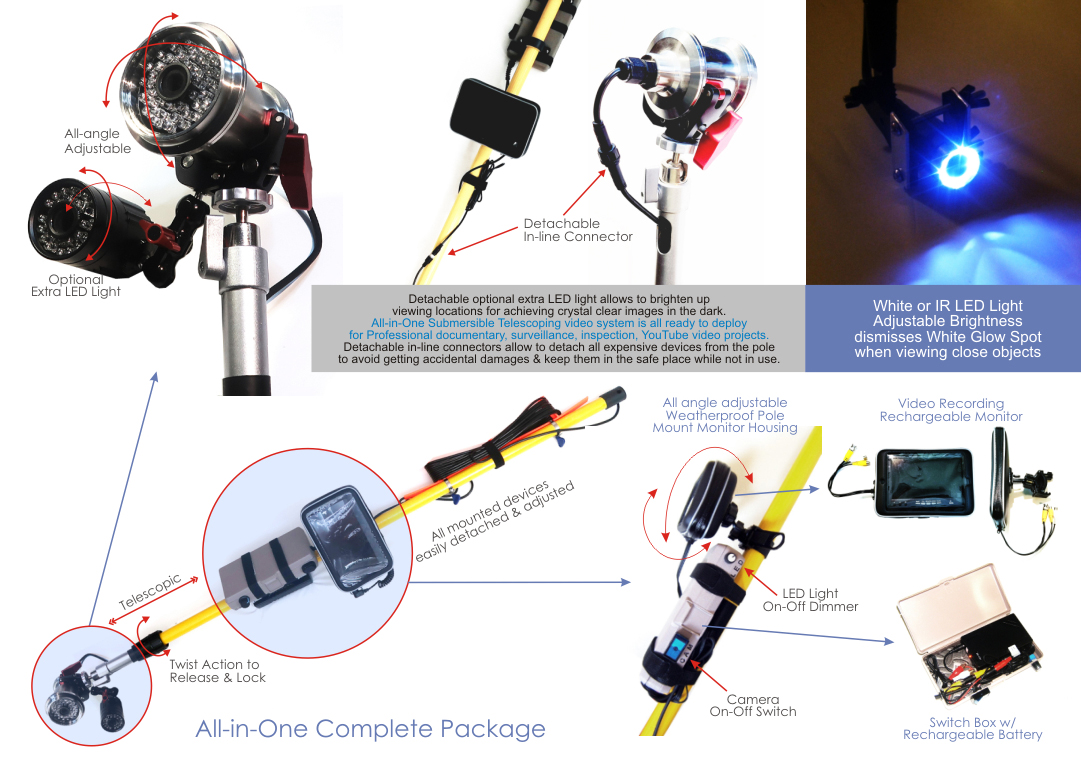

Easy Disassembling Camera Head & Cable from Pole offers you Convenient Versatility
raid cam, chimney inspection video, toxic tank inspection, bird nest watch, burrow inspection, wahel watch, fish finding camera





Choose one from the dropdown option box below, then click "Add to Cart" button to check out

Unit
Price
"Review more details about assembled devices listed at the bottom of this page"



Item#

ENC-133PAW-XLN   ----Preorder to built in house & ships out within 3~10 working days---

Description

S-Booby All-in-One Pole Video System on 4~8ft Telescopic Pole w/ No extra LED Light

Item#

ENC-133PAW-XLR   ----Preorder to built in house & ships out within 3~10 working days---

Description

S-Booby All-in-One Pole Video System on 4~8ft Telescopic Pole w/ Extra 940nm IR LED Light

Item#

ENC-133PAW-XLW   ----Preorder to built in house & ships out within 3~10 working days---

Description

S-Booby All-in-One Pole Video System on 4~8ft Telescopic Pole w/ Extra White LED Light

Item#

ENC-133PBW-XLN   ----Preorder to built in house & ships out within 3~10 working days---

Description

S-Booby All-in-One Pole Video System on 6~12ft Telescopic Pole w/ No extra LED Light

Item#

ENC-133PBW-XLR   ----Preorder to built in house & ships out within 3~10 working days---

Description

S-Booby All-in-One Pole Video System on 6~12ft Telescopic Pole w/ Extra 940nm IR LED Light

Item#

ENC-133PBW-XLW  ----Preorder to built in house & ships out within 3~10 working days---

Description

S-Booby All-in-One Pole Video System on 6~12ft Telescopic Pole w/ Extra White LED Light

Item#

ENC-133PCW-XLN   ----Preorder to built in house & ships out within 3~10 working days---

Description

S-Booby All-in-One Pole Video System on 8~23ft Telescopic Pole w/ No extra LED Light

Item#

ENC-133PCW-XLR   ----Preorder to built in house & ships out within 3~10 working days---

Description

S-Booby All-in-One Pole Video System on 8~23ft Telescopic Pole w/ Extra 940nm IR LED Light

Item#

ENC-133PCW-XLW  ----Preorder to built in house & ships out within 3~10 working days---

Description

S-Booby All-in-One Pole Video System on 8~23ft Telescopic Pole w/ Extra White LED Light

Specification:   *Subject to change without prior notice

Image Sensor

Sony 1/2.8" NVP2441+IMX307

TV Output

NTSC or PAL switchable

FPS

NTSC: 30fps /  PAL: 25fps

Recording Format

AVI

Recording Pixels

1920* 1080p

Video Output

75ohm+10%

Lens

Default 3.6mm Lens (Other narrower or wider FOV lens options are available upon request)

Lens Focus

Default: Appx. 3 inches from the camera lens to infinity * The focus range cab be customized upon a request w/ customization fee & this will help to view objects in that certain distance range with  the maximum clarity.

Day Visibility

Appx. 3 inches from the camera lens to infinity (Adjustable upon request)

Luminance S/N Ratio

Over 48dB (AGC off)

Gamma Correction

r = 0.45

Electronic Shutter

1/60~1/100,000/Sec

LED Light

* Invisible 940NM or 950NM IR-LED: Shows no red glow on the tip of IR LED when it turned on and the IR light beam is also   completely invisible to human eyes. It is the best for the complete undetected video surveillance and viewing object in close range in the dark.

*
Strong 850NM IR-LED: Shows red glow on the tip of LED when it's on, but the emitting IR-light beam is invisible to human eye and it produces a longer emitting power than the invisible 950NM IR-LED. It is suitable for the undetected surveillance video and viewing objects that are in long range in the dark.

*
White LED:
The white light beam is seen by human eyes exactly same as what you see from a conventional LED flashlight and it it the best when objects are viewed in color at night as they seen in daylight.

Light Control

* White LED --- Brightness adjustable & Turned On-Off manually w/ Built-in Dimmer Switch

* IR LED --- Automatically turned on-off controlled w/ Built-in CdS sensor & alos turned on-off manually w/ Built-in dimmer switch

Beam Travel
Distance in Air
for Extra LED Light

* 850NM Strong Infrared LED - Appx. 40~50ft

* 940NM No Red Glow Infrared LED - Appx. 30~40ft

* White LED - Appx. 60~ 70ft

LED Beam Travel
Distance in Air for
Camera LED Light

* White LED - Appx. 120ft (White LED is the factory default LED type, but it can be switched to IR LED upon request)

Power Consumption

Max. 250mA for Cam w/ built-in LED light / Max. 70mA for Extra LED light

Minimum Illumination

Starligh 0.0001 LUX when LED off

Cable

Ø5~8mm Industrial Waterproof Cable

Housing

Camera - 304 Stainless Steel / Extra LED - Aluminum Anodized w/ UV Resistance High Tempered Metallic Paint Coat

Operating Temp.

-20ºC ~ 60ºC

Housing IP Rate

IP-68 (Dust tight & Protected against continuous immersion in water, or specified by the user)

Weight

550g (Camera Head only)

Dimension

extendable pole video camera system made in US telescopic pole video camera Ø79mm + Ø64mm x L115mm (Camera Head only)

Dropdown Clearance

Requires least 4" in diameter for Camera only w/ no Extra LED Light assembled

Warranty

One Year Full Warranty including Parts & Labor

Parts Includes

All devices pre-assembled on a Pole including Camera on a cable w/ Braket Unit, Video Rrecording Monitor w/ Pole Mount Case Unit, & Pole mount Switch Box including Rechargeable Battery assembled inside, All accessories, & Operation manual

Replacement Devices

click to enlarge...

* Rechargeable Li-ion DC 12V Battery w/ Universal AC/DC Charger
* Encased w/ On-off switchable case
* Overcharge & Over-discharge protected circuit
*
Click here to review more product details & purchase

* Hybrid 1024 X 600 Pixel  7" LCD Screen
*
Video Recording Pixels:1691920* 1080p
* Stores images on a Micro SD card supported up to 128GB
* All functions controlled via OSD menu
* Click here to review
more product details & purchase

* Telescopic pole requires only a screw driver to assemble or disassemble
   the camera and cable from the pole
* Components consist of Water Resistant Fiberglass Pole, Die cast Metal Thread, &
   Anodized Aluminum Sliders
*
The camera holding bracket features 13-postion and 270 degree adjustable angle.
*
Click here to review more product details & purchase
