   All-Purpose Telescopic Pole Video System w/ Natural White or IR LED Light

Ideal to view unreachable impossible-to-see total-dark and large viewing areas
OK for Saltwater Environments & High Quality Industrial Video

Underwater Athletic Movement, Boat Inspection, Check anchor set, Marine Life observation
Bridge & Dam inspection, Tank inspection, Docks & pier surveillance, Whale Watch, Fish Search
Search & Rescue, Inspect & Monitor Swimming Pool, Swamps, river, & lake watch, Boat inspection
Underwater farm surveillance, Create videos of Underwater Actions, Check crab pots & lobster traps
Exploring shipwreck & submerged objects, Discover treasure, Cave search, Rain forest watch, Storm Watch

Special Window eliminates LED-light Reflection completely & Best for view object in Total Darkness & Murky Water
telescopic pole video system underwater pole inspection video
Easy Disassembling Camera Head & Cable from Pole offers you Convenient Versatility
raid cam, chimney inspection video, toxic tank inspection, bird nest watch, burrow inspection, wahel watch, fish finding camera





Choose one from the dropdown option box below, then click "Add to Cart" button to check out

Unit
Price
"Review more details about assembled devices listed at the bottom of this page"



Item#

ENC-135AW   ---Preorder to built in house & ships out within 3~10 working days---

Description

All-Purpose Telescopic Pole Video System w/ White Natural LED Light, HD Video Recording Monitor, & Battery Pack on 4~8ft Telescopic Pole

Item#

ENC-135BW   ---Preorder to built in house & ships out within 3~10 working days---

Description

All-Purpose Telescopic Pole Video System w/ White Natural LED Light, HD Video Recording Monitor, & Battery Pack on 6~12ft Telescopic Pole

Item#

ENC-135CW   ---Preorder to built in house & ships out within 3~10 working days---

Description

All-Purpose Telescopic Pole Video System w/ White Natural LED Light, HD Video Recording Monitor, & Battery Pack on 8~23ft Telescopic Pole

Item#

ENC-135AR   ---Preorder to built in house & ships out within 3~10 working days---

Description

All-Purpose Telescopic Pole Video System w/ 940NM Invisible IR LED Light, HD Video Recording Monitor, & Battery Pack on 4~8ft Telescopic Pole

Item#

ENC-135BR   ---Preorder to built in house & ships out within 3~10 working days---

Description

All-Purpose Telescopic Pole Video System w/ 940NM Invisible IR LED Light, HD Video Recording Monitor, & Battery Pack on 6~12ft Telescopic Pole

Item#

ENC-135CR   ---Preorder to built in house & ships out within 3~10 working days---

Description

All-Purpose Telescopic Pole Video System w/ 940NM Invisible IR LED Light, HD Video Recording Monitor, & Battery Pack on 8~23ft Telescopic Pole

Specification:   *Subject to change without prior notice

Image Sensor

Sony 1/2.8" NVP2441+IMX307

TV Output

NTSC or PAL switchable

FPS

NTSC: 30fps /  PAL: 25fps

Recording Format

AVI

Recording Pixels

1920* 1080p

Video Output

75ohm+10%

Lens

Default 3.6mm Lens (Other narrower or wider FOV lens options are available upon request)

Lens Focus

Default: Appx. 3 inches from the camera lens to infinity * The focus range cab be customized upon a request w/ customization fee & this will help to view objects in that certain distance range with  the maximum clarity.

Day Visibility

Appx. 3 inches from the camera lens to infinity (Adjustable upon request)

Luminance S/N Ratio

Over 48dB (AGC off)

Gamma Correction

r = 0.45

Electronic Shutter

1/60~1/100,000/Sec

LED Light

* Invisible 940NM or 950NM IR-LED: Shows no red glow on the tip of IR LED when it turned on and the IR light beam is also   completely invisible to human eyes. It is the best for the complete undetected video surveillance and viewing object in close range in the dark.

*
Strong 850NM IR-LED: Shows red glow on the tip of LED when it's on, but the emitting IR-light beam is invisible to human eye and it produces a longer emitting power than the invisible 950NM IR-LED. It is suitable for the undetected surveillance video and viewing objects that are in long range in the dark.

*
White LED:
The white light beam is seen by human eyes exactly same as what you see from a conventional LED flashlight and it it the best when objects are viewed in color at night as they seen in daylight.

LED Beam Travel Distance in Air

* 850NM Strong Infrared LED - Appx. 40~50ft

* 940NM No Red Glow Infrared LED - Appx. 30~40ft

* White LED - Appx. 50~ 60ft

Light Control

* White LED --- Brightness adjustable & Turned On-Off manually w/ Built-in Dimmer Switch

* IR LED --- Automatically turned on-off controlled w/ Built-in CdS sensor & alos turned on-off manually w/ Built-in dimmer switch

Power Consumption

DC 12V±1V / 70mA

Minimum Illumination

Starligh 0.0001 LUX when LED off

Cable

5mm Industrial Waterproof Cable

Camera Housing

Aluminum Anodized w/ UV Resistance High Tempered Metallic Paint Coat

Operating Temp.

-10ºC ~ 50ºC

Storage Temp.

-20ºC ~ 60ºC

Housing IP Rate

IP-68 (Dust tight & Protected against continuous immersion in water, or specified by the user)

Dimension

telescopic pole video inspection systemØ52 x57mm (Ø2” x 2.25”) - Camera Head only

Weight

115g (4oz) - Camera Head only

Dropdown Clearance

Requires least 2.5" in diameter

Warranty

One Year Full Warranty including Parts & Labor

Parts Includes

All devices pre-assembled on a Pole, All available accessories, & Operation manual

Replacement Devices

click to enlarge...

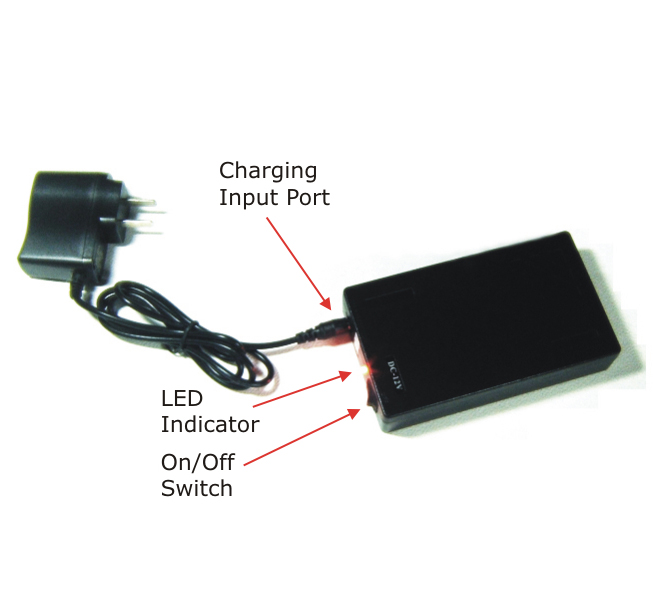

* 12hr Capacity at LED Light-on in continuous use
*
Rechargeable Li-ion DC 12V Battery w/ Universal AC/DC Charger
* Encased w/ On-off switchable case
* Overcharge & Over-discharge protected circuit
*
Click here to review more product details & purchase

* Hybrid 1024 X 600 Pixel  7" LCD Screen
*
Video Recording Pixels:1691920* 1080p
* Stores images on a Micro SD card supported up to 128GB
* All functions controlled via OSD menu
* Click here to review
more product details & purchase

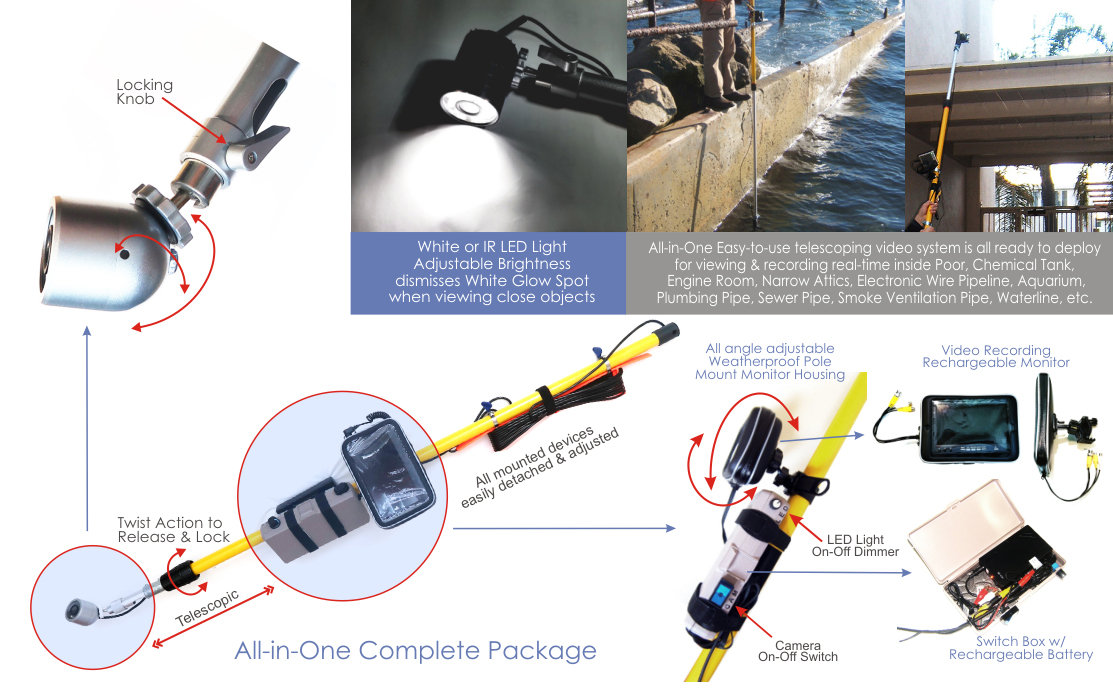

* Telescopic pole requires only a screw driver to assemble or disassemble
   the camera and cable from the pole
* Components consist of Water Resistant Fiberglass Pole, Die cast Metal Thread, &
   Anodized Aluminum Sliders
*
The camera holding bracket features 13-postion and 270 degree adjustable angle.
*
Click here to review more product details & purchase
