 Handheld Portable Color TFT-LCD Viewer w/ Built-in 2.4GHz 4-CH A/V Receiver & Antenna

Keep an eye on baby, children, the front door, pool & more from almost anywhere!

The Mobile Viewer combines portability with the convenience of wireless surveillance.
The Viewer is your own handheld, portable color monitor and is compatible with many 2.4GHz wireless cameras.
The receiver displays high resolution color LCD images and transmits audio from cameras within a range of
30 - 50m (100 - 150ft). The Swann Mobile Viewer takes wireless monitoring and convenience to a new level.

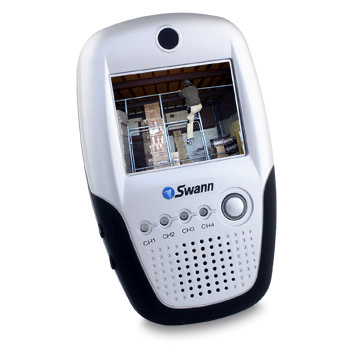

click to enlarge...



Our Price $30.50 off >

US$298.50

Regular Price >

US$329.00

General Specification

Item# ERX-004
Channels: 4 User Selectable Channels
Operating Frequency: 2.414 / 2.432 / 2.450 / 2.468 GHz
Intermediate Frequency: 480MHz
Frequency Stabilization: 100KHz
Receiving Sensitivity: <-85dBm
User Selectable Channels: 4 User Selectable Channels

Signal System (Automatic)

NTSC for USA, Canada, Asian countries etc... / PAL for Eastern Europe & France, etc...

Radiated Power CE / FCC / C-tick compliant
Antenna Type Built-in Omni Directional - 50 ohm SMA
Antenna Connector: None
Operating Distance: Up to 300ft in Line of Sight
Video Connector Format: RCA - Female
Video Impedance & Level: 75 Ohms @ 1 Volt Peak to Peak
Audio Connector Format: RCA - Female
A/V Video input/output - 1V p-p 75 ohm / Audio input/output - 1V p-p 600 ohm
Temperature Range 33 ~ 122F (0 ~ 50C)
Weather Proof No
Operating Voltage 5 Volts DC 2Amp
Current Consumption 700mW
Dimensions 130mmx80mmx38mm
Weight 250g (8.75oz)
Includes: Handheld Viewer,  Earphone, Cable with RCA Connectors, Charger Stand, In-Car Charger for Stand, Power Adapter, Quick Start Guide,- Theft Deterrent Stickers x4

*Specifications, parts, design may can be modified without prior notice.
*To download the step-by-step instruction manual, please request it via following email, support@EZspyCam.com along with your order ID# or Invoice#.
* Click the following link or paste it to you web browser to review Frequency Comparison Chart.
http://www.EZspyCam.com/Download/Freq_Perform_Comparison.pdf

*Click the following link or paste to your web browser to review Samples of Installation Plan.
http://www.EZspyCam.com/Download/Wireless-Samples-Inst-Plans.pdf
1-Year warranty will not cover if the equipment malfunctions that caused by improper installation.
