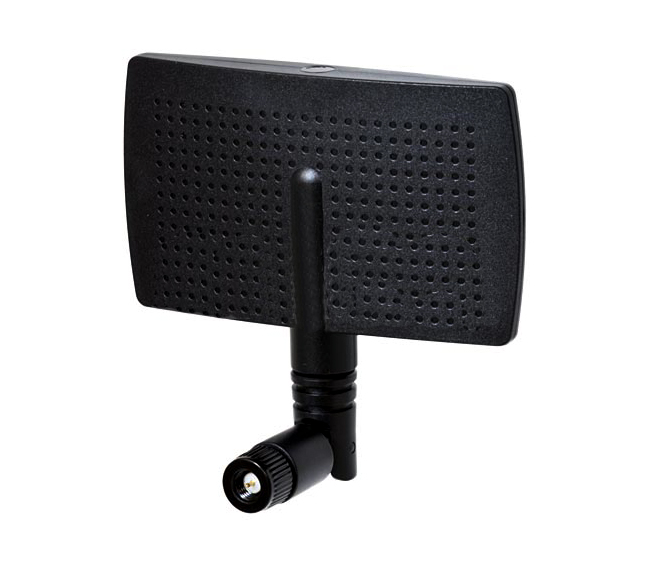

5.8GHz 8dB Desktop Directional Antenna w/ 18" cable & Magnetic Mount

Designed to connect to 5.8 GHz video/audio receiver, this series of specialty
antennas allows you to match the antenna to your specific application needs. Manufactured from
the highest quality materials to ensure superior electrical performance, mechanical durability and longevity.
Meet your application demands to improve and increase signal strength and transmission range.

95% Interference Free from Home or Office Radio Frequency Appliances vs. 2.4GHz


click to enlarge...      click to enlarge...


Our Price $10 off >


Regular Price >


General Specification

Item# EAT-001
Description 5.8Ghz 8dB Gain Mini Wireless Video Signal Boosting Antenna
Frequency Range: 5250 - 5900 GHz
Antenna Gain: 8.0dB
VSWR (Return Loss): <1.5:1
Polarization: Vertical - Linear
H Plane Bandwidth: 55 Degrees
E Plane Bandwidth: 40 Degrees
Impedance: 50 Ohms
Antenna Input Connector: SMA - Male
RF Cable: 36 inches
Construction: Silver ABS Antenna - Black Steel Base
Wind Loading Rate: Indoor Device ONLY
Dimensions: 2.8" x 4.0" x 2.75"
Weight: 7.0oz or 200g
Mounting Brackets: 210 degree pivoting
Warranty: 2 Year Warranty
Mounting Options: Magnetic Mount Base / Wall Mount Plugs with Drill Template
Includes: click to enlarge...Wall Mount Screw Set, Printed Owner’s Manual.
* Click the left photo to download and review Frequency Comparison Chart
* Click the left photo to download and review Samples of Installation Plan.

1-Year warranty will not cover
if the equipment malfunctions that caused by improper installation.
