Item#
|
EMD-0412
|
Description
|
4-CH
Mobile Shockproof DVR
|

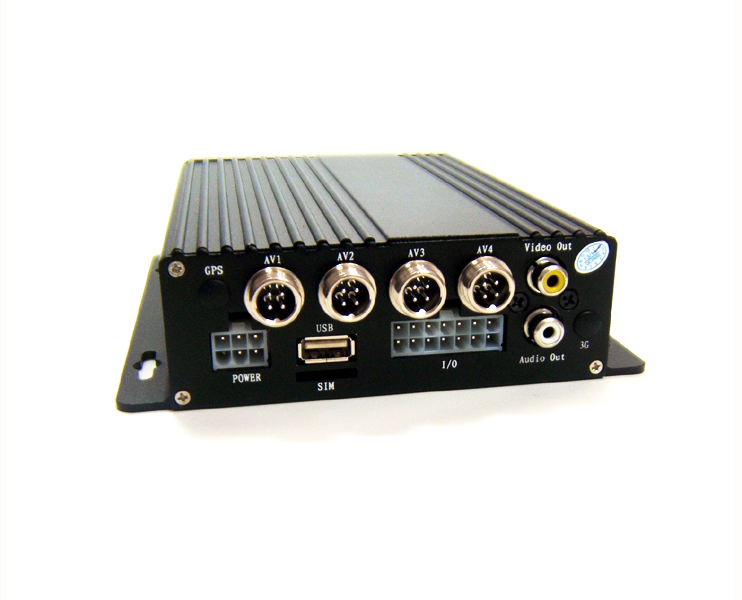

Video
Signal
|
Input
|
4
× RCA Vp-p 75Ω
|
Output
|
1
× RCA Vp-p 75Ω
|
Audio
|
Input
/ Output
|
1
× RCA Out / 4 × RCA In
|
Recording
Mode
|
Mono
PCM
|
Display
|
Display
Frame
|
120
FPS
|
Display
Resolution
|
720
× 480
|
Screen
Split
Mode
|
Full
or Quad
|
TV
System
|
NTSC
or PAL switchable
|
Recording
|
Mode
|
Duplex
(Simultaneous Recording / Playback / Live)
|
Video
Compression
|
H264
Main profile, Compressed resource: 75 frames D1/s (300 frames CIF/s)
|
Video
Resolution
|
CIF/HD1/D1
|
Recording
Method
|
Continuous,
Schedule, or Motion Detect
|
Recording
FPS
|
120
FPS
|
Video
Bit Rate
|
CIF:
384Kbps (low), 512Kbps (medium), 768Kbps (high)
HD1: 512Kbps (low), 768Kbps (medium), 1024Kbps (high)
D1: 512Kbps (low), 768Kbps (medium), 1024Kbps (high)
|
Audio
Bit Rate
|
8KB/s
|
Memory
Password
|
Assignable
|
Memory
ID
|
Changeable
|

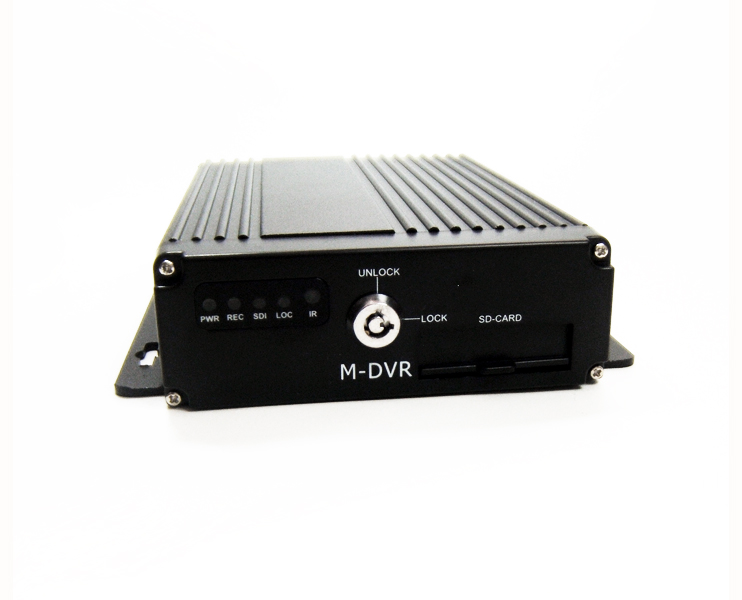

Storage
|
External
Lockable SD-Card supports up to 64GB
*
Must use a high performance SD-Card that sold by a renowned brand such
as "Kingston" or "SanDisk".
|
Playback
|
Playback
Mode
|
Live
& Playback, Playback
|
Playback
Screen Mode
|
Full
or Quad
|
Search
|
Search
by Date / Time List, Event List
|
External
Alarm Input
|
Alarm
Input : Terminal Block 1
|
Others
|
Remote
Control
|
IR
Remote Control, RS-485, RS-232
|
Power
Supply
|
12V
~ 24V detected automatically
|
Power
Consumption
|
Apprx.
1.0A, but recommended to use 1.5A above
|
Dimension
|
Set
: 159 x 105 x 28 (mm), Board : 138 x 91 (mm)
|
Weight
|
0.5
lbs
|

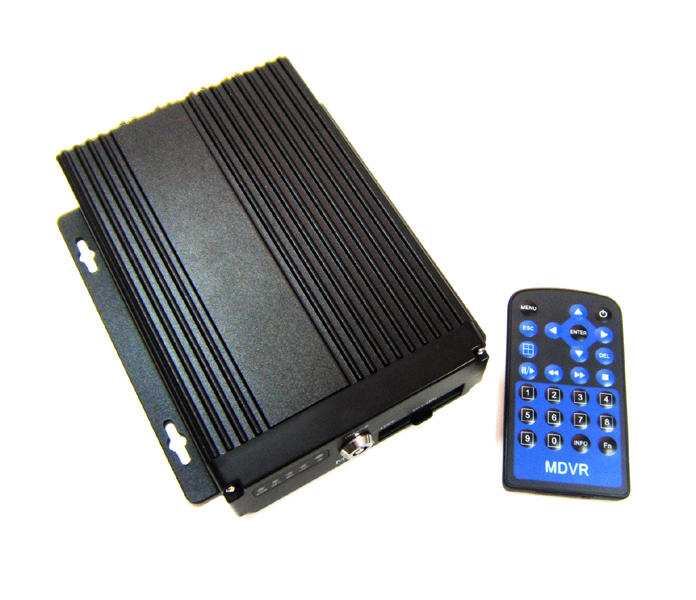

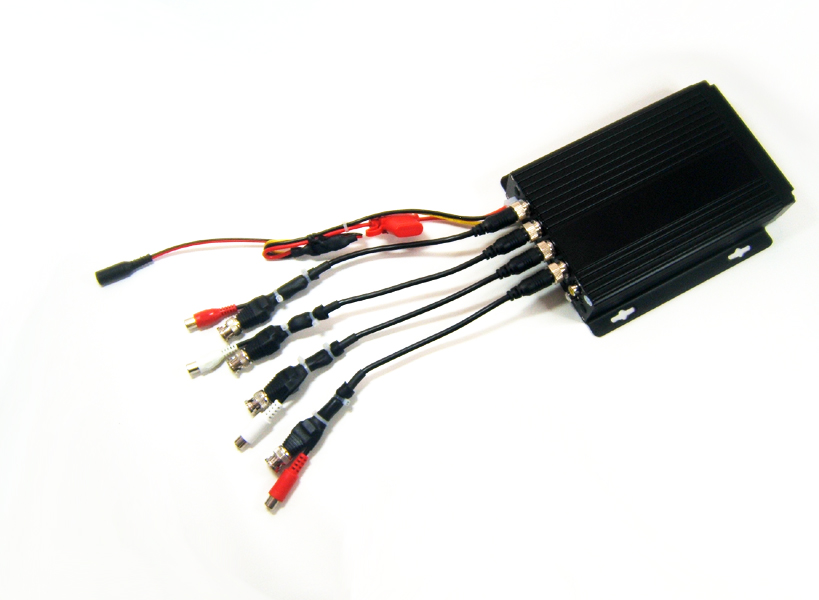

Parts
included
|
Wireless Remote Controller,
Software & Manual CD, A/V Cable Sets, Power Cable Set, AC/DC Power Adapter,
Storage Lock Key (x2), Quick
Starter Guide
|
|
*If
you lost and need to
download the latest instruction manual, firmware, or software, please request it via
following email, support@ezspycam.com
along w/ your order ID# or Invoice#.
|
