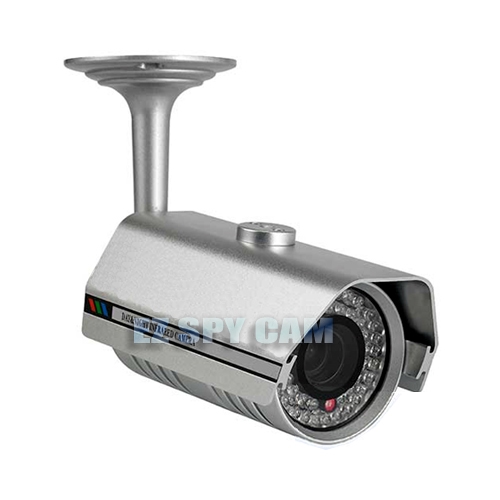

Ultra High 560TVL Resolution 4 ~ 9mm Varifocal Nightvision IR Cam


External Lens Control:

External lens control knobs on back of the camera make installation and setting up the camera easier.
The included 4 ~ 9mm auto-iris lens and adjustable mount gives you the best shot at any angle.

OSD Camera Setup:
IR 5800 Series have a small program built-in to the camera to help users to setup the camera function with ease. No more reading a manual and tipping dip-switches to configure the camera.

Weather Resistant & Rain-Sunshield:
The built-in removable sun shield that will help ensure you a clear picture and protect the camera from the elements.

IR-Corrected Lens:
Use a day & night or monochrome cameras for the IR corrected lenses. Regular color cameras will not be affected by the IR corrected lens. When using the day/night or monochrome cameras, nearly any outdoor, as well as some indoor applications, will require, or at least benefit from using IR corrected lenses. This is because many natural light sources also contain infrared light, lighting changes with a higher infrared, lower infrared, or without infrared at all. When using ordinary lenses, the result is a blurred, or in a worst case scenario, a completely unfocused picture.


click to enlarge...




Our Price $50 off >

US$269.00

Regular Price >

US$319.00

Item#

ENC-111

Description

Ultra High 560TVL Resolution 4 ~ 9mm Varifocal Nightvision Cam w/ 100ft Night Visibility



Viewing Angles

click to enlarge...
Refer the above pic of the viewing angle comparison to know how large area the applicable lens can see and click the following link to review the FOV comparison of all applicable lenses.
http://www.EZspyCam.com/R-img-FOV-variation.htm

Day Visibility

click to play...3 inches from the camera to infinity

Click the left image to play the video clip sample.

Also click the following link or paste it to your web browser to re view all available night vision image samples.
http://www.EZspyCam.com/R-img-daynightvision.htm

LED

48 Strong 850NM IR LEDs supports Night Visibility up to 100ft

CdS Sensor

Makes LEDs turn on-off at about 10 LUX automatically

Resolution

580(Color) / 600(B/W) TV Lines Horizontally

Image Pick-up Device

Sony 1/3 inch Super HAD CCD / Samsung original module

Picture Elements

811(H) x 508(V) 410K pixels

Effective Picture Elements

768(H) x 494(V) 380K pixels

Scanning Area

3.65(H) x 2.74(V) mm

Scanning System

2:1 Interface/ 525 Lines / 60 Fields / 30 Frames

Iris Mode

DC Iris

Camera Housing

IP66 Weatherproof Housing

Lens

4 ~ 9mm Auto Iris Vari-focal Lens - External Adjustable

Minimum Illumination

0.3 Lux at F1.2 / 0.002 Lux (Sens-up x128) / 0 Lux (IR On)

Sync. System

Internal Only

Video Connector

BNC Jack

Video Output

1.0 Vp-p Comp. 75Ω

Electronic Iris

x128 ~ 1/60 sec ~1/120,000 sec. (Sens-up and Sens-up limit is selectable / Flickerless

OSD

Built-in

Backlight Compensation

Low / Middle / High / Off Selectable

Gain Control

Low / Middle / High / Off Selectable

DNR

Low / Middle / High / Off Selectable

White Balance

ATW / AWC / Manual / Outdoor (1,800K~10,500K)

Day & Night

Auto / On

Gamma

r=0.45

S/N Ratio

50dB (AGC Off, Eight On)

Operating Temp.

-10C ~ 50C

Power Source

DC 12V

Power Consumption

200mA (IR LED off) / 1700mA (IR LED On)

Warranty

One Year Full Warranty including Parts & Labor

Camera
Set Includes

Mount Bracket Set; Removable Sunshield; AC/DC 12V Power Supply; Manual

Special Instruction

*This camera never should be submerged and exposed under heavy storm environment for long period.

*Click the following link or paste it to you web browser to review a proper way to purchase suitable cameras or accessories for your need.
http://www.EZspyCam.com/PG-NightVsionCam.htm

*Click the following link or paste to your web browser to make sure to review Installation Guide.
http://www.EZspyCam.com/IG-NV-VarifocalCam.htm

1-Year warranty will not cover if the camera or cable malfunctions that caused by improper installation.
