Mobile Armored PTZ Patrol Camera in Rugged Shockproof Housing w/ x36 Optical Zoom

Ideal to install on Fast Moving Patrol Vehicles for Mobile Surveillance
Remote Controllable over Wired or Wireless RS-485 communication
Sony 960H Effio-P Ultra High 700 TVL Video Resolution / Built-in Strong Image Stabilizer
360 Endless Pan Rotation / 3.4~122.4mm x32 Auto Focus Optical Zoom Lens / IR-Cut Daynight Filter
0.001 Lux extreme sensitivity by D/N filter & DSS / MAX. 120/sec Pan speed / 63-Preset & Auto swing functions

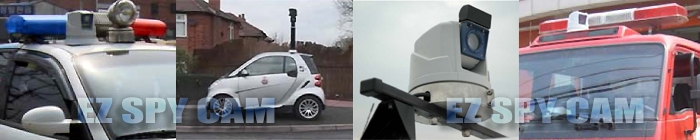

Perfect for Military Vehicle, UAV, Fire Engine, Battleship, Police Car, Ambulance, etc.

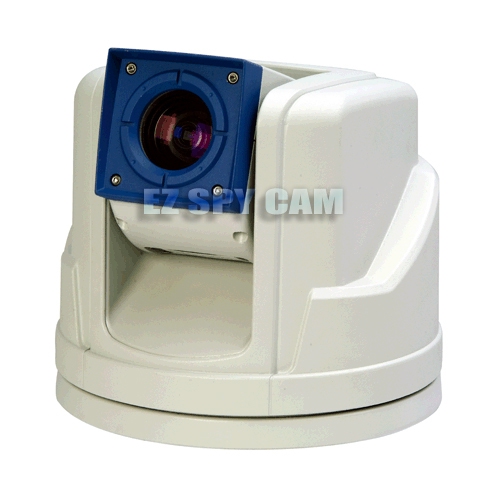

Vehicle Top Armored Mobile PTZ Camera --- click to enlarge ---Armored Mobile PTZ Camera --- click to enlarge ---





click to enlarge...





click to enlarge...                        click to enlarge...

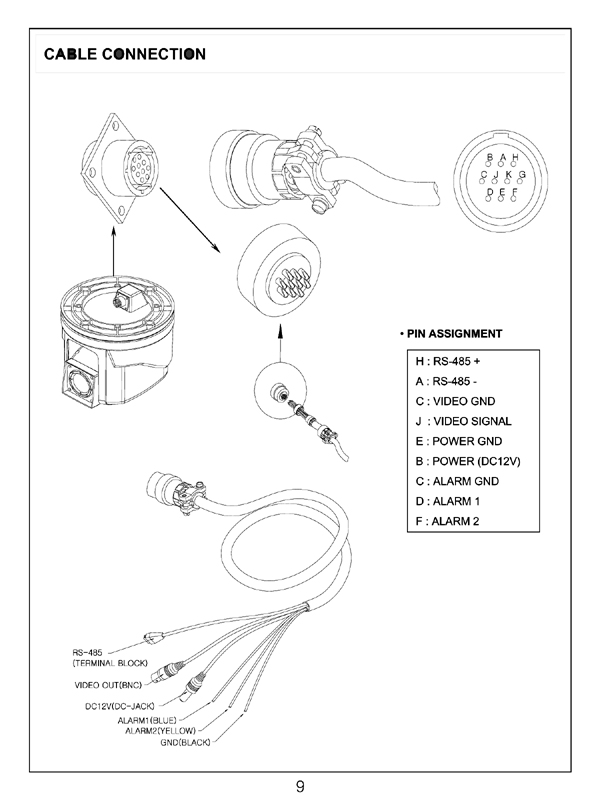

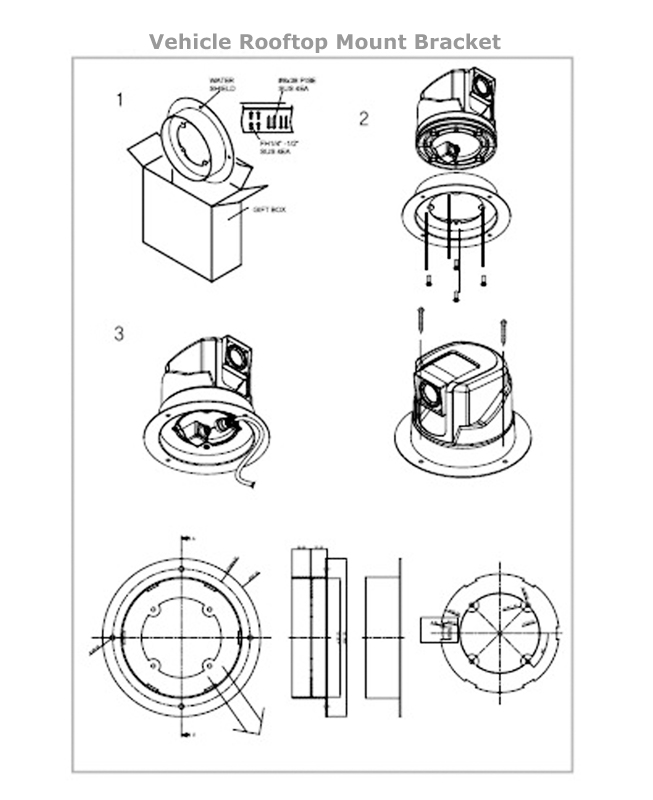

Plug-n-Play Cable Connection and Optional Vehicle Rooftop Surface Mount Bracket



Our Price $400 off >

US$2,590.00

Regular Price >

US$2,990.00



Item#

EPC-600-ST   ---Preorder to built in house & ships out within 2 ~ 5 working days---

Description

Mobile Armored PTZ Patrol Cam w/ x36 Optical Zoom



Protection Level

IP-66 Weatherproof, Dust Tight, & Shock-Resistant Die-cast Aluminum & O- Ring sealed

Corrosion Free

All internal parts are protected with epoxy powder coating

Image Sensor

1/4" Sony Super HAD Color CCD w/ Built-in Image Stabilizer

TV System

Switchable NTSC or PAL

Resolution

Horizontal 700TVL in Color / 800TVL in B&W

Click the right photos to view Real Video Clips

click to play...<<< View the actual PTZ mechanism that recorded w/ EMT-600 portable DVR monitor in  & controlled w/ EPC-301 wireless remote controller.

click to play...<<< Day video clip that viewed w/ the previous 480TVL version of EPC-600-ST  which controlled w/ EPC-301 wireless remote controller & recorded w/EMT-600 portable DVR monitor.

Pixels

NTSC: Effective: 976H x 496V / Total: 1020H x 596V
PAL: Effective: 976H x 582V / Total: 1020H x 596V

Lens Spec

x36 Optical Zoom / f=3.4mm ~ 122.4mm (F1.4 ~ F4.5)
Digital Zoom x32, Total x1,152 Zoom

Focus Range

Focus Distance - 1 inch when Manual or One Push Focus Mode / 30cm (1ft) when Auto Focus Mode

Lens Focus

Switchable Auto, Push Auto, or Manual

Image Orientation

Image Flip function adjusted via OSD setting for installing the camera downward or upward

Other Features

Near Limit, AF, AE, WB, Digital Zoom, Image Stabilizer, Preset Freeze, BLC, Daynight Filter, WDR

Min. Illumination

0.1 LUX (Typical 30 IRE), 0.02 LUX (ICR Mode) / 0.001 LUX (DSS B/W Mode)

S/N Ratio

Over 50dB

Communication

RS-485 - Multiple Protocol Supported (Auto Detection)

Pan

Noiseless 0 - 360 (Endless) Rotation & Auto Flip

Pan Speed

Preset - 110/ sec. +/-0.1 Accuracy

Tilt Range

-45~90 (64 steps proportional to zoom)

Tilt Speed

Preset - 60 /sec. +/-0.05 Accuracy

Display

4 Area Title / Zone Title On/Off (Start / End Zone)

Auto Scan

4 Programmable Speed and Diagonal Scan

Preset

63 positions & Auto Swing Function ( Less than 0.1 Accuracy)

Guard Tour

8 Guard tours, Consisting of 63 presets and functions

Pattern

4 Patterns

Image Orientation

Image Flip function adjusted via OSD setting for installing the camera downward or upward

Alarm In

2 Alarm ( NO/NC, Priority)

Alarm Out

2 Relay Out ( Hold, Latch)

Camera ID

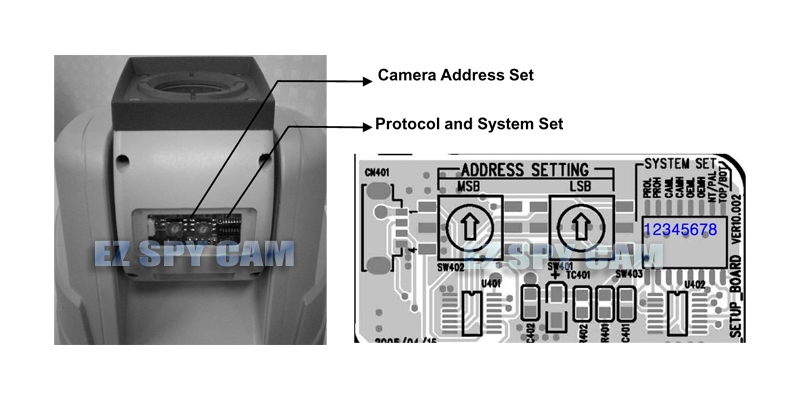

Addressable from 0 ~ 255

Fan & Heater

Built-in - 42W

Power

DC11.5V ~ DC30V by DC-DC Convertor

Power Consumption

500mA / 2.0A Peak

Operating Temp

-30C ~ 50C

Humidity

0 to 90% RH (Non-condensing)

Certification

CE, FCC

Dimension / Wg't

190mm x H151mm / 3.75Kg

Parts Includes

Complete Cable Set, AC/DC 12V Power Supply, Instruction Manual

*Click here or the left picture to download and review Typical PTZ connection diagram.
