Item#
|
EPC-700
---Preorder to built in house & ships out within
2 ~ 5 working
days---
|
|
Description
|
Daynight

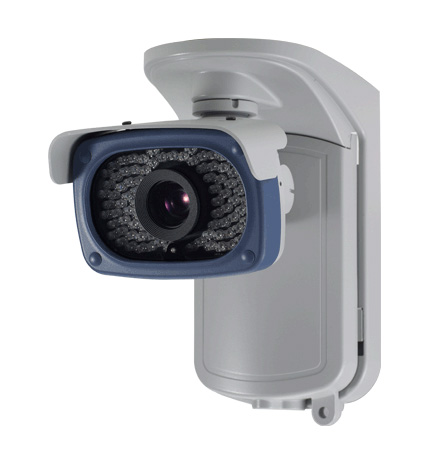

Infrared PTZ Security Camera in IP-66 Waterproof Housing
|
|
Features:
|
-

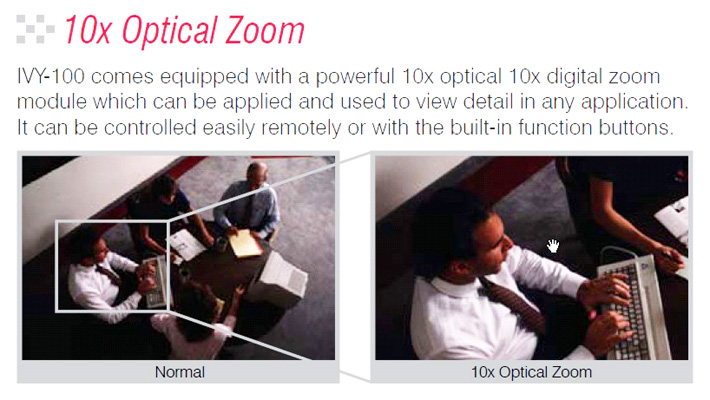

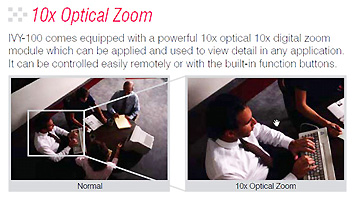

1/4"
Sony 520TVL (590TVL in B/W) / Optical
10x (F3.8~38mm) and 10x Digital Zoom Lens
-

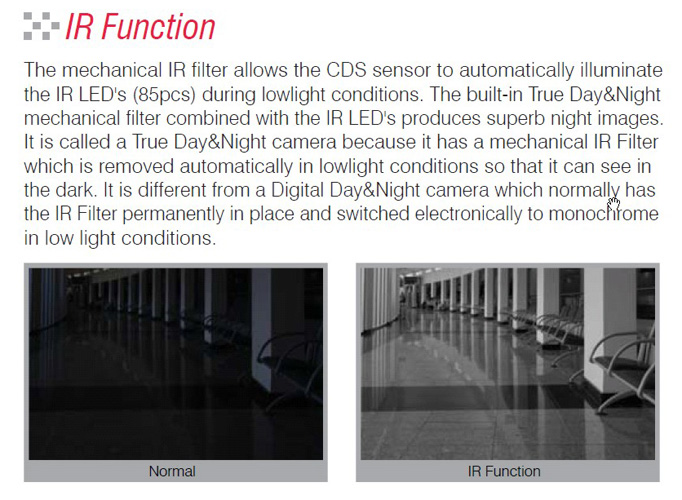

Built-in
85pc strong IR-LED light allows to view objects up to 170ft range
in the total darkness
-
ICR
feature to work under the IR light environment & produce the
best night video outcome
-

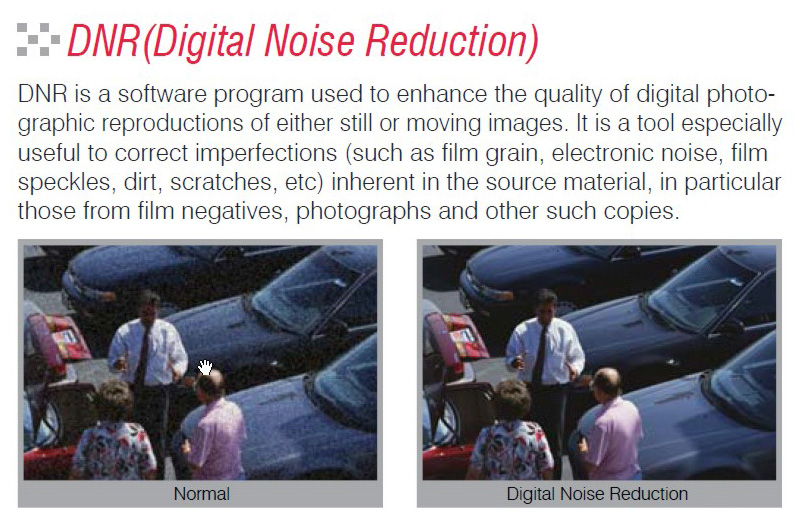

DNR
(Dynamic Noise Reduction) feature enables to increase the
recording storage capacity
-
IP-66
(Dust free & Waterproof Level) camera housing constructed for
all harsh weather conditions
-

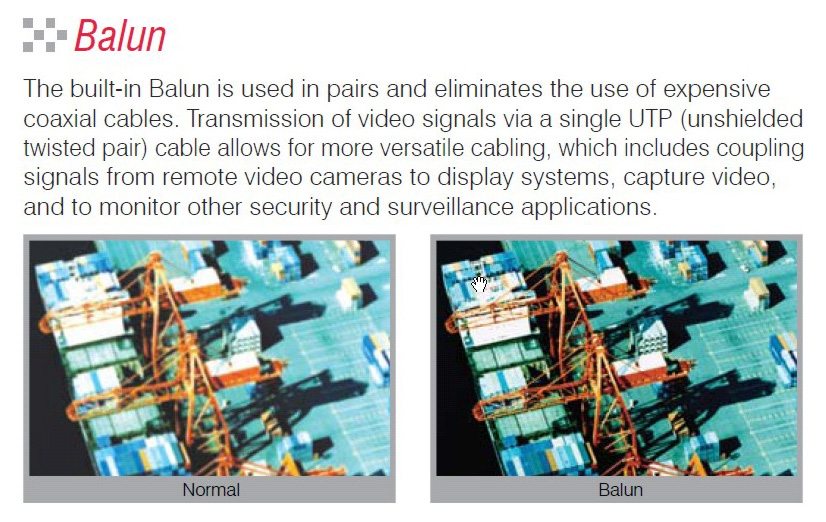

Built-in
Balun allows to transmit videos over long distance up to miles via
Inexpensive Single UTP cable in Same HD Quality as transmitting
over Expensive Coaxial cable
-
Dual
Power DC12V or AC24V / Easy OSD camera settings / Built-in Fan
& Heater
|
|
CCD
|
Sony
1/4” Super HAD CCD
|
|
Max.
Pixels
|
811(H)
x 508(V) 410K
|
|
Effective
Pixels
|
768(H)
x 494(V) 380K
|
|
Horizontal
Resolution
|
520
TVL (Color) / 590TVL (B/W)
|
|
Synchronization
|
Internal
/ VD-Lock
|
|
Scanning
System
|
2:1
Interlace, 525 Lines, 60 Fields / 30 Frames
|
|
Scanning
Frequency
|
Horizontal:
15.734KHz / Vertical: 59.94Hz
|
|
S/N
Ratio
|
50
dB (AGC Off, Weight On)
|
|
Zoom
Ratio
|
x10
Optical Zoom / x10 Digital Zoom (Total: x100 Zoom)
|
|
Focal
Length
|
F2.8,
f=3.8~38mm
|
|
Min.
Focus Distance
|
1.0M
|
|
Angle
Field of View
|
Horizontal:
Apprx. 51.2°(Wide)~5.58°(Tele) / Vertical: Apprx. 39.3°(Wide)~4.27°(Tele)
|
|
Min.
Illumination
|
0.7Lux
@ F1.8 (Color) / 0.1Lux @ F1.8 (B/W), 50 IRE
|
|
Day
& Night
|
Color
/ Auto1 / Auto2 / B&W (ICR Filter Change)
|
|
IR
LED
|
85pcs.
850nm 20 degree 5Ø
|
|
CdS
Sensor
|
Selectable
from 8 steps (45, 35, 25, 20, 15, 10, 5, or 1LUX) to turn on/off the
built-in IR-LED light automatically
|
|
Video
Output
|
CVBX:
1.0Vp-p / 75 ohm
|
|
Focus
|
Manual
|
|
Cam
Title
|
On
/ Off (15 characters displayed)
|
|
Cam
ID
|
255
ID Selectable
|
|
Daynight
|
Auto
/ Color / B/W (ICR)
|
|
Iris
|
Auto
/ Manual (Full Open)
|
|
Electronic
Shutter Speed
|
ESC
(x128 ~ 1/60 ~ 1/20,000 sec.) / Manual (x128 ~ 1/60 ~ 1/120,000 sec.)
/ Flickerless (1/100 sec.)
|
|
AGC
|
Low
/ Med / High / Off
|
|
White
Balance
|
ATW
/ AWC / Manual (1800°K x 10,500°K)
|
|
BLC
|
Low
/ Middle / High / Off
|
|
Flickerless
|
Selectable
|
|
DNR
|
Low
/ Middle / High / Off
|
|
OSD
|
Built-in
|
|
Pan
/
Tilt
Range
|
Pan
Swivel: 180° / Tilt Swivel: 0~85°
|
|
Fan
& Heater
|
Built-in
(40°C On, 30°C Off / 5°C On, 15°C Off)
|
|
Privacy
Function
|
On
/ Off (Max. 4 Programmable Zones)
|
|
Flip
|
Vertical,
Horizontal, Vertical-Horizontal, or Off
|
|
Housing
Material
|
Aluminum
|
|
Communication
|
RS-485
or RS-232 Tx Enable Sginal
|
|
Baud
Rate / Protocol
|
19,200bps
/ Pelco-D
|
|
Power
Consumption
|
DC
12V – 2.0A (24W) or AC24V – 1.6A (38W)
|
|
Operating
Temp. / Humidity
|
-10°C~50°C
w/ Heater & Fan On / 20% x 80% RH
|
|
Storage
Temp. / Humidity
|
-10°C~60°C
/ 20% x 95% RH
|
|
Protection
Level
|
IP-66
|
|
Dimension
|
130mm
× H232mm xD180mm
|
|
Weight
|
2.5kg
|
|
Parts
Included
|
PTZ
Camera Unit, Sunshield w/ Screws Set, AC/DC 12V-3.0A Power Adapter,
Mounting Screws, Manual
|
