Mobile OFDM Dual Diversity 802.11a Wireless Elevator Video System Range up to 200 Floors

Revolutionary pre-configured plug & play design / Transmits Real-Time DVD quality video up to 200 floors
Digital immunity to signal interference / Lightning fast hardware based MPEG-4 encoder & decoder
No maintenance or inspections required / Deters vandalism, trespassing & other criminal behavior
No connections to the elevator mechanics or traveling cable / FCC & IC approved for license free use
Industry leading 5-tier input power management system / 64 Bit encrypted data stream (optional 128 bit)
Automatic system pairing and on screen status display / Easily identify employees, residents, and visitors

Interference Free, Pre-configured & Plug-n-Play, Transmit DVD quality real-time video & Stereo Audio

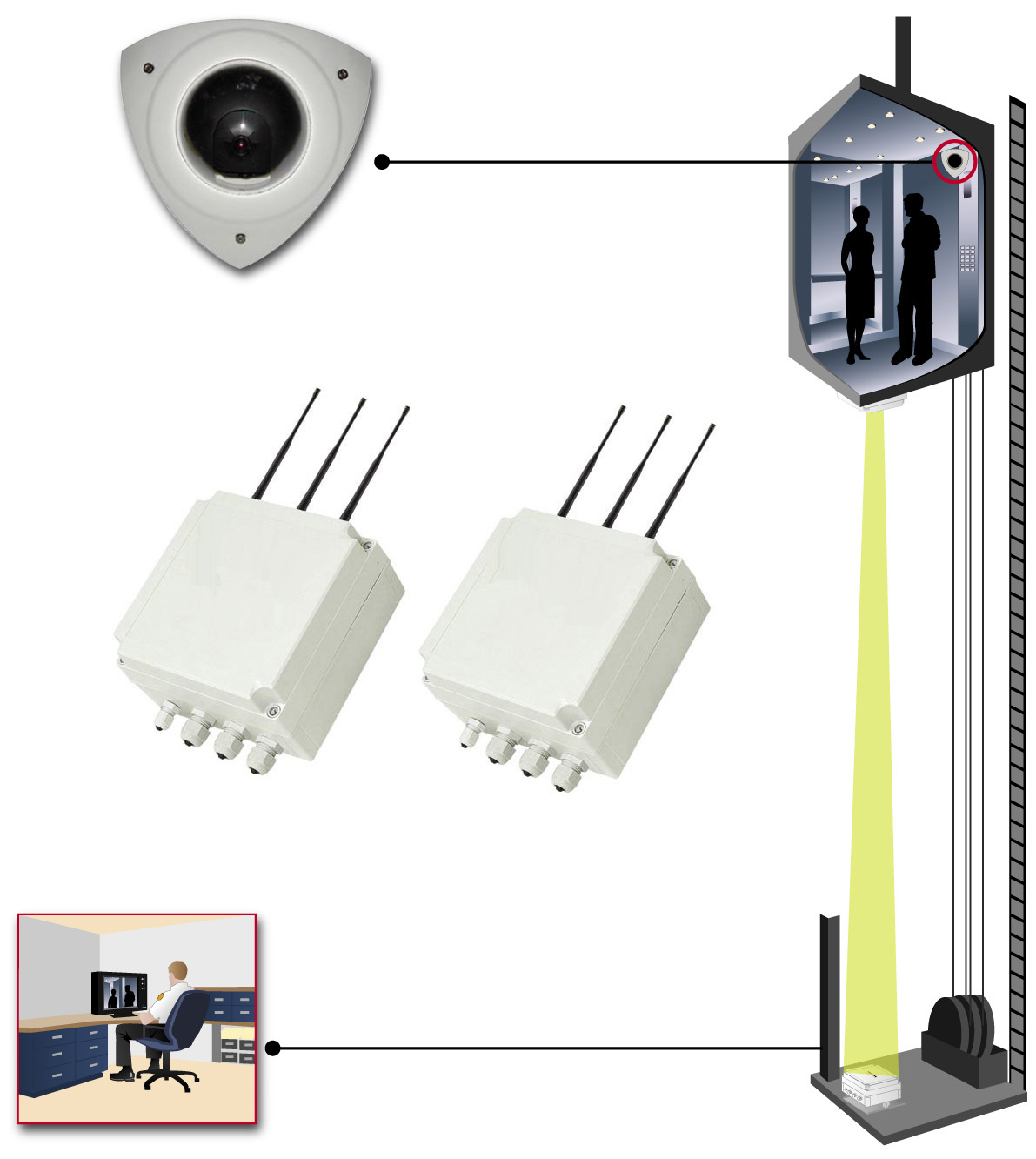

click to enlarge... Elevator CCTV Security Video System - EWR-M001 click to enlarge... Mobile Elevator Video Camera - EWR-M001

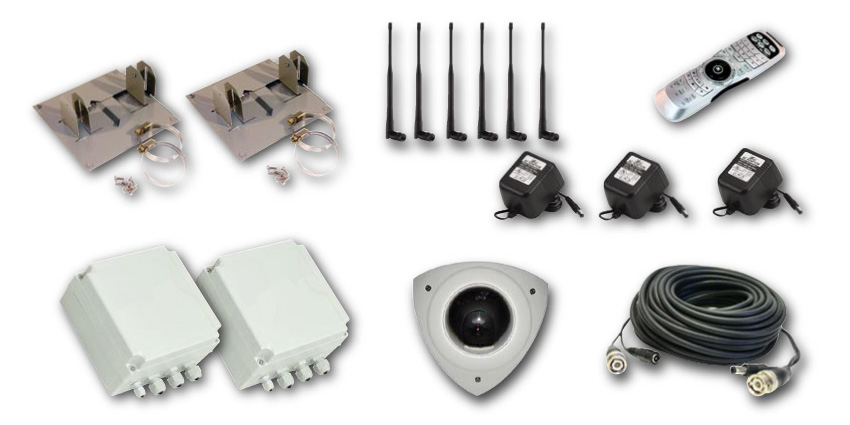

Parts Included

click to enlarge... Wireless Elevator Security Video System - EWR-M001

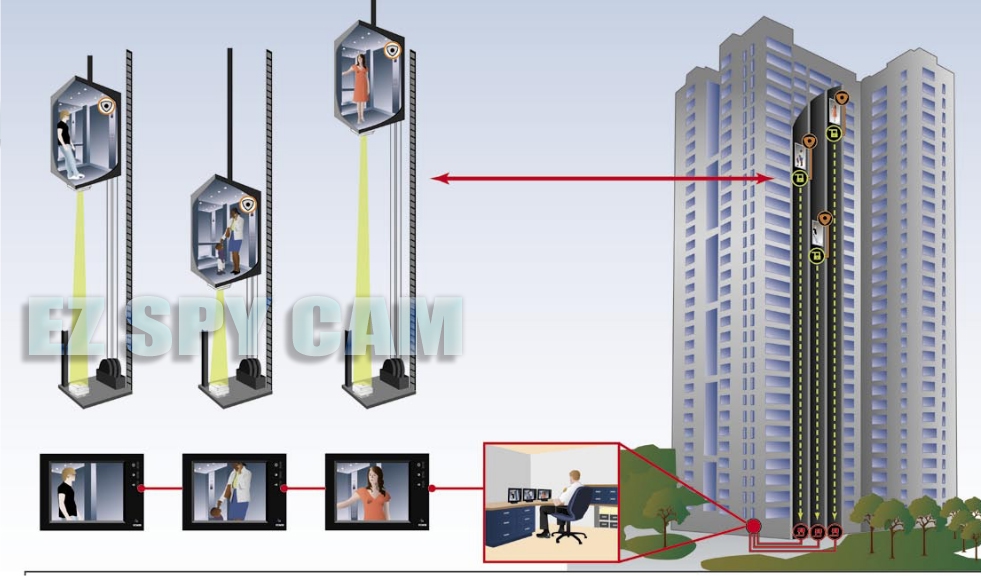

Application

Easy to Install



Our Price $500 off >

US$3,490.00

Regular Price >

US$3,990.00

General Specification

Item# EWR-M001 *Pre-order Required
Description Mobile OFDM Dual Diversity Wireless Elevator Video Surveillance System up to 200 floors

Interference Control:

Hopping technology allows to change the bandwidth automatically when same bandwidth interferes

Operating Frequency: Dual Radio 5.725GHz - 5.875GHz @ 20MHz Bandwidth
Frequency Control: Automatic Channel Selection
Protocol: 802.11a
Modulation Format: OFDM (BPSK, QPSK, 16QAM, 64QAM)
Security Authentication System: Private SSID 64 Bit Encrypted Data Stream (WEP) Optional 128 Bit
Data Rate: 6 mbps - 54 mbps
Latency: Less than 0.5 sec
Video Compression Format: Hardware Based MPEG-4
Frame Rate: 30fps NTSC / 25fps PAL
Video Resolution: 720 x 480 NTSC / 720 x 576 PAL
Radiated Power: 450mW
Range: 200 Floors
Antenna Type: 6 x 3dBi Omni-Directional Rubber Duck Antennas
E Plane Beam Width: 50 Degrees
H Plane Beam Width: 360 Degrees
Receiver Sensitivity: 54 mbps @ -72dBm to 6 mbps @ -90dBm
Video Connector: BNC Male 75 OHMS @ 1 Volt Peak-to-Peak
Stereo Audio Connector: BNC Male 600 OHMS @ 1 Volt Peak-to-Peak
Temperature Range: -40F to +160F
Power Supply Included: Switching 12VDC @ 2 Amps - CEC Class IV
Current Consumption: 0.8 Amps
Operating Voltage: 12 - 30 Volts AC or DC
Surge Protection: ESD Surge / Lightning Protected up to 1,500 Watts
Enclosures: Rugged IP-67 Rated All Weather Enclosure
Mounting Brackets Included: Two Universal Wall / Pole Mount - # BRK-250
Dimensions: 7.0" x 7.0" x 4.5" Each Enclosure
FCC / IC Approved: License Free - Professional Installation
Camera Construction Vandal Proof IP-66 Rated Enclosure
Camera Current Consumption <130mA
Camera Dimensions 8" x 8" x 3"
Camera Resolution 480 Lines
Camera Type Corner Mount 1/3" Color SONY CCD
Camera Weight 1,650g or 3.6lbs
Electronic Shutter 1/50 ~ 1/10,000 Sec.
Lens Type Board lens 2.8mm @F2.0
Minimum Illumination 0.4 Lux / F1.2
S/N Ratio >48dB (AGC Off)
White Balance Automatic
Parts Includes ALL WEATHER TRANSMITTER, ALL WEATHER RECEIVER, 25 POWER / VIDEO CABLE, SIX RUBBER DUCK ANTENNAS, THREE POWER SUPPLIES, TWO UNIVERSAL MOUNTING BRACKETS, REMOTE CONTROL, CORNER MOUNT VANDAL-PROOF CAMERA, OPERATING INSTRUCTIONS, ONE YEAR LIMITED WARRANTY
