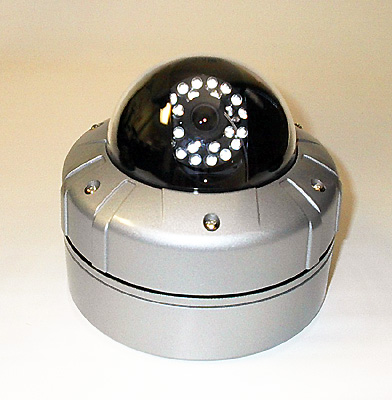

 Invisible Day Night Vision Vandalproof Dome Camera w/ 30ft Night Visibility

Ideal to view objects in 30 ft range & Impossible-to-see total-dark areas
Indoor & Outdoor Use / Invisible to Human Eyes
Home security, Business surveillance, Home alone Pet watch, School Security, Child Monitoring, Police Raid
Cash counter surveillance, Baby Watch, Office Surveillance, Infants safety, Property security, Animal Watch
Ground Troop Raid, Wild Animal video, Zoo keeping, Bird net watch, Garden watch, Natural Life observation
Backyard Watch, Outdoor security, Hidden surveillance, Spy video, Live video, Video surveillance, Nanny Cam

No Red Glow on the tip of LED, not as other do & Completely Stealthed in the darkness



click to enlarge...click to enlarge...click to enlarge...



Our Price $30 off >

US$219.00

Regular Price >

US$249.00

Item#

ENC-800

Description

Day Color Invisible Night Vision Vandalproof Dome Camera w/ 30ft Night Visibility

Image Sensor

Sony 1/3" Super HAD Color CCD

Applicable Lens

Selection from 4.3mm Board Lens Size

Viewing Angles

click to enlarge...
Refer the above pic of the viewing angle comparison to know how large area the applicable lens can see and click the following link to review the FOV comparison of all applicable lenses.
http://www.EZspyCam.com/R-img-FOV-variation.htm

LED

24 Invisible 950NM IR LEDs (Life span - Appx. 20,000hrs)

CdS Sensor

Makes LEDs turn on-off at about 10 LUX automatically

Night Visibility

click to play...30ft in the total darkness when LEDs are turned on.

Click the left image to play the video clip sample.

Also click the following link or paste it to your web browser to re view all available night vision image samples.
http://www.EZspyCam.com/R-img-daynightvision.htm

Day Visibility

click to play...3 inches from the camera to infinity.

Click the left image to play the video clip sample.

Also click the following link or paste it to your web browser to re view all available night vision image samples.
http://www.EZspyCam.com/R-img-daynightvision.htm

Video Resolution

400 TVL (270K pixel)

Video Out

1Vp-p Composite Video 75 ohms

Video Connector

RCA Jack

Minimum Illumination

0.01 LUX in Color (Daytime) / 0.000 LUX in B&W (Night)

Signal System

NTSC for USA, Canada, Asian countries etc...
(*Optional: PAL for Eastern Europe & France, etc...)

Electronic Shutter

NTSC=1/60~1/100,000/Sec (28 Steps) ; PAL=1/50~1/100,000/Sec (28 Steps)

Luminance S/N Ratio

Over 48dB

Special Feature

Auto Gain Control (AGC) / Auto Backlight Compensation / Auto Backlight Compensation

Weight / Dimension

2.6LBS (1.2kg) / 100(Dome)x150(Base)x145(H)mm (3.93x5.90x5.70)

Power Consumption

DC12V10% (350mA)

Operating
Temperature

0C ~ 40C (32F ~ 104F) ; Humidity - 10%RH ~ 80%RH

Warranty

One Year Full Warranty including Parts & Labor

Camera
Set Includes

Metal Mounting Bracket Set; Removable Sunshield; AC/DC 12V500mA Power Supply; Installation Guide; Spec Sheet

Special Instruction

*Click the following link or paste it to you web browser to make sure to review a proper way to purchase suitable equipments for your application.
http://www.EZspyCam.com/PG-NightVsionCam.htm

*Click the following link or paste to your web browser to make sure to review Installation Guide.
http://www.EZspyCam.com/IG-NV-VandalDomeCam.htm

1-Year warranty will not cover if the camera or cable malfunctions that caused by improper installation.
