Ocean Drop All-Purpose Underwater Video Camera w/ Super Bright White LED Light

Ideal to view unreachable impossible-to-see total-dark and large viewing areas
OK for Saltwater Environments & All Purpose Underwater Video Inspection

Underwater Athletic Movement, Boat Inspection, Check anchor set, Marine Life observation
Bridge & Dam inspection, Tank inspection, Docks & pier surveillance, Whale Watch, Fish Search
Search & Rescue, Inspect & Monitor Swimming Pool, Swamps, river, & lake watch, Boat inspection
Underwater farm surveillance, Create videos of Underwater Actions, Check crab pots & lobster traps
Exploring shipwreck & submerged objects, Discover treasure, Cave search, Rain forest watch, Storm Watch

Special Window eliminates LED-light Reflection completely & Best for view object in Total Darkness & Murky Water

click to enlarge...

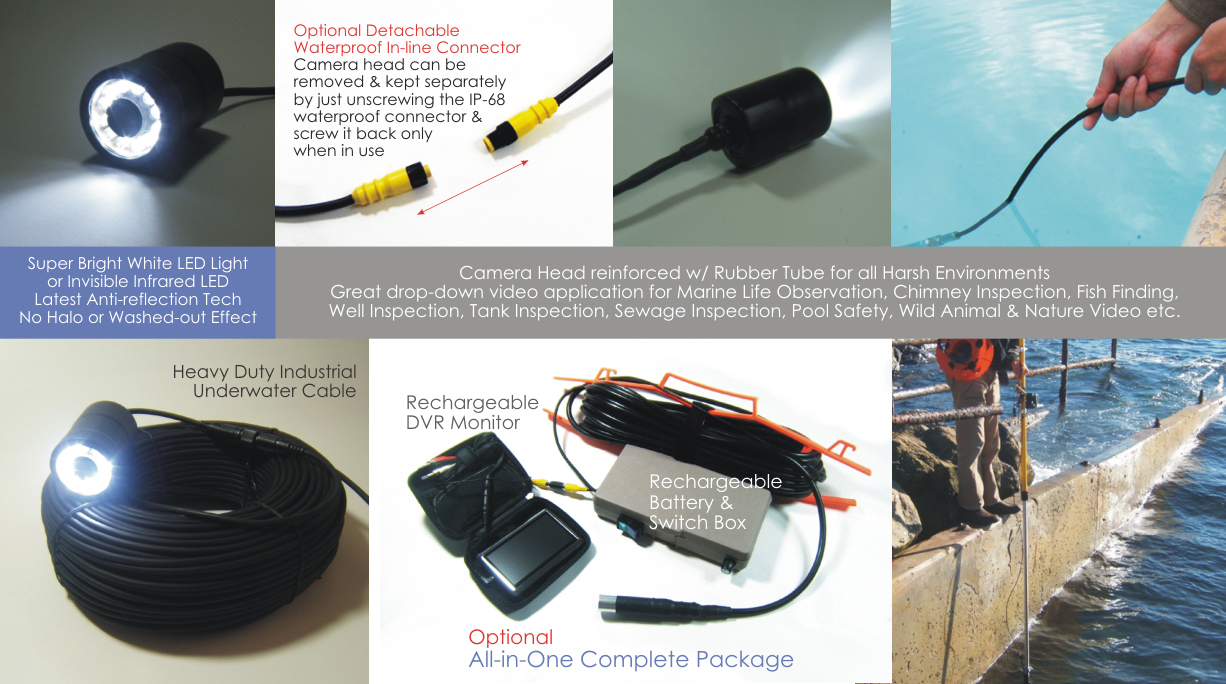

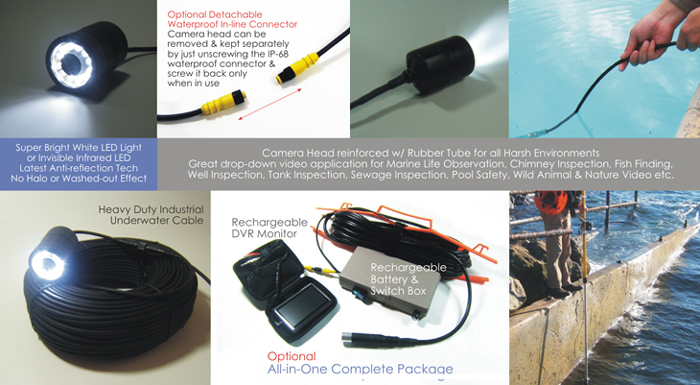

Camera Housing reinforced w/ Rubber Tube Shield for all Harsh Environments
Choose one from the dropdown option box below, then click "Add to Cart" button to check out

Unit
Price
"Review more details about assembled devices listed at the bottom of this page"



Item#

EUC-1015  ---Stock to built-in house & ships out within 3~7 working days---

Description

Ocean Drop Underwater Video Camera on 50ft Cable w/ White LED Light

Item#

EUC-1030  ---Stock to built-in house & ships out within 3~7 working days---

Description

Ocean Drop Underwater Video Camera on 100ft Cable w/ White LED Light

Item#

EUC-1045   ---Stock to built-in house & ships out within 3~7 working days---

Description

Ocean Drop Underwater Video Camera on 150ft Cable w/ White LED Light

Item#

EUC-1070   ---Stock to built-in house & ships out within 3~7 working days---

Description

Ocean Drop Underwater Video Camera on 230ft Cable w/ White LED Light

Item#

ENC-1015M4P1   ---Stock to built-in house & ships out within 3~7 working days---

Description

Ocean Drop Underwater Video Camera on 50ft Cable w/ White LED Light & Complete Option of Standard Video Recording Monitor & Battery Kit

Item#

ENC-1030M4P1   ---Stock to built-in house & ships out within 3~7 working days---

Description

Ocean Drop Underwater Video Camera on 100ft Cable w/ White LED Light & Complete Option of Standard Video Recording Monitor & Battery Kit

Item#

ENC-1045M4P1   ---Stock to built-in house & ships out within 3~7 working days---

Description

Ocean Drop Underwater Video Camera on 150ft Cable & w/ White LED Light & Complete Option of Standard Video Recording Monitor & Battery Kit

Item#

ENC-1070M4P1   ---Stock to built-in house & ships out within 3~7 working days---

Description

Ocean Drop Underwater Video Camera on 230ft Cable & w/ White LED Light & Complete Option of Standard Video Recording Monitor & Battery Kit

Specification:  *Subject to change without prior notice

Image Sensor

Color Sony Super HAD CCD

Lens

Default 3.6mm Board Lens (FOV: - 92 Diagonally)
* Other narrower or wider viewing angle lens is available upon a request w/ customization fee

Max. Depth

Maximum depth can be submerged vertically up to 230ft (70M)

Signal System

NTSC / PAL TV System optional

Camera Compatibility

Compatible with any conventional TV, monitor, or DVR system that equipped with a composite analog video-in connector and requires a conventional USB Analog Video Capture Device when viewing through PC or laptop that is not equipped with a built-in TV or video capture card.

Power up the camera and plug the camera video cable into an available video-in connector on your TV, monitor, or DVR system, you will see the incoming live video instantly and only requires a proper connector if cable connectors do not fit together.

Luminance S/N Ratio

Over 50dB (AGC off)

Gamma Correction

r = 0.45

Electronic Shutter

1/60~1/100,000/Sec

Special Functions

Auto White Balance (AWB) / Auto Backlight Correction (BLC)

LED

Bright White LED

LED Beam Distance

Appx. 50 ~ 60ft in the air and  total darkness when LEDs are turned on @ Max. level

Light Control

* White LED --- Turn On-Off manually w/ Separate LED power connector

* IR LED --- Automatically Turned On-Off controlled w/ Built-in CdS Sensor

Lens Focus

Appx. 3 inches from the camera lens to infinity

Click the right photos to view Real Video Clips

Bridge Inspection Video...<<< Camera unit assembled on the ENC-135 telescopic pole video system and conducted the under bridge video inspection that recorded with EMT-600 portable DVR monitor

Attic Inspection Video...<<< Camera unit assembled on the ENC-135 telescopic pole video system and conducted the crawl attic video inspection that recorded with EMT-600 portable DVR monitor

click to review real video clip...<<< Camera head assembled on ENC-131 telescopic pole system and submerged inside pool at night that recorded with EMT-600 portable DVR monitor

click to download play...<<< Viewed shoreline rocks at dawn that recorded w/ EMT-600 portable DVR monitor

click to view live video...<<< Camera unit assembled on the ENC-135 telescopic pole video system and conducted the rooftop video inspection that recorded with EMT-600 portable DVR monitor

Video Resolution

600 TVL

Video Connector

RCA Plug (BNC Connection Adapter included)

Power Consumption

120mA when LED off ~ 220mA w/ Max. LED Brightness

Minimum Illumination

0.1 LUX when LED off

Cable

Industrial Specification Poly Urethane Insulated

Cable Length

Selectable from 50ft, 100ft, 230ft, or Customized Special Length on request

Camera Housing

* Camera Head stands up 165ft: Aluminum Anodized w/ Heavy Duty Rubber Tube Shielded
* Camera Head stands up to 230ft: Brass w/ Heavy Duty Rubber Tube Shielded

Dimension / Weight

* Camera Head stands up to 165ft: 52 x L68mm (2.05 x 2.64) / 13oz (268g)
*
Camera Head stands up to 230ft: 40 x L62mm (1.58 x 2.44) / 10oz (284g)

Operating Temp.

-10C ~ 50C (14F ~ 122F)

Storage Temp.

-20C ~ 60C

Housing IP Rate

IP-68 (Dust tight & Protected against continuous immersion in water, or specified by the user)

Warranty

One Year Full Warranty including Parts & Labor

Parts Includes

Underwater Camera w/ Selected Cable Length, AC/DC 12V Power Adapter, BNC Connector, Quick Starter Guide, Video Recording Monitor w/ Detachable Sunshade & Camera Rechargeable Battery Kit when ordered optionally

Details of Standard Optional Devices

click to enlarge...

* Detachable IP-68 & NEMA 6P In-line Waterproof Cable Connector
* Easily plugged in and out & screwed to tighten and separate
* For an application where requires installing the cable through narrow cramped space &
   the camera head at the end
* For an application where your system installed in the public accessible area & not safe to
   leave the expensive camera head unattended
* For an application where your system involved with the constant rough mobile
   environment & requires the camera head to protected separately in order to prevent a
   mechanical damage

* 16hr Capacity at LED Light-on in continuous use
*
Rechargeable NiMH DC 12V Battery Kit
* Auto Control Universal 7~12V Smart Charger included
* Click here to review more product details

* Standard Rechargeable Video Recording DVR Monitor
* 5" LCD Screen & 720 x 576 @ 30fps Video Recording Resolution
* All functions controlled manually pressing control buttons
* Long Battery Capacity Built-in 3.7V Rechargeable Battery
* 4GB Micro SD Card included and supports up to 32GB
* Click here to review
more product details

Details of Upgradeable Optional Devices   *** Request for Quote separately ***

* Touch Screen Remote Control Video Recording & Still Photo Shooting DVR Monitor
* 3.6" LCD Screen & 720
x480@16fps or 640480@30fps Video Recording Resolution
* Still Photo Shooting @ 640x480 pixels
* All functions controlled via Touch Screen menu or included Remote Control Unit
* Motion Activated or Manual recording & Date Time Stamp
* 8GB SD Card included & supports up to 32GB or Built-in 160GB Micro HDD for
   Extensive Long video recording.
* Click here to review
more product details

* Watertight, Dustproof, Shockproof, Crushproof, Indestructible Equipment Case.
*
Made for professionals or individuals w/ cameras that must have failure proof protection.
* Fit all your equipment including cameras, batteries, lenses, and cables.
* Highly resistant to chemical and built to perform in the most severe conditions.
* Click here to review more product details
