Ocean Drop All-Purpose Underwater Video Camera w/ Ultra High Video Resolution

Ideal to view unreachable impossible-to-see total-dark and large viewing areas
OK for Saltwater Environments & Professional Marine Life Observation Video

Underwater Athletic Movement, Boat Inspection, Check anchor set, Marine Life observation
Bridge & Dam inspection, Tank inspection, Docks & pier surveillance, Whale Watch, Fish Search
Search & Rescue, Inspect & Monitor Swimming Pool, Swamps, river, & lake watch, Boat inspection
Underwater farm surveillance, Create videos of Underwater Actions, Check crab pots & lobster traps
Exploring shipwreck & submerged objects, Discover treasure, Cave search, Rain forest watch, Storm Watch

Latest Anti-reflection Technology stops all Haze, Washed-out, & Halo effects of LED Light

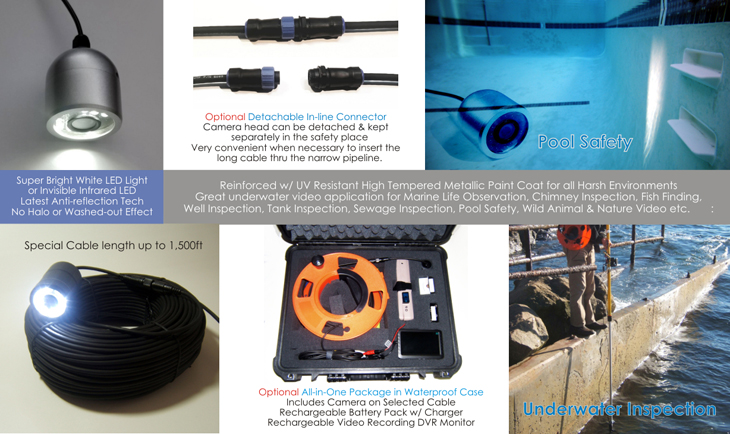

Fish Finding Ocean Drop Underwater Camera --- click to enlarge ---

Easy detachable Camera Head from Cable offers you Convenient & Secure Mobility



Choose one from the dropdown option box below, then click "Add to Cart" button to check out

Unit
Price



Item#

EUC-1015  ---Stock to built-in house & ships out within 3~10 working days---

Description

Ocean Drop Underwater Video Camera on 50ft Cable w/ White LED Light

Item#

EUC-1030  ---Stock to built-in house & ships out within 3~10 working days---

Description

Ocean Drop Underwater Video Camera on 100ft Cable w/ White LED Light

Item#

EUC-1045   ---Stock to built-in house & ships out within 3~10 working days---

Description

Ocean Drop Underwater Video Camera on 150ft Cable w/ White LED Light

Item#

EUC-1075   ---Stock to built-in house & ships out within 3~10 working days---

Description

Ocean Drop Underwater Video Camera on 250ft Cable w/ White LED Light

Item#

EUC-1150   ---Stock to built-in house & ships out within 3~10 working days---

Description

Ocean Drop Underwater Video Camera on 500ft Cable w/ White LED Light

Item#

EUC-1015NR  ---Stock to built-in house & ships out within 3~10 working days---

Description

Ocean Drop Underwater Video Camera on 50ft Cable w/ Invisible 950nm IR LED Light

Item#

EUC-1030NR  ---Stock to built-in house & ships out within 3~10 working days---

Description

Ocean Drop Underwater Video Camera on 100ft Cable Invisible 950nm IR LED Light

Item#

EUC-1045NR   ---Stock to built-in house & ships out within 3~10 working days---

Description

Ocean Drop Underwater Video Camera on 150ft Cable Invisible 950nm IR LED Light

Item#

EUC-1075NR   ---Stock to built-in house & ships out within 3~10 working days---

Description

Ocean Drop Underwater Video Camera on 250ft Cable Invisible 950nm IR LED Light

Item#

EUC-1150NR   ---Stock to built-in house & ships out within 3~10 working days---

Description

Ocean Drop Underwater Video Camera on 500ft Cable Invisible 950nm IR LED Light

Specification: *Subject to change without prior notice

Image Sensor

1/3" Color Sensor

Lens

Default 3.6mm Board Lens (FOV: - 92 Diagonally)

Other narrower or wider viewing angle lens is available upon a request w/ customization fee

Vertical Depth

Maximum depth can be submerged vertically up to 250ft

Signal System

NTSC (* PAL only available w/ an order quantity over 5 units)

Camera Compatibility

Compatible with any conventional TV, monitor, or DVR system that equipped with a composite video-in connector and requires a analog to digital converter when viewing through PC or laptop that is not equipped with a built-in TV or video capture card.

Power up the camera and plug the camera video cable into an available video-in connector on your TV, monitor, or DVR system, you will see the incoming live video instantly and only requires a proper connector if cable connectors do not fit together.

Video Output

1Vp-p Composite Video 75 ohms

Luminance S/N Ratio

Over 50dB (AGC off)

Gamma Correction

r = 0.45

Electronic Shutter

1/60~1/100,000/Sec

Special Functions

Auto White Balance (AWB) / Auto Backlight Correction (BLC)

LED Light

* Invisible 940NM or 950NM IR-LED: Shows no red glow on the tip of IR LED when it turned on and the IR light beam is also   completely invisible to human eyes. It is the best for the complete undetected video surveillance and viewing object in close range in the dark.

*
Strong 850NM IR-LED: Shows red glow on the tip of LED when it's on, but the emitting IR-light beam is invisible to human eye and it produces a longer emitting power than the invisible 950NM IR-LED. It is suitable for the undetected surveillance video and viewing objects that are in long range in the dark.

*
White LED:
The white light beam is seen by human eyes exactly same as what you see from a conventional LED flashlight and it it the best when objects are viewed in color at night as they seen in daylight.

LED Beam Travel Distance in Air

* White LED - Appx. 50~60ft

* 950NM No Red Glow Infrared LED - Appx. 30~40ft

Light Control

* White LED --- Turn On-Off manually w/ Separate LED power connector or Dimmer switch

* IR LED --- Automatically Turned On-Off controlled w/ Built-in CdS Sensor

Lens Focus

Default: Appx. 3 inches from the camera lens to infinity * The focus range cab be customized upon a request w/ customization fee & this will help to view objects in that certain distance range with  the maximum clarity.

Click the right photos to view Real Video Clips

Bridge Inspection Video...<<< Camera unit assembled on the ENC-135 telescopic pole video system and conducted the under bridge video inspection that recorded with EMT-600 portable DVR monitor

Attic Inspection Video...<<< Camera unit assembled on the ENC-135 telescopic pole video system and conducted the crawl attic video inspection that recorded with EMT-600 portable DVR monitor

click to play YouTube video clip...<<< Viewed the shore rocks that are 20~60ft away from the camera lens at night to show how the built-in white LED light sees objects in the dark and recorded with the EMT-600 handheld DVR monitor.

click to view real video clip...<<< Camera unit assembled on the ENC-135 telescopic pole video system and observed a school of Opaleye fish at dawn with EMT-600 portable DVR monitor attached on a pole.

click to view live video...<<< Camera unit assembled on the ENC-135 telescopic pole video system and conducted the rooftop video inspection that recorded with EMT-600 portable DVR monitor

Video Resolution

700 TVL

Video Connector

RCA Plug

Power Consumption

120mA when LED off ~ 220mA w/ Max. LED Brightness

Minimum Illumination

0.1 LUX when LED off

Cable

Industrial Specification Poly Urethane Insulated

Cable Length

Selectable from 50ft ~ 500ft, or Customized Special Length on request

Camera Housing

Aluminum Anodized in Black w/ Rubber Tube Shielded

Dimension / Weight

50 x L65mm (1.97 x 2.56) & 8.8oz (250g)

Operating Temp.

-10C ~ 50C (14F ~ 122F)

Storage Temp.

-20C ~ 60C

Housing IP Rate

IP-68 (Dust tight & Protected against continuous immersion in water, or specified by the user)

Warranty

One Year Full Warranty including Parts & Labor

Parts Includes

Underwater Camera w/ Selected Cable Length, AC/DC 12V Power Adapter, Quick Starter Guide

Optional Devices

click to enlarge...

* 24hr (EUC-1000NR) & 18hr (EUC-1000) Capacity in continuous use
* Rechargeable Li-ion DC 12V Battery w/ Universal AC/DC Charger
* Encased w/ On-off switchable case
* Overcharge & Over-discharge protected circuit

* Standard Rechargeable Video Recording DVR Monitor
* 5" LCD Screen & 720 x 576 @ 30fps Video Recording Resolution
* All functions controlled manually pressing control buttons
* Long Battery Capacity Built-in 3.7V Rechargeable Battery
* 4GB Micro SD Card included and supports up to 32GB
* Click here to review
more product details

* Touch Screen Remote Control Video Recording & Still Photo Shooting DVR Monitor
* 3.6" LCD Screen & 720
x480@16fps or 640480@30fps Video Recording Resolution
* Still Photo Shooting @ 640x480 pixels
* All functions controlled via Touch Screen menu or included Remote Control Unit
* Motion Activated or Manual recording & Date Time Stamp
* 8GB SD Card included & supports up to 32GB or Built-in 160GB Micro HDD for
   Extensive Long video recording.
* Click here to review
more product details
