Seabed Explorer Underwater Camera in Stainless Housing w/ 200M Depth Rate

Ideal for Deep Sea Discovery & Ocean Marine Life Documentary Video
OK for Saltwater & Chemical Pool /  Long Range Night Video in Total Darkness

Underwater Athletic Movement, Boat Inspection, Check anchor set, Marine Life observation
Bridge & Dam inspection, Tank inspection, Docks & pier surveillance, Whale Watch, Fish Search
Search & Rescue, Inspect & Monitor Swimming Pool, Swamps, river, & lake watch, Boat inspection
Underwater farm surveillance, Create videos of Underwater Actions, Check crab pots & lobster traps
Exploring shipwreck & submerged objects, Discover treasure, Cave search, Rain forest watch, Storm Watch

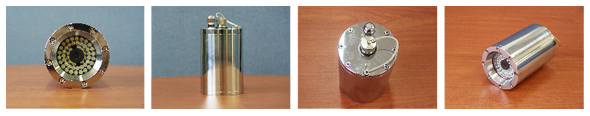

Corrode Free Heavy Duty Stainless Steel Camera Housing armored for all harsh environments

click to enlarge...





    click to enlarge...                                   click to enlarge...





"Coming Soon"

Item#

EUC-6045  --- Preorder to built in house & ships out within 4 ~ 6 WKS ---

Description

Deep Sea Underwater Video Camera w/ 50ft Cable

Item#

EUC-6045M4P1C  --- Preorder to built in house & ships out within 4 ~ 6 WKS ---

Description

Deep Sea Underwater Video Camera w/ 50ft Cable plus Complete Option of Standard Video Recording Monitor & Battery Kit in Pelican Case & Plastic Cable Reel

Item#

EUC-6100  --- Preorder to built in house & ships out within 4 ~ 6 WKS ---

Description

Deep Sea Underwater Video Camera w/ 150ft Cable

Item#

ENC-6100M4P1C  --- Preorder to built in house & ships out within 4 ~ 6 WKS ---

Description

Deep Sea Underwater Video Camera w/ 150ft Cable plus Complete Option of Standard Video Recording Monitor & Battery Kit in Pelican Case & Plastic Cable Reel

Item#

EUC-6200  --- Preorder to built in house & ships out within 4 ~ 6 WKS ---

Description

Deep Sea Underwater Video Camera w/ 300ft Cable

Item#

ENC-6200M4P1C  --- Preorder to built in house & ships out within 4 ~ 6 WKS ---

Description

Deep Sea Underwater Video Camera w/ 300ft Cable plus Complete Option of Standard Video Recording Monitor & Battery Kit in Pelican Case & Steel Cable Reel

Specification: *Subject to change without prior notice

Image Sensor

1/3" Color Sony HAD ll CCD

Video Resolution

700 TVL (520K pixel)

Video Connector

RCA Jack1.0 Vp-p (Sync. Negative) Termination 75+10%

Video Output:

1.0 Vp-p (Sync. Negative) Termination 75+10%

Lens

* Camera head w/ Less than 150ft Cable: 3.6mm Board Lens (FOV - 92 Diagonally)
* Camera head w/ 300ft Cable: 6.0mm Board Lens (FOV - 53 Diagonally)

Lens Focus

Appx. 3 inches from the camera lens to infinity

Signal System

NTSC (* PAL only available w/ an order quantity over 3 units)

*Most of recent HD monitors & DVR are automatically switches and compatible with both NTSC & PAL system, but it would be more affordable for using a NTSC-to-PAL converter or Analog CCTV Video to VGA converter still necessary to covert between PAL & NTSC video in order to use w/ your old monitor.

Signal System

NTSC for USA, Canada, Asian countries etc...
(*Optional: PAL for Eastern Europe & France, etc...)

Sync. Type

Internal

Scanning System

2:1 Interlace

Gamma Characteristic

Y= 0.45typ

S/N Ratio

48dB over at AGC off

Electronic Shutter

1/60 (1/50) ~ 1/100,000/Sec

Special Features

E-D/N, DWDR, AWB, AGC

Camera Compatibility

Compatible with any conventional TV, monitor, or DVR system that equipped with a composite video-in connector and requires a analog to digital converter when viewing through PC or laptop that is not equipped with a built-in TV or video capture card.

Power up the camera and plug the camera video cable into an available video-in connector on your TV, monitor, or DVR system, you will see the incoming live video instantly and only requires a proper connector if cable connectors do not fit together.

Depth Rate

* Camera head w/ Less than 150ft Cable: Vertically up to 165ft
* Camera head w/ 300ft Cable or Longer Cable: : Vertically up to 330ft

Minimum Illumination

0.002 LUX at LED off

LED Type

Super Bright White LED

LED Beam Travel Distance

150ft in Air

Dimension

* Camera head w/ Less than 150ft Cable: 60.5mm x L79mm
* Camera head w/ 300ft Cable: Φ85mm x L115mm

Weight

* Camera head w/ Less than 150ft Cable: 0.45Kg (1LBS)
* Camera head w/ 300ft Cable:
1.3Kg (2.86LBS)

Power Supply

DC 12V1V

Power Consumption

500mA at LED on

Operating
Temperature

-10C ~ 50C (32F ~ 104F) ; Humidity - 10%RH ~ 96%RH

Camera Housing

* Camera head w/ Less than 150ft Cable: 304 Stainless Steel
* Camera head w/ 300ft Cable: 316L Stainless Steel & Aluminum

Special Note:
The 316L & 304 stainless steel & Aluminum, which are widely known as a corrosion free metal and excellent resistance to petroleum products and many acids, but constant exposure of the 316L & 304  stainless steel & Aluminum to chemicals or water containing high level of Sodium Hypochlorite will cause the chromium component on the surface to dissolve. This permits the free iron in the Stainless steel
& Aluminum to react with oxygen to form rust.

In order to prevent oxidizing problem for an underwater camera that intend to install especially in a freshwater pool permanently where containing high concentrated Sodium Hypochlorite, the camera housing must be made of a specific durable plastic including Polycarbonate, Polypropylene, PVC, etc. as our EUC-700 underwater camera series, otherwise our one-year full warranty service wont covered if any of our underwater cameras that made of the 304 stainless steel installed in a pool where containing high Sodium Hypochlorite and corroded.

Housing IP Rate

IP-68 (Dust tight & Protected against continuous immersion in water, or specified by the user)

Cable

* Camera head w/ Less than 150ft Cable: Φ4.5mm Industrial Spec Poly Urethane Insulated
* Camera head w/ 300ft or Longer Cable:
Heavy Duty PVC Jacket Φ9.2mm Coaxial Cable

Cable Reel

* Camera head w/ Less than 150ft Cable: Handheld Plastic Reel

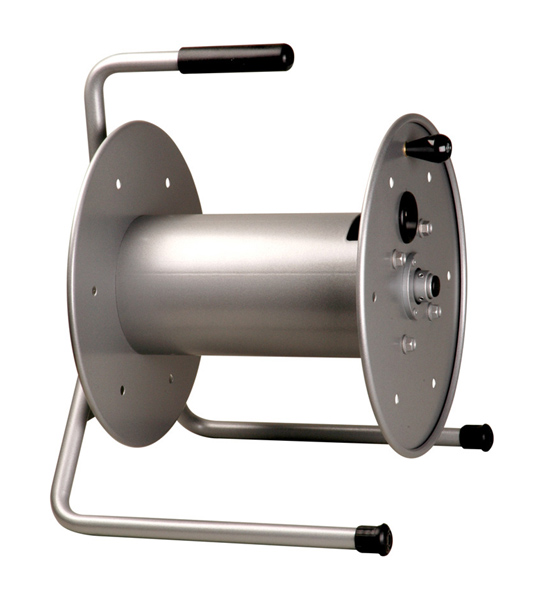

* Camera head w/ 300ft or Longer Cable: Rugged Steel Aluminum Reel

Warranty

One Year Full Warranty including Parts & Labor

Parts Includes

Camera w/ Selected Cable Length, AC/DC 12V Power Adapter, Quick Starter Guide plus Video Recording Monitor & Camera Rechargeable Battery Kit in Switch Box w/ Charger & Battery Tester plus Watertight Pelican Case & Cable Reel when ordered optionally

Details of Default & Optional Devices

* 12hr at LED Light-on in continuous use
* Rechargeable NiMH DC 12V Battery Kit
* Auto Control Universal 7~12V Smart Charger included
* Click here to review more product details

* Standard Rechargeable Video Recording DVR Monitor
* 5" LCD Screen & 720 x 576 @ 30fps Video Recording Resolution
* All functions controlled manually pressing control buttons
* Long Battery Capacity Built-in 3.7V Rechargeable Battery
* 4GB Micro SD Card included and supports up to 32GB
* Click here to review
more product details

* Watertight, Dustproof, Shockproof, Crushproof, Indestructible Equipment Case.
*
Made for professionals or individuals w/ cameras that must have failure proof protection.
* Fit all your equipment including cameras, batteries, lenses, and cables.
* Highly resistant to chemical and built to perform in the most severe conditions.
* Click here to review more product details

Details of Upgradeable Optional Devices   *** Request for Quote separately ***

click to enlarge...

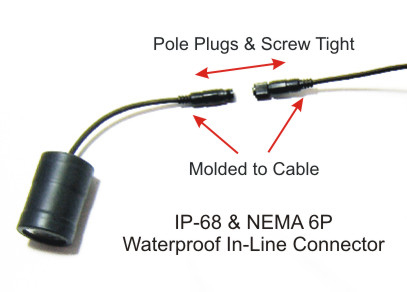

* Detachable IP-68 & NEMA 6P In-line Waterproof Cable Connector
* Easily plugged in and out & screwed to tighten and separate
* For an application where requires installing the cable through narrow cramped space &
   the camera head at the end
* For an application where your system installed in the public accessible area & not safe to
   leave the expensive camera head unattended
* For an application where your system involved with the constant rough mobile
   environment & requires the camera head to protected separately in order to prevent a
   mechanical damage

* Touch Screen Remote Control Video Recording & Still Photo Shooting DVR Monitor
* 3.6" LCD Screen & 720
x480@16fps or 640480@30fps Video Recording Resolution
* Still Photo Shooting @ 640x480 pixels
* All functions controlled via Touch Screen menu or included Remote Control Unit
* Motion Activated or Manual recording & Date Time Stamp
* 8GB SD Card included & supports up to 32GB or Built-in 160GB Micro HDD for
   Extensive Long video recording.
* Click here to review
more product details
